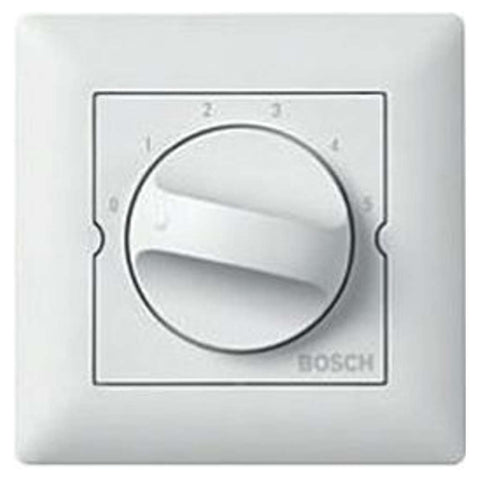

Bosch Sound Volume Controller 36W LBC1410/10

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Features
-
36 Watts
-
Available in power-save or failsafe versions
-
Built-in 24 VDC override relay
-
Continuous rotating system
-
Suitable for 3-wire and 4-wire systems
-
Bosch introduces a full range of volume controls and program selectors to provide a complete public address solution
-
Functions
-
Operation
-
Public address systems are often used for both announcements and background music distribution
-
Volume controls can be used to adjust the level locally
-
In addition to volume control,program selectors can also be installed to select five different programs locally
-
In the event of an (emergency) announcement,the built-in relay ensures that the message is broadcast at a preset level,independent of the local volume setting
-
The volume controls come in three versions according to power rating:12W, 36W,and 100W
-
The total load of the loudspeakers connected to a volume control may not exceed the rated power
-
Each of the three versions is also available in two versions
-
One is a power-saving,4-wire volume override (/10 models),where the override relay is activated during an emergency call
-
The other is a failsafe,4-wire volume override (/20 models),where the override relay is deactivated during an emergency call
-
The design and color are unobtrusive in any interior
-
Ease of installation,operation and reliability is optimized in the design
-
Interconnections
-
Screw connections
Product Specification
Brand | Bosch |
Product Type | Volume Controller |
Product Model | LBC1410/10 |
Electrical | |
Rated Power | 36 W |
Input Voltage | 100 V |
Attenuation Steps | 8 x 3 dB + off |
Frequency Response | 50 Hz to 20 kHz (-1 dB) |
THD | <0.5% |
Current Consumption | 20 mA at 24 VDC |
Environmental | |
Operating Temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
Storage And Transport Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
Relative Humidity | <95% |
Mechanical | |
Color | White (RAL 9010) |
Dimensions (W x H x D) | 87 x 87 x 45.6 mm |
Weight | 227 g |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (MM) – W x H x D | 87 x 87 x 45.6 |
Unit of Measurement | 1 Piece |
Weight | 0.227 kg |
Generic Type | Volume Controller |
Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Country of Origin | India |
