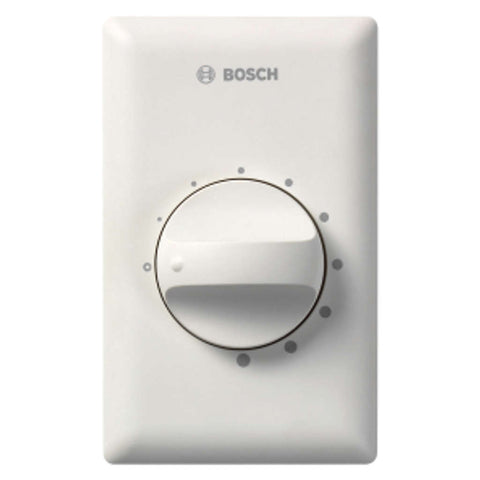

Bosch Volume Control Unit 36W LM1-VC36P-IN

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Features
-
36 W versions
-
Available in Portrait – and Landscape design
-
Suitable for 3-wire and 4-wire override systems
-
Built-in 24 VDC override relay
-
Robust design
-
Public address systems are often used for both announcements and background music distribution
-
Volume controls can be used to adjust the sound level locally
-
In the event of an (emergency) announcement,the built-in relay ensures that the message is broadcast at a preset level,independent of the local volume setting
-
The volume controls are suitable for 3-wire and 4-wire override systems
-
The volume controls are available in 36 W and available in portrait (vertical) design
-
The 36 W volume control features 8 attenuation steps of -3 dB and an off position
-
The intuitive graphics around the knob clearly shows the attenuator steps and off position
Product Specification
Brand | Bosch |
Product Type | Volume Controller |
Product Model | LM1-VC36P-IN |
Electrical | |
Volume Control | 36 W |
Rated Power (PHC) | 36 W |
Input Voltage | 100 V |
Attenuation Steps | 8 x 3 dB + off |
Maximum Allowed Torque On The Switch | 80 Nm |
Frequency Response(-1 dB) | 50 Hz to 20 kHz |
THD | <0.5% |
Connection Terminal | 8-way screw terminal |
Acceptable Wire Gauge ø | 0,8 to 1.6 mm |
Override Relay / Current Consumption | 20 mA at 24 VDC |
Environmental | |
Operating Temperature | -10 ºC to +55 ºC (14 ºF to +131 ºF) |
Storage And Transport Temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
Relative Humidity | <95% |
Mechanical | |
Color | White (RAL 9010) |
Dimensions (W x H x D) | 114 x 70 x 32 mm |
Weight | 270 g |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (MM) – W x H x D | 114 x 70 x 32 |
Unit of Measurement | 1 Piece |
Weight | 0.270 kg |
Generic Type | Volume Controller |
Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
Country of Origin | India |
