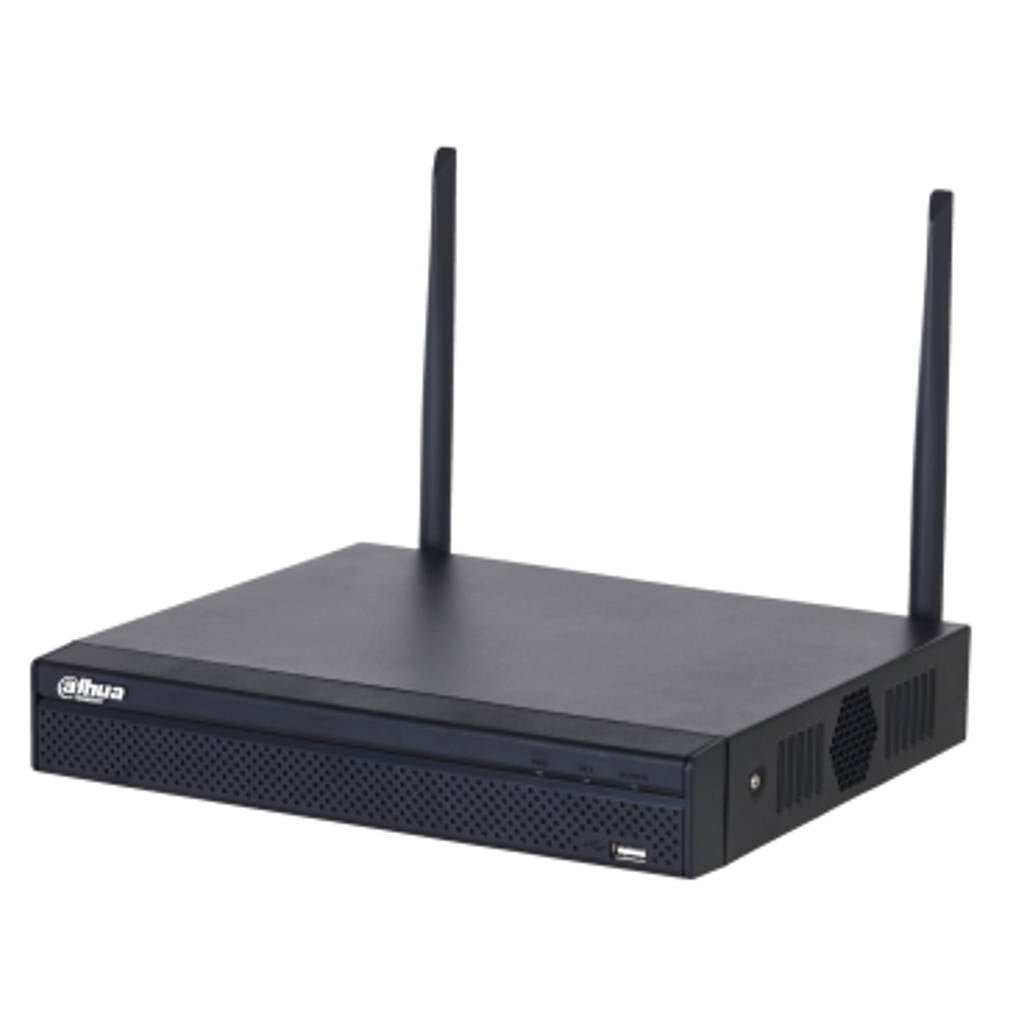

Imou Network Video Recorder 8 Channel 1U 1HDD NVR1108HS-W-S2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
New 4.0 user interface One-click wireless pairing to IPCs
-
Automatic pairing to IPC in 120 s after boot-up under undisturbed conditions
-
Automatic cascading of IPCs for long-distance surveillance
-
4–ch1080P (25FPS), self-adaptive decoding capability
-
Supports mainstream cameras of ONVIF protocol
-
Smart H.265/Smart H.264
-
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
-
Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches
-
DHCP (Dynamic Host Configuration Protocol), HTTP (Hypertext TransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System)
-
Series Overview
-
With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras
-

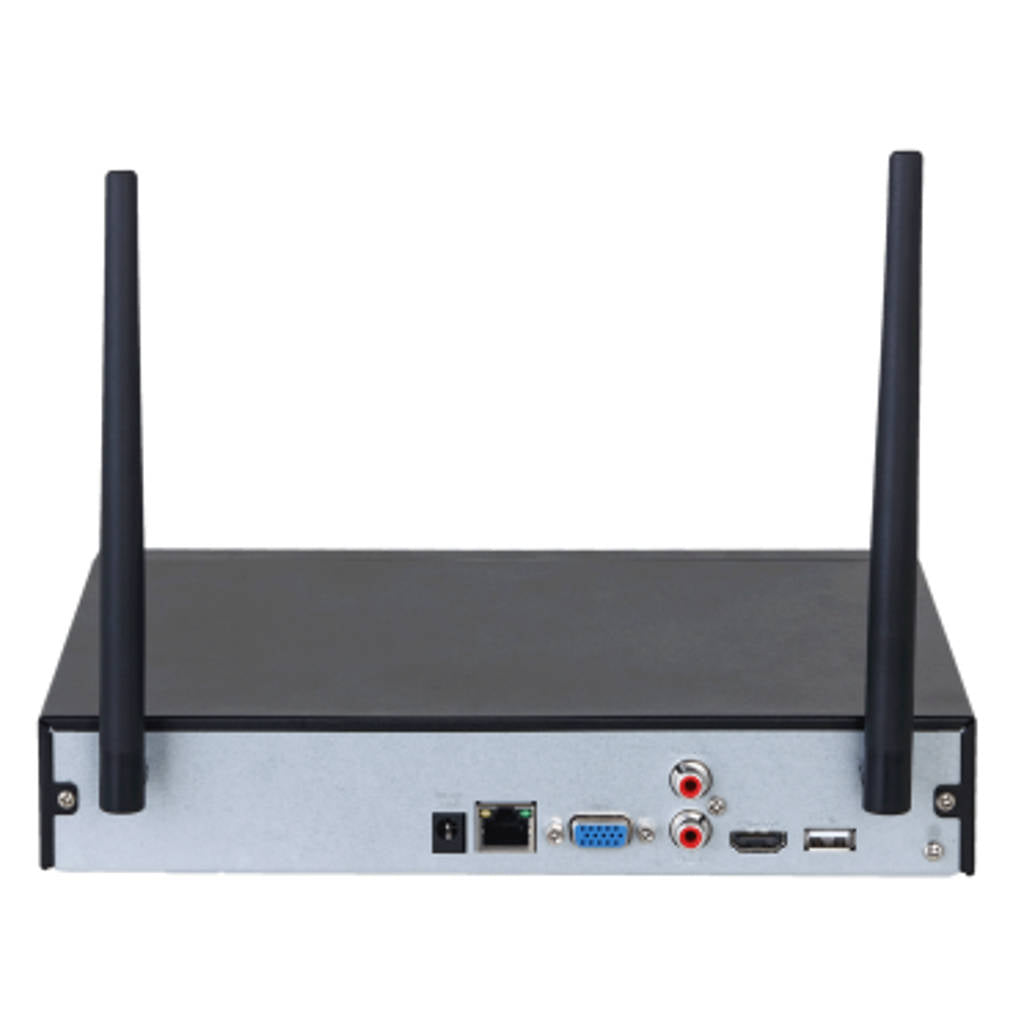

It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which
allows it to cover a wider area -
This NVR also supports the access of IP cameras, making installation more convenient
-
Without the limitation of network cables, the wireless recorder combined with the Dahua wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries
-
New User Interface
-
Highly user friendly, the new web interface and GUI have a minimalist flat design, that makes navigating the system much easier
-
The functional modules have also been arranged to be clearer and easier to understand
-
Automatic Wireless Pairing
-
In just 120 seconds, the wireless NVR automatically pairs with the wireless IPC after the system starts up, allowing you to work faster and more efficiently
-
Wireless Cascading
-
The wireless NVR automatically cascades IPCs for long-distance surveillance
Product Specification
| Brand | Imou |
| Product Type | Netwok Video Recorder |
| Product Code | NVR1108HS-W-S2 |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Access Channel | 8 Channels |
| Network Bandwidth | Wired mode: 40 Mbps incoming, 40 Mbps recording and 20 Mbps outgoing Wireless mode: 16 Mbps incoming, 16 Mbps recording |
| Resolution | 6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1 |
| Decoding Capability | 1-Channel 6 MP@25 fps; 1-Channel 5 MP@25 fps; 2-Channel 4 MP@25 fps; 2-Channel 3 MP@25 fps; 4-Channel 1080p@25 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-Screen Display | 1, 4, 8, 9 views |
| Third-party Camera Access | Onvif |
| Video Compression | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
| Audio Compression | PCM; G711A; G711U; G726 |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P |
| Mobile Phone Access | AndROId; iOS |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Browser | Chrome; IE 9 or later; Firefox |
| Multi-Channel Playback | Up to 8 Channels |
| Record Mode | Manual record; alarm record; motion detection record; schedule record |
| Storage Method | Local HDD and network |
| Backup Method | USB device |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (motion detection) |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; tour |
| Audio Input | 1 |
| Audio Output | 1 |
| HDD Interface | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
| Packaging Dimensions | 372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications | CE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE- RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C |
| Dimensions | 260.3 × 247.3 × 44.7 mm |
| Weight | 1.56 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel NVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
