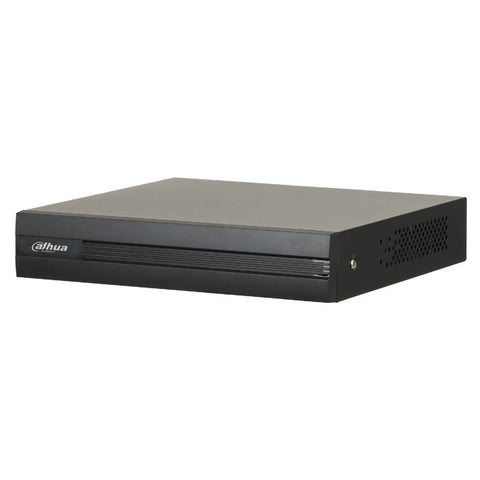

Dahua Network Video Recorder 8 Channel Cooper 1U H.265 DHI-NVR4B08HC/E
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265+/H.264+ codec decoding
-
Max 40Mbps/20Mpbs incoming/outgoing bandwidth
-
Max 4/8 channel IP camera inputs
-
Up to 6MP resolution preview&playback
-
Up to 1ch@6MP/4ch@1080P 25fps decoding
-
HDMI/VGA simultaneous video output
-
Functions
-
Smart H.265+
-
Automatic Network Replenishment (ANR) Technology
-
DMSS
Product Specification
|
Brand |
Dahua |
|
Product Type |
Network Video Recorder |
|
Product Model |
DHI-NVR4B08HC/E |
|
System |
|
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
Audio And Video |
|
|
IP Camera Input |
8 Channel |
|
Two-Way Talk |
N/A |
|
Display |
|
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720 |
|
Decoding Capacity |
1ch@6MP 30fps, 4ch@1080P 25fps |
|
Multi-Screen Display |
8CH: 1/4/8/9 |
|
OSD |
Camera title, Time, Camera lock, Motion detection, Recording |
|
Recording |
|
|
Compression |
H.265+/H.264+ |
|
Resolution |
6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. |
|
Record Rate |
40Mbps |
|
Bit Rate |
16Kbps ~ 20Mbps Per Channel |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection And Alarm |
|
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips |
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), and Tampering |
|
Alarm Input |
N/A |
|
Relay Output |
N/A |
|
Playback And Backup |
|
|
Sync Playback |
8CH: 1/4/9 |
|
Search Mode |
Time /Date, MD and Exact Search (accurate to second) |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
|
Backup Mode |
USB Device/Network |
|
Third-Party Support |
Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
|
Network |
|
|
Interface |
1 RJ-45 port (10/100Mbps) |
|
Network Function |
HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|
Optical Fiber Interface |
N/A |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF ,SDK, CGI Conformant |
|
Storage |
|
|
Internal HDD |
1 SATA III Port, up to 4TB capacity for each HDD |
|
HDD Mode |
Single |
|
Esata |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 ports (2 Rear USB2.0) |
|
RS232 |
N/A |
|
RS485 |
N/A |
|
Electrical |
|
|
Power Supply |
Single, DC12V/1.5A |
|
Power Consumption |
<2.57W (Without HDD) |
|
Environmental |
|
|
Operating Conditions |
-10°C ~ +45°C (+14°F ~ +113°F), 86 ~ 106kpa |
|
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|
Certifications |
|
|
CE |
EN55032, EN55024, EN50130-4, EN60950-1 |
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
Construction |
|
|
Dimensions(W×D×H) |
Cooper 1U, 197mm×196.6mm×41.5mm (7.76" x 7.74" x 1.63") |
|
Net Weight |
1.15 kg (2.54 lb) (Without HDD) |
|
Gross Weight |
1.65kg(3.64 lb)(Without HDD) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel NVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
