Out of Stock!
SKU # 1000083007

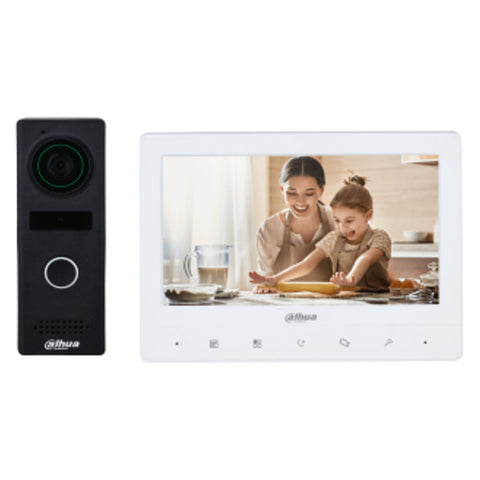

Dahua Video Intercom Kit DHI-KTA02M

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
7" TFT screen
-
Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring
-
System Capacity:2 door stations + 3 indoor monitors
-
Multiple bell sounds
-
Support digital wide dynamic range (DWDR)
Product Specification
Brand |
Dahua |
Product Type |
Video Intercom Kit |
Model |
DHI-KTA02M |
DHI-VTH1020J |
|
System |
|
Button Type |
Touch button |
Basic |
|
Display |
7.0" TFT |
Resolution |
1024 × 600 |
Indicator Light |
1 indicator light; Green: Power on |
Function |
|
Communication Method |
Analog |
Performance |
|
Casing |
PC + ABS |
General |
|
Color |
White |
Power Supply |
DC 12V/1A |
Power Adapter |
Included |
Installation |
Surface mount |
Certifications |
CE/FCC |
Accessory |
Bracket (included) |
Dimensions |
133.90 mm × 182.70 mm × 17.70 mm (5.27" × 7.19" × 0.70") |
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
Operating Humidity |
10%RH–95%RH |
Power Consumption |
≤ 2W (standby) ≤ 5W (working) |
Net Weight |
0.25 kg (0.55 lb) |
Gross Weight |
0.48 kg (1.05 lb) |
DHI-VTO1000JM |
|
System |
|
Button Type |
Mechanical |
Basic |
|
Camera |
1/4" 1.3 MP CMOS |
Field of View |
Horizontal: 70° Vertical: 40° |
WDR |
DWDR |
Illuminator Type |
Auto IR |
Day/Night |
ICR auto switch |
Audio Input |
1 channel to the microphone; pickup distance 0.5 m |
Audio Output |
1 channel to the speaker |
Indicator Light |
1 indicator light; Green: Power on |
Function |
|
Communication Method |
Analog |
Unlock Mode |
Remote unlock |
Performance |
|
Casing |
ADC12 |
Port |
|
Unlock Button |
1 |
Door Status Detection |
1 |
General |
|
Color |
Black |
Power Supply |
Powered by indoor monitor |
Installation |
Surface mount |
Certifications |
CE/FCC |
Accessory |
Rain cover (included) |
Protection Grade |
IK07;IP66 (Apply silicon sealant to gaps between the device and the wall Liquid sodium silicate is recommended For details, see the quick start guide) |
Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
Operating Humidity |
10%RH–95%RH |
Power Consumption |
≤ 1W (standby) ≤ 3W (working) |
Dimensions |
131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33") |
Net Weight |
0.18 kg (0.40 lb) |
Gross Weight |
0.40 kg (0.84 lb) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Video Intercom Kit |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
