SKU # 1000096992

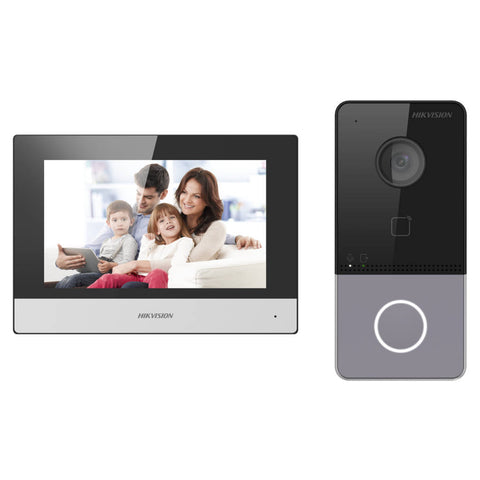

Hikvision Video Intercom Villa Door Station Bundle DS-KIS603-P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Villa Door Station
-
Standard PoE
-
2 MP HD camera
-
Noise suppression and echo cancellation
-
Low illumination
-
Access control functions
-
Tamper-proof
-
Configuration remotely via Web
-
Network Indoor Station
-
7-inch colorful touch screen with resolution 1024 × 600
-
Standard PoE
-
Stores messages and captured pictures in the TF card
-
Remote unlocking via the client software or the mobile Client
-
Views live videos of door stations and linked cameras
-
Supports wireless network
Product Specification
Brand |
Hikvision |
Product Type |
Video Intercom |
Product Code |
DS-KIS603-P |
Villa Door Station |
|
System Parameters |
|
Operation System |
Embedded Linux operation system |
Operation Method |
Single-button |
Flash |
32 M |
Ram |
256 M |
Video Parameters |
|
Camera |
2MP HD camera |
Night Vision |
Low illumination IR supplement mode:3 m |
Blc |
Support |
Dnr |
Support |
Wdr |
True WDR |
Field Of View |
Horizontal: 129° Vertical: 75° |
Video |
|
Compression Standard Stream |
H.264 |
Resolution |
Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
Motion Detection |
Support |
Anti-Flicker Frequency |
50 Hz, 60 Hz |
Audio Parameters |
|
Audio Intercom |
Two-way audio communication |
Audio Input |
Built-in omnidirectional microphone |
Audio Output |
Built-in loudspeaker |
Audio Compression Standard |
G.711 U |
Audio Compression Rate |
64 Kbps |
Audio Quality |
Noise suppression and echo cancellation |
Network Parameters |
|
Wired Network |
10/100 Mbps Ethernet |
Network Protocol |
TCP/IP, RSTP |
Access Control Para |
meters |
Reading Frequency |
13.56 MHz |
Card Type |
Mifare card |
Relay |
1 |
Interfaces |
|
Rs-485 |
1 |
Wi-Fi |
2.4G Wi-Fi |
Debugging Port |
1 |
Tf Card |
0 |
Alarm Input |
4 |
Grounding |
1 |
Physical Button |
1 |
Tamper Switch |
1 |
General |
|
Protection Level |
IP65 |
Indicator |
2 |
Power Supply |
IEEE802.3af, standard PoE 12 VDC |
Power Consumption |
< 10 W |
Working Temperature |
-40° C to +60° C(-40° F to 140° F) |
Working Humidity |
10% to 95% |
Installation |
Surface mounting |
Dimension |
138 mm × 65 mm × 27 mm |
Indoor Station |
|
System Parameters |
|
Memory |
128 MB |
Flash |
32 MB |
Operation System |
Embedded Linux operation system |
Display Parameters |
|
Display Screen |
7-inch colorful TFT screen |
Display Resolution |
1024 × 600 |
Operation Method |
Capacitive touch screen |
Audio Parameters |
|
Audio Input |
Built-in omnidirectional microphone |
Audio Output |
Built-in loudspeaker |
Audio Compression Standard |
G.711 U |
Audio Compressionrate |
64 Kbps |
Audio Quality |
Noise suppression and echo cancellation |
Network Parameters |
|
Wired Network |
10/100 Mbps self-adaptive |
Wireless Network |
Wi-Fi 802.11 b/g/n |
Network Protocol |
TCP/IP, SIP, RTSP |
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive |
Interfaces |
|
Alarm Input |
8-ch alarm inputs |
Relay Output |
2 |
Tf Card |
Max to 32 G, SD 2.0 or lower version |
Rs485 |
1 |
General |
|
Power Supply |
IEEE802.3af, standard PoE 12 VDC/1 A |
Power Consumption |
≤ 6 W |
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity |
10% to 90% |
Dimensions |
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
Weight |
1.599 kg |
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Video Intercom Kit |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
