SKU # 1000006778

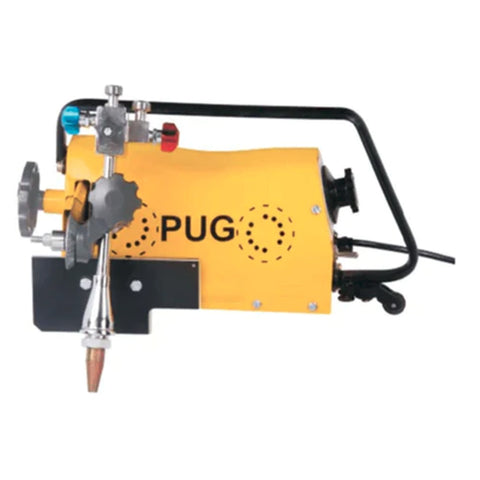

Esab Pug Cutting Machine With Rail Track
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description:
Special Features :
-
Easy to handle
The Machines are light weight, and they have a wrap round handle for easy portability and protection.
-
Body
Made of pressed steel with wrap/round handle and fibre glass heat deflector.
-
Versatile
Using extendable tracks, these machines can produce straight cuts on any length, square or bevel edge. With the same precision these machines can cut circles and also shape with gradual curves, when hand-guided.
-
Circle Cutting
Can be done with the use of circle cutting attachments, supplied as optional extra. This can be easily attached to the machines by two screws.
-
Cutter
Injector type, specially designed to prevent backfire.
-
Cutter adjustment
Can be Swivelled to cut levels up to 45 ° with Rack and Pinion.
-
Fuel Gas
Acetylene or LPG can be used by selecting the appropriate nozzles. Two nozzles for use with Acetylene for cutting MS from 6 mm to 75 mm thickness supplied along with the machine. Cutter types and sizes are available as optional extras.
-
Motor
Machine are fitted with 220 volts Fractional Horse Power geared reversible motors.Power is fed through a Forward-Reverse toggle Switch.
-
Track
1.8 meter long Aluminium Track can be supplied. The PUG Machines may be set to follow the edge of any straight piece of metal, 8 x 20 mm.
* NOTE: Warranty for this product from Manufacturer is 6 Months.
Product Specification:
Cutting Capacity |
|
Square Cuts |
Upto 75 mm thick MS |
Bevel cuts (Upto 45°) |
Upto 50 mm thick MS |
Circles |
75-1140 mm diameter |
Cutting Speed |
190-800 mm/min |
Cutter |
IMC-3 Injector type |
Speed Control |
Rotary resistance |
Gas Hose Connections (for 5 mm Hose) |
1/4" BSP RH & LH |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Gas Cutting Machines |
Manufacturer Details |
ESAB India Limited, G-22, SIPCOT Industrial Park, Pennalur Post, Sriperumbudur Taluk, Irungattukottai, Chennai, Kanchipuram, Tamil Nadu 602105 |
Packer Details |
ESAB India Limited, G-22, SIPCOT Industrial Park, Pennalur Post, Sriperumbudur Taluk, Irungattukottai, Chennai, Kanchipuram, Tamil Nadu 602105 |
Country of Origin |
India |
