LAST SOLD AT ₹ 28,500.00
SKU # 1000111783

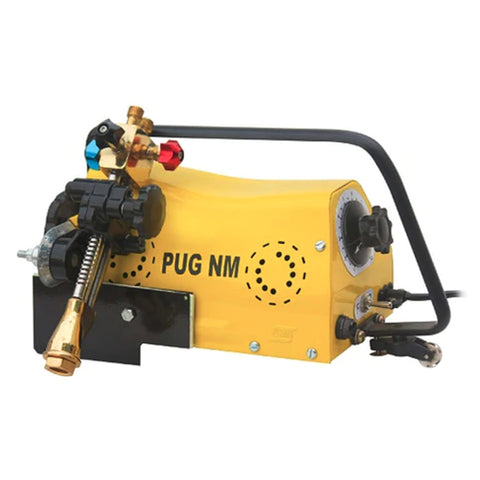

Esab Pug NM Cutting Machine 100mm
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
PUG NM cutting machine used for straight line as well as circle cutting also
-
It moves on its own track for straight line cutting and performs circle cutting with the help of circle cutting attachment
-
This machine is compatible with Nozzle Mix torch
-
Easy To Handle
-
The Machines are light weight, and they have a wrap round handle for easy portability and protection
-
Body
-
Made of pressed steel with wrap/round handle and fibre glass heat deflector
-
Versatile
-
Using extendable tracks, these machines can produce straight cuts on any length, square or bevel edge
-
With the same precision these machines can cut circles and also shape with gradual curves, when hand-guided
-
Circle Cutting
-
Can be done with the use of circle cutting attachments, supplied as optional extra
-
This can be easily attached to the machines by two screws
-
Cutter
-
Nozzle Mixing Type,Laser Technology Much Safer
-
Cutter Adjustment
-
Can be Swivelled to cut levels up to 45 ° with Rack and Pinion
-
Fuel Gas
-
Acetylene or LPG can be used by selecting the appropriate nozzles
-
Two nozzles for use with Acetylene for cutting MS from 6 mm to 75 mm thickness supplied along with the machine
-
Cutter types and sizes are available as optional extras
-
Motor
-
Machine are fitted with 220 volts Fractional Horse Power geared reversible motors.Power is fed through a Forward-Reverse toggle Switch
-
Track
-
1.8 meter long Aluminium Track can be supplied
-
The PUG NM Machines may be set to follow the edge of any straight piece of metal, 8 x 20 mm
ProductSpecification
Brand | Esab |
Product Type | Cutting Machine |
Product Model | Pug NM |
Cutting Capacity | 100 mm |
Square Cuts | Upto 100 mm Thick MS |
Bevel Cuts (Upto 45°) | Upto 75 mm Thick MS |
Circles | 75-1140 mm Diameter |
Cutting Speed | 190-800 mm/min |
Cutter | NM Type |
Speed Control | Rotary resistance |
Gas Hose Connections (For 5mm Hose) | 1/4" BSP RH & LH |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Gas Cutting Machines |
Manufacturer Details |
ESAB India Limited, G-22, SIPCOT Industrial Park, Pennalur Post, Sriperumbudur Taluk, Irungattukottai, Chennai, Kanchipuram, Tamil Nadu 602105 |
Packer Details |
ESAB India Limited, G-22, SIPCOT Industrial Park, Pennalur Post, Sriperumbudur Taluk, Irungattukottai, Chennai, Kanchipuram, Tamil Nadu 602105 |
Country of Origin |
India |
