Out of Stock!

SKU # 1000071604

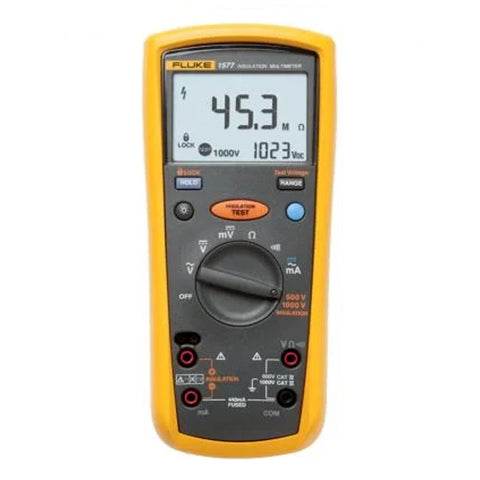

Fluke Insulation Multimeter 1577

Fluke Insulation Multimeter 1577

Visit the Fluke Store

₹ 75,570.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Insulation test voltages 500 V, 1000 V

  • Insulation test: 0.1 MΩ to 600 MΩ

  • Auto discharge of capacitive voltage

  • AC/DC Voltage

  • DC millivolts

  • AC/DC milliamps

  • Resistance (0.1 Ω to 50 MΩ)

  • Continuity

  • Three-year warranty

  • Remote probe, test leads, alligator clips

  • Rugged, utility hard case

  • Auto power off to save battery power

  • True RMS

  • Large display with backlight

  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection

  • CAT III 1000V, CAT IV 600V measurement category

  • Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work

Product Specification

Brand

Fluke

Product Type

Insulation Multimeter

Product Model

1577

Voltage DC

Maximum Voltage

1000 V

Accuracy

±(0.2%+2)

Maximum Resolution

0.001 V

Voltage AC

Maximum Voltage

1000 V

Accuracy

±(2%+3)

Maximum Resolution

0.1 mV

Current DC

Maximum Amps

400 mA

Accuracy

±(1.0%+2)

Maximum Resolution

0.01 mA

Current AC

Maximum Amps

400 mA

Amps Accuracy

±(2.0%+2)*

Maximum Resolution

0.01 mA

Resistance

Maximum Resistance

50 MΩ

Accuracy

±(1.2%+2)

Maximum Resolution

0.1Ω

Insulation Test

Minimum Test Current @ 1kΩ/V

1 mA

Test Voltages

500, 1000 V

Maximum Resistance Per Test Voltage

50 V

100 V

250 V

500 V

1000 V

600 MΩ

Maximum Resolution Per Test Voltage

50 V

0.01 MΩ

100 V

0.01 MΩ

250 V

0.1 MΩ

500 V

0.1 MΩ

1000 V

0.1 MΩ

Accuracy Per Test Voltage

50 V

±(3% + 5)

100 V

±(3% + 5)

250 V

±(1.5% + 5)

500 V

±(2.0% + 5)

1000 V

±(2.0% + 5)

Environmental Specifications

Operating Temperature

20°C to +55°C

Storage Temperature

-40°C to +60°C

Humidity (without Condensation)

0% - 95% (10°C – 30°C)
0% - 75% (30°C – 40°C)
0% - 40% (40°C – 55°C)

Operating Altitude

2000 m

General

IEC 61010-1: Pollution Degree 2

Measurement

IEC 61010-2-033: CAT IV 600V / CAT III 1000V

Size

203 x 100 x 50 mm (with holster)

Battery Life Alkaline

Meter Use

1000 Hours

Insulation Test Use

Meter Can Perform At Least 1000 Insulation Tests With Fresh Alkaline Batteries At Room Temperature

These are Standard Tests of 1000 V into 1 MΩ With A Duty Cycle Of 5 Seconds On And 25 Seconds Off

IP Rating

IP40

Weight

624 g

Warranty

3 Years


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Multimeters

Manufacturer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Packer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Country of Origin

India
