Out of Stock!
SKU # 1000071583

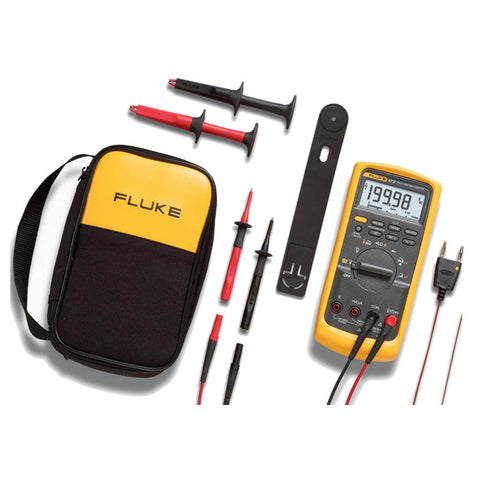

Fluke Multimeter Kit 87V /E2

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Fully insulated 3 mm exposed metal test probes for electricians working in high energy environments
-
C35 Soft Carrying Case holds meter, test leads and other accessories
-
TPAK magnetic hanging strap lets you attach the meter to any ferrous surface, such as cabinets and iron pipes
-
Advanced Measurement Functions
-
True-rms ac measurements
-
0.05% dc accuracy
-
6,000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution
-
10 A ac or dc (with test leads and current jacks) with 0.1 μA resolution
-
Temperature measurements up to 1090 °C with included thermocouple probe
-
Provides 10,000 µF capacitance range for components and motor caps
-
Provides peak capture and Min/Max/Avg recording to capture intermittent as short as 250 µS
-
Easy access door for fast battery changes without breaking the calibration seal
-
Fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
-
Presents a large digit display with bright, two-level backlight for easier reading in low light
-
Includes an analog bar graph for fast changing or unstable signals
-
Auto and manual ranging for maximum flexibility
-
Relative mode to calculate and display difference between two readings
-
Holds readings on display for safe viewing after removing probes using Touch Hold technology
Product Specification
Brand |
Fluke |
|
Product Type |
Multimeter Kit |
|
Product Model |
87V/E2 |
|
Voltage DC |
Maximum Voltage |
1000 V |
Accuracy |
±(0.05% + 1) |
|
Maximum Resolution |
10 µV |
|
Voltage AC |
Maximum Voltage |
1000 V |
Accuracy |
±(0.7% + 2) True RMS |
|
AC Bandwidth |
20 kHz With Low Pass Filter; 3 db @ 1 kHz |
|
Maximum Resolution |
0.1 mV |
|
Current DC |
Maximum Amps |
10 A (20 A for 30 Seconds Maximum) |
Amps Accuracy |
±(0.2% + 2) |
|
Maximum Resolution |
0.01 µA |
|
Current AC |
Maximum Amps |
10 A (20 A for 30 Seconds Maximum) |
Amps Accuracy |
±(1.0% + 2) True RMS |
|
Maximum Resolution |
0.1 µA |
|
Resistance |
Maximum Resistance |
50 MΩ |
Accuracy |
±(0.2% + 1) |
|
Maximum Resolution |
0.1Ω |
|
Capacitance |
Maximum Capacitance |
9,999 µF |
Accuracy |
±(1% + 2) |
|
Maximum Resolution |
0.01 nF |
|
Frequency |
Maximum Frequency |
200 kHz |
Accuracy |
±(0.005% + 1) |
|
Maximum Resolution |
0.01 Hz |
|
Duty Cycle |
Maximum Duty Cycle |
99.9% |
Accuracy |
±(0.2% per khz +0.1%) |
|
Maximum Resolution |
0.1% |
|
Temperature Measurement |
–200.0
°C – 1090 °C |
|
80 BK Temperature Probe |
–40.0
°C – 260 °C |
|
Conductance |
Maximum Conductance |
60.00 nS |
Accuracy |
±(1.0% + 10) |
|
Maximum Resolution |
0.01 nS |
|
Diode |
Range |
3 V |
Resolution |
1 mV |
|
Accuracy |
±(2% + 1) |
|
Duty Cycle Range |
Accuracy |
Within ±(02% per kHz +0.1%) |
Environmental Specifications |
||
Operating Temperature |
–20 °C to + 55 °C |
|
Storage Temperature |
–40 °C to + 60 °C |
|
Humidity (without Condensation) |
0%
– 90% (0 °C – 35 °C) |
|
Operating Altitude |
2000 m |
|
Display |
Digital |
6000
Counts Updates 4/Sec |
Analog |
32 Segments, Updates 40/Sec |
|
Frequency |
19,999 Counts, Updates 3/sec at > 10 Hz |
|
Size |
201 x 98 x 52 mm (With Holster) |
|
Battery Life |
Alkaline~400 Hours Typical, Without Backlight |
|
Shock |
1 Meter Drop Per IEC 61010–1:2001 |
|
Vibration |
Per MIL–PRF–28800 for a Class 2 Instrument |
|
Overvoltage Category |
EN 61010–1 to 1000 V CAT III, 600V CAT IV |
|
Agency Approvals |
CE, CSA, RCM |
|
Weight |
355
g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Multimeters |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
