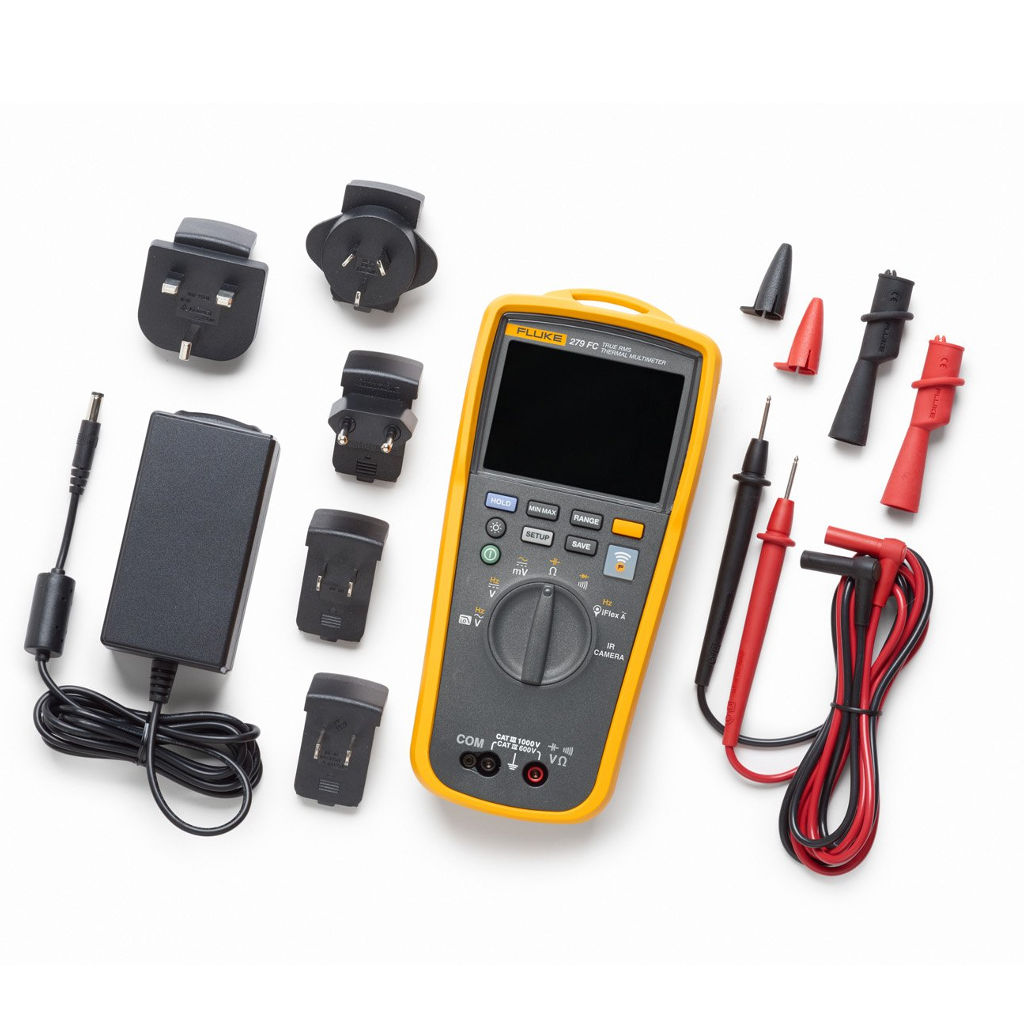

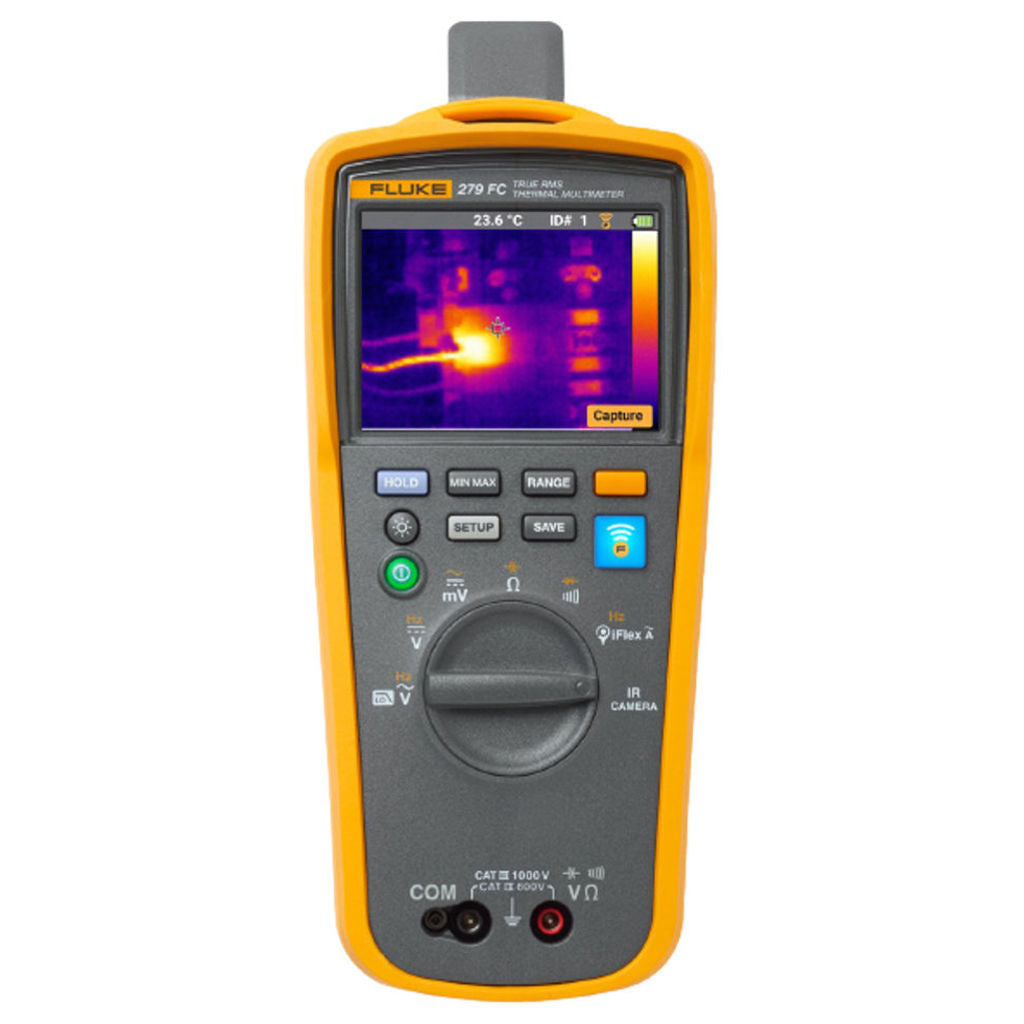

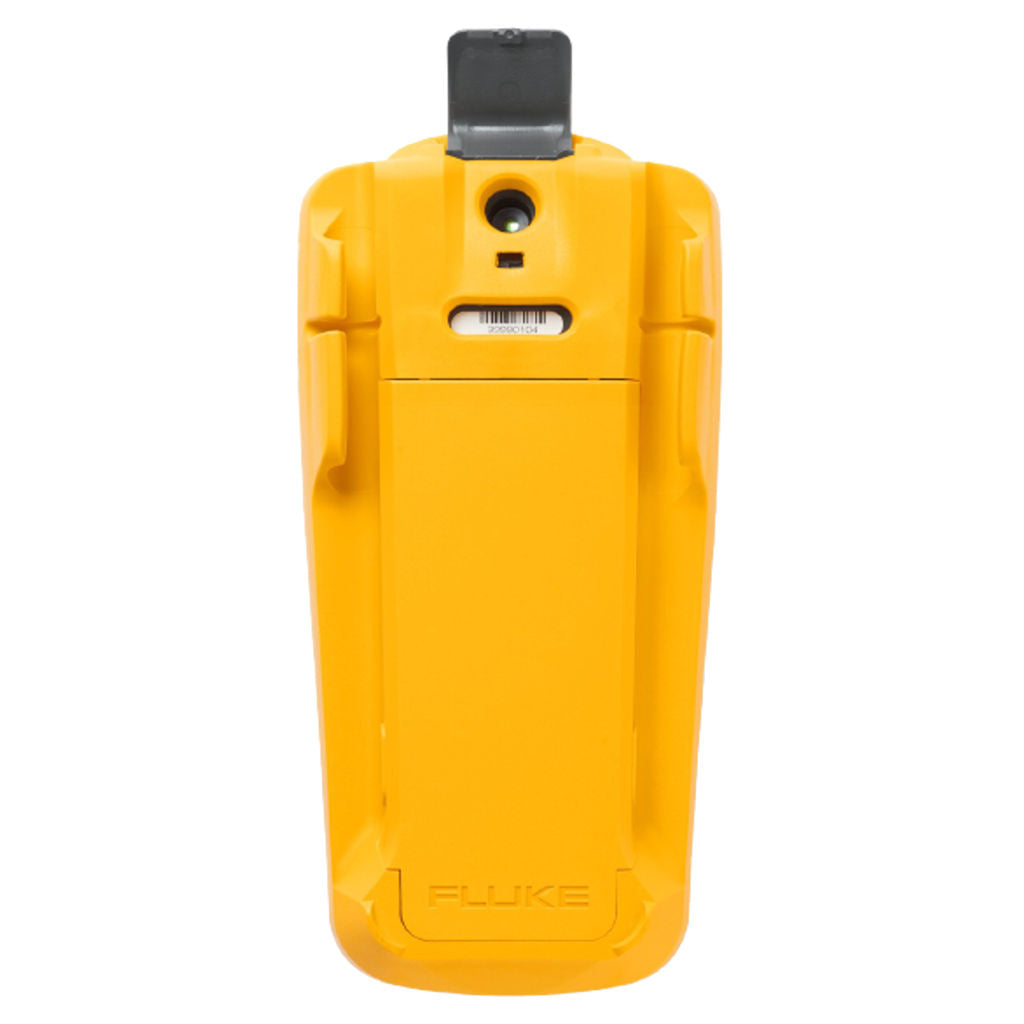

Fluke True-RMS Thermal Multimeter 279 FC
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Full-featured multimeter with built-in thermal imager
-
15 measurement functions including: voltage ac and dc, resistance, continuity, capacitance, diode test, Min/Max/Avg, current ac with included iFlex current probe, frequency
-
Low-pass filter for troubleshooting adjustable speed drives
-
Thermal imaging reveals hots spots that may indicate electrical issues quickly and safely
-
Two-in-one tool is designed to increase productivity – no need to go back to the truck or office to retrieve a shared camera – so you can do more in less time!
-
iFlex expands your measurement capabilities – get into tight, hard to reach spaces for current measurement (up to 2500 A ac)
-
Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
-
102x77 image resolution offers immediate visual cues of hot, potentially troublesome areas
-
3.5 in /8.89 cm color LCD screen
-
Rechargeable lithium ion battery allows for a for a full work day (10+ hours) under normal conditions; a second battery option means you will always have a battery ready to install.
-
Assembled in the USA
-
Three year standard warranty
-
Auto power off to save battery power
-
CAT III 1000 V, CAT IV 600 V measurement category
-
Designed for durability, built to withstand a 1 m (3 ft) drop, double insulated with raised rubber holster for increased protection
Product Specification
|
Brand |
Fluke |
|
Product Type |
Thermal Multimeter |
|
Product Model |
279 FC |
|
DMM |
|
|
Basic DC Accuracy |
0.09% |
|
Bandwidth |
1% 45 Hz to 65 Hz, Full Time Low Pass Filter |
|
Voltage |
AC/DC 1000 V |
|
Current AC |
2500 A with included iFlex Flexible Current Probe |
|
Resistance |
50 MΩ |
|
Frequency |
100 kHz |
|
Capacitance |
9,999 µF |
|
Continuity With Beeper |
Yes |
|
Diode Test |
Yes |
|
Min/Max Recording |
Yes |
|
Display Hold |
Yes |
|
Infrared Camera |
|
|
Infrared Resolution |
102 x 77 |
|
Image Capture Frequency |
8 Hz |
|
Field of View |
36° (w) x 27° (h) |
|
NETD |
≤200 mK |
|
Infrared Spectral Band |
7.5 to 14 Microns |
|
Center Point |
Yes (With Center Point Temp) |
|
Focus Mechanism |
Fixed focus |
|
Temperature Range (selectable °C and °F) |
-10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (9 °F) or (±5% as tested) |
|
Emissivity |
0.95 fixed |
|
Background Compensation |
20 °C fixed |
|
Memory Storage |
Approximately 100 Images (internal) |
|
File Format |
Non-Radiometric .is2 |
|
General Specifications |
|
|
Battery Type |
Rechargeable Lithium Ion Battery (charge Time: 4.5 Hours) |
|
Operating Temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
|
Storage Temperature |
-20 ºC to 60 ºC (-4 °F to 140 °F) |
|
Relative Humidity |
0%
to 90% (0 °C to 35 °C) (32 °F to 95 °F) |
|
Altitude |
2,000 Meters (6,561 Feet) |
|
Temperature Coefficient |
Add 0.1 x Specified Accuracy For Each °C above 28 °C or below 18°C (°F above 82 °F or below 64° F) |
|
Ingress Protection |
(IP) IP40 (non-operating) |
|
Wireless Frequency |
2.4 GHz ISM Band, 20 Meter Range |
|
Certifications |
CE, CSA, FCC |
|
Safety Compliance |
IEC 61010-1: Pollution Degree 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V |
|
EMC |
EN 61326-1:2012 |
|
Size |
215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in) |
|
Weight |
0.793 kg (1.75 lb) |
|
Warranty |
Three-Year Warranty |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Infrared Thermometers |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
