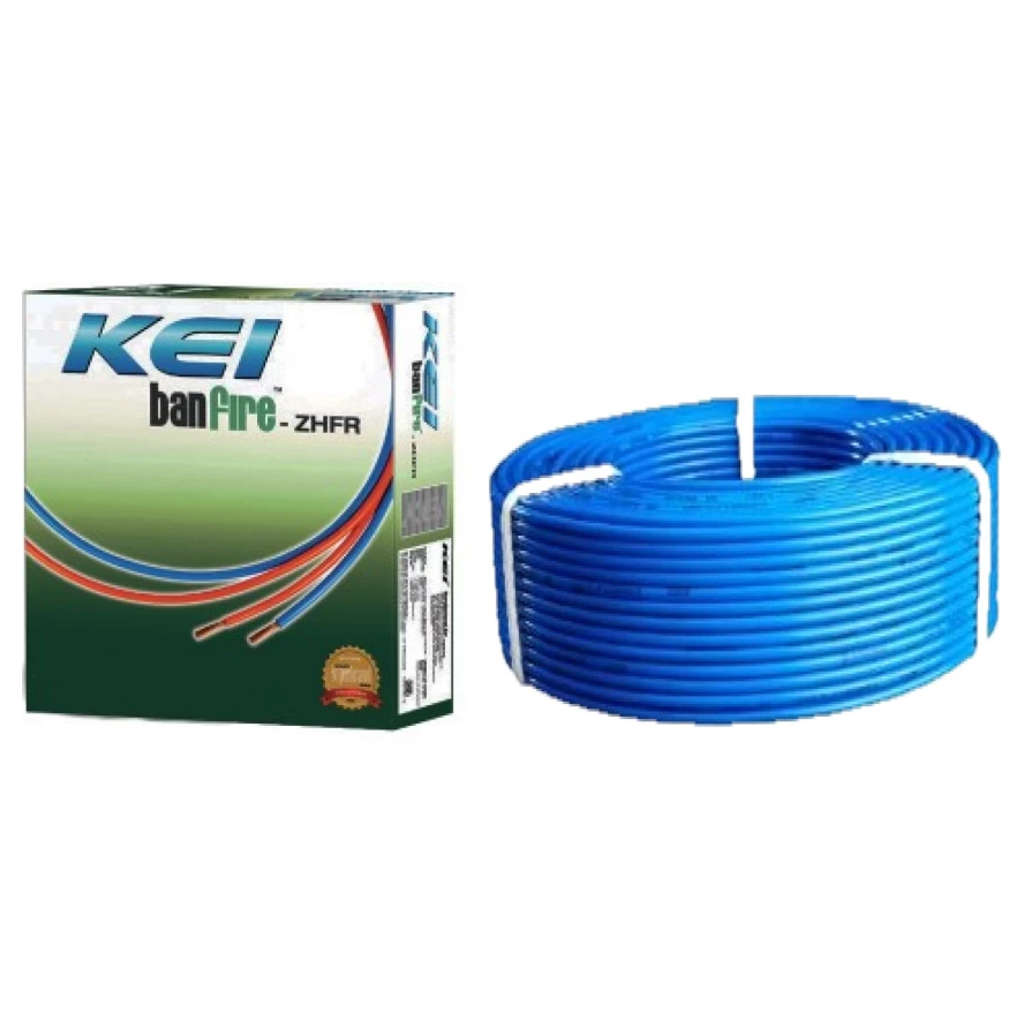

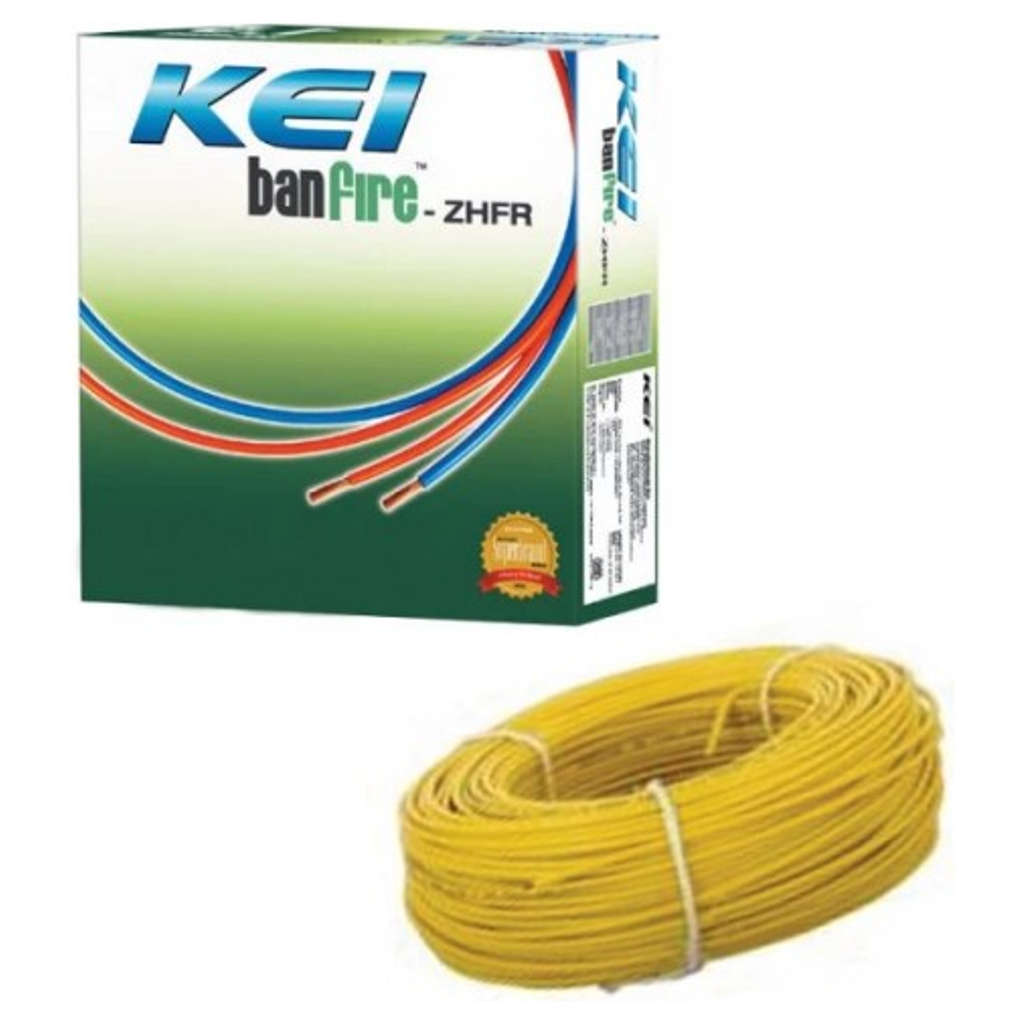

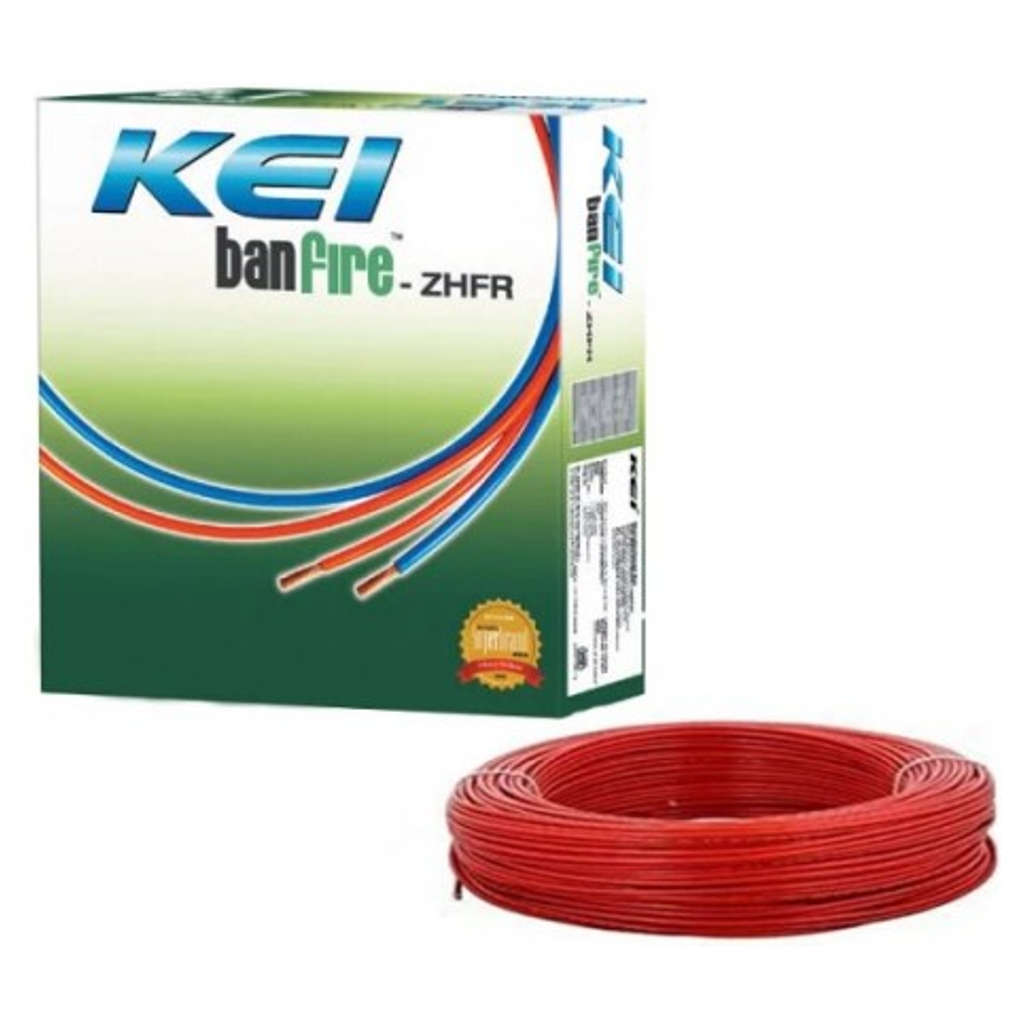

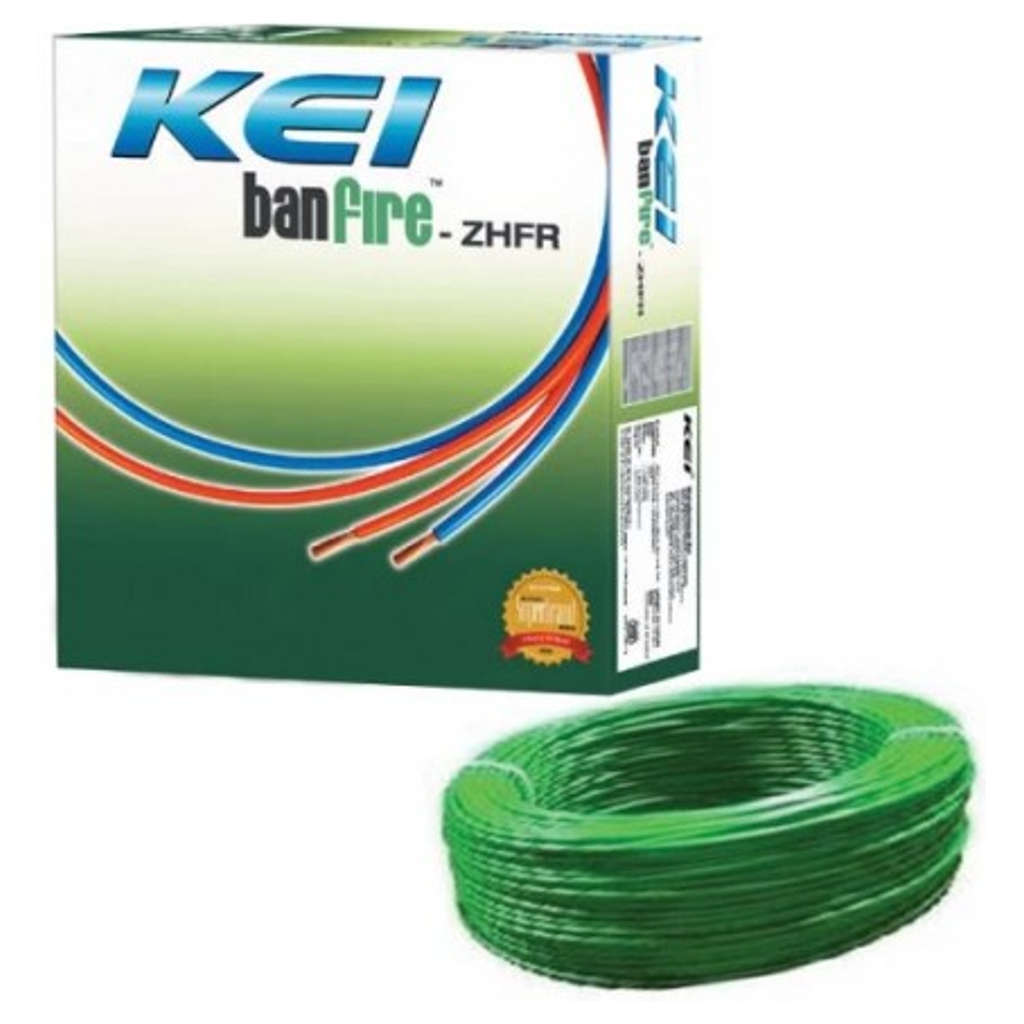

KEI Banfire ZHFR Unsheathed Single Core Flexible Cable Copper 1.50Sq.mm 180Meter
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
BanFire – ZHFR is a result of our commitment towards Mother Earth & its environment is eco-friendly & combined with enhance safety towards hazardous condition in the unlikely event of fire
-
“Smoke inhalation is the primary cause of death for victims in indoor fires” – In the unlikely event of fire, KEI’s BanFire – ZHFR would ensure easy breathing of fire trapped people to facilitate rescue
-
BanFire – ZHFR is capable of handling 105℃ operating temperature along with excellent Fire
-
Heat retardant & non-toxic characteristics
-
It is manufactured using min 99.97% Electrolytic grade, annealed bare copper with more than 100% conductivity
-
Conductor
-
The conductors, drawn from bright electrolytic grade copper and annealed and bunched together
-
Insulation
-
The bunched conductors are insulated with specially formulated grade of Halogen Free Flame Retardant (HFFR) compound is used
-
The insulation does not melt or drop in case of fire
-
The smoke emitted is transparent, non-toxic and minimal
-
The victims trapped in the fire do not suffocate and evacuation is convenient
-
Applications
-
These cables are used for wiring domestic and commercial buildings. A fine drawn multi strand conductor provides enhanced Flexibility & makes it ideal for concealed wiring
-
It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C)
-
Features
-
Excellent Electrical & mechanical properties
-
High Flame retardant & fire resistant properties
-
Lead (Pb) free non-toxic alternatives
-
Halogen free
-
Made of Non Toxic polymer
-
Eco Friendly
-
Higher Flexibility ensure easy handling & longer life
-
Steam and boiling water resistant & anti-rodent
-
Excellent resistant to tarnishing of Copper
-
ZHFR-Zero Halogen Flame Retardant
Product Specification
Brand | KEI |
Product Type | Flexible Cable |
Product Model | Banfire ZHFR |
Color | Red Black Blue Green Yellow |
Cable Length | 180 Meter |
Conductor Area | 1.50 Sq.mm |
No & Size Of Wire | 30/0.25 mm |
Current Rating | 14 Amps |
No Of Cores | Single Core |
Rated Voltage | 1100 V |
Conductor | 99.98% pure electrolyte grade Bright annealed bare Copper |
Insulation | FR+HR PVC compound with a high insulation resistance ensures uninterrupted power supply at all weather condition |
Operating Temperature | -15℃ to maximum + 85℃ |
Insulation Material | PVC |
Conductor Material | Copper |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) LxWxH | 21.3 x 15.5 x 20 |
Unit Of Measurement | 1 Piece |
Weight | 4 kg |
Generic Name | 1 Core Flexible Cables 180 Meter |
Manufacturer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
Packer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
Country Of Origin | India |
