SKU # 1000115262

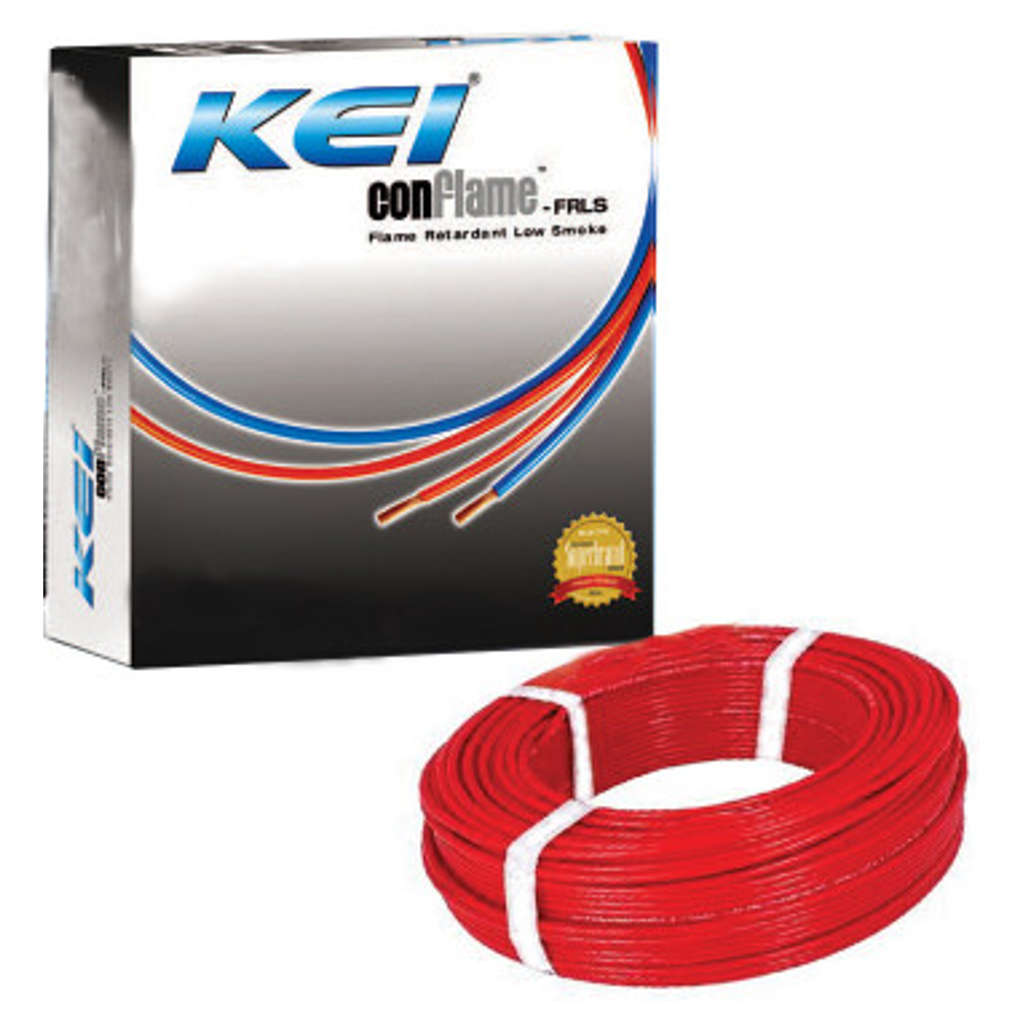

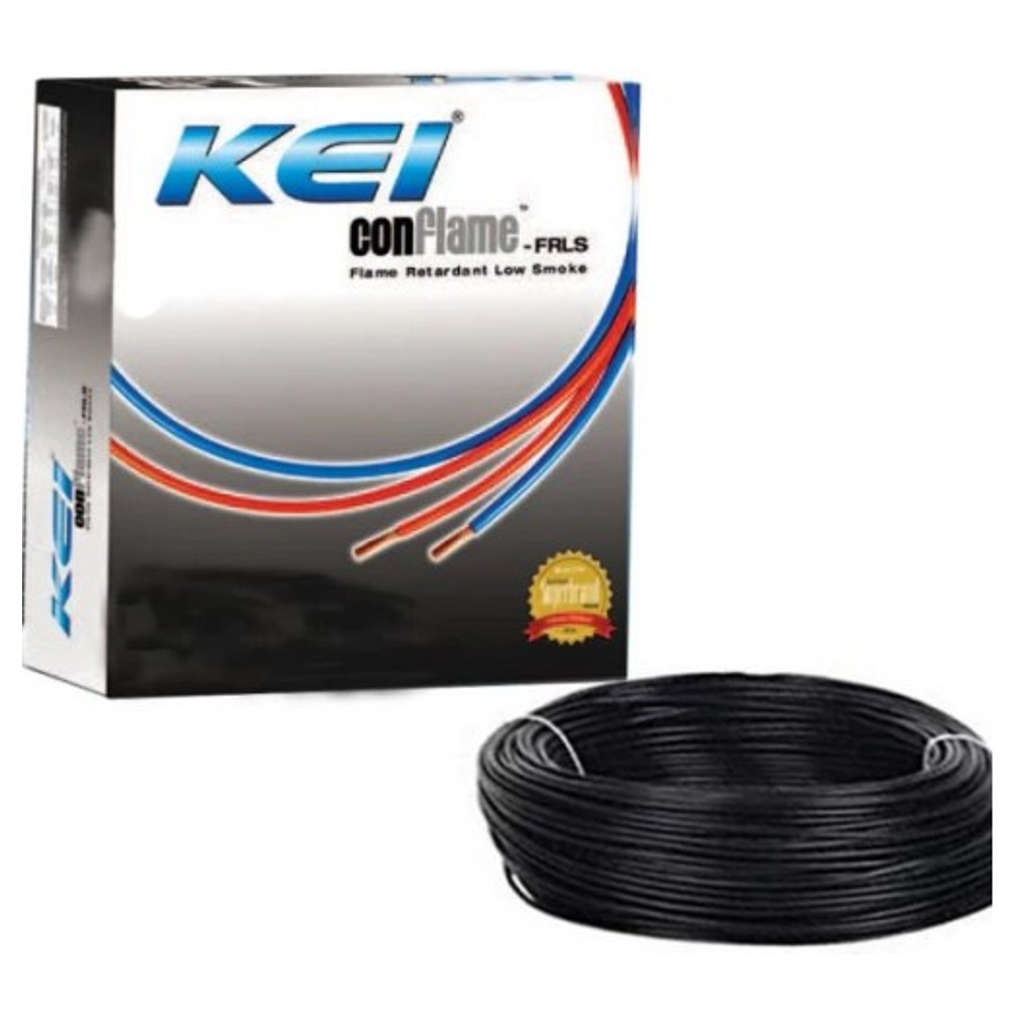

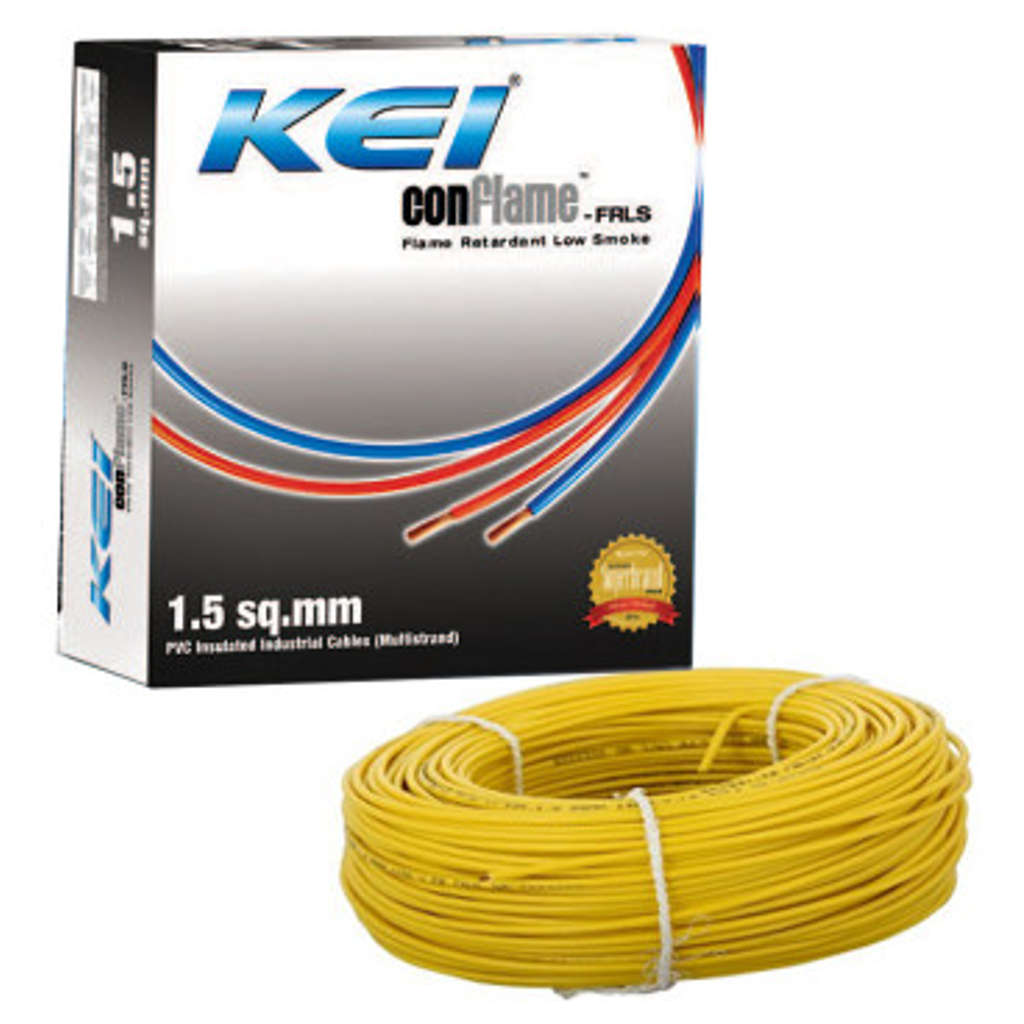

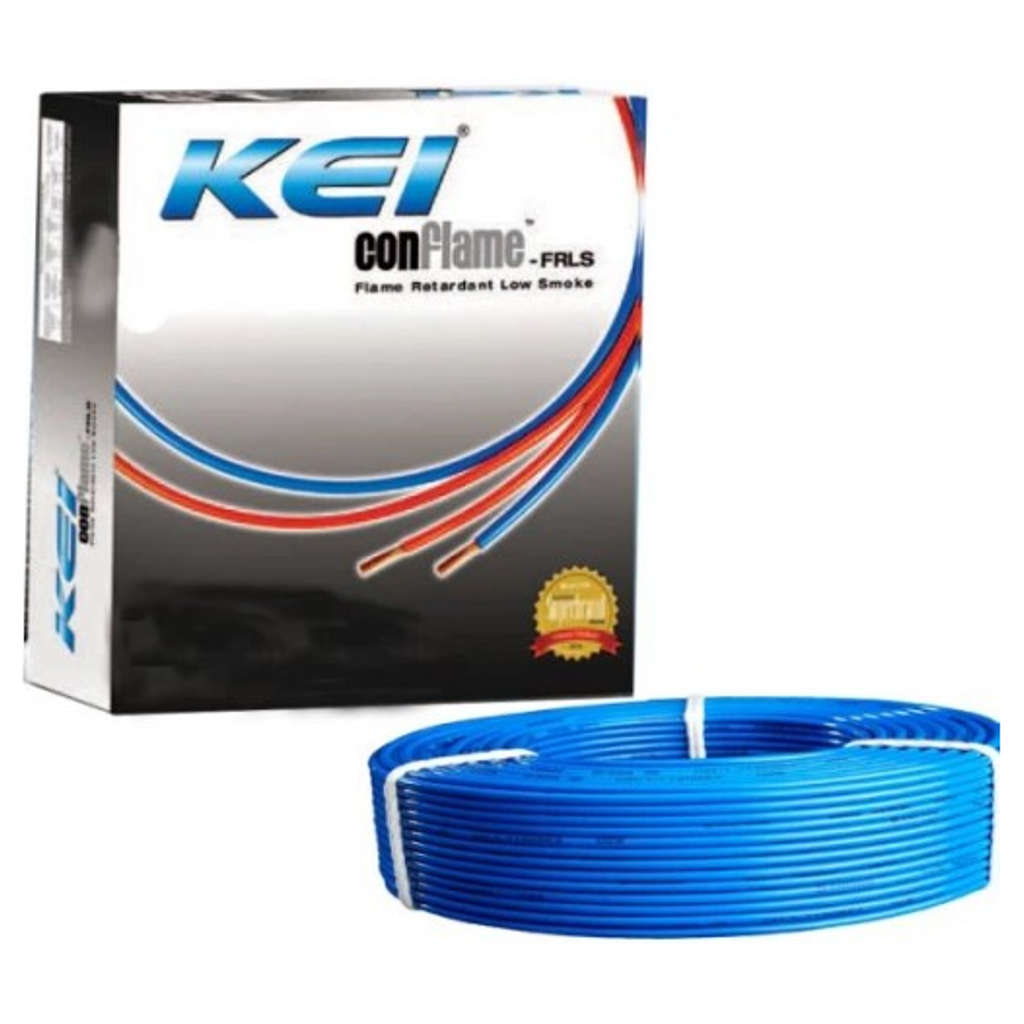

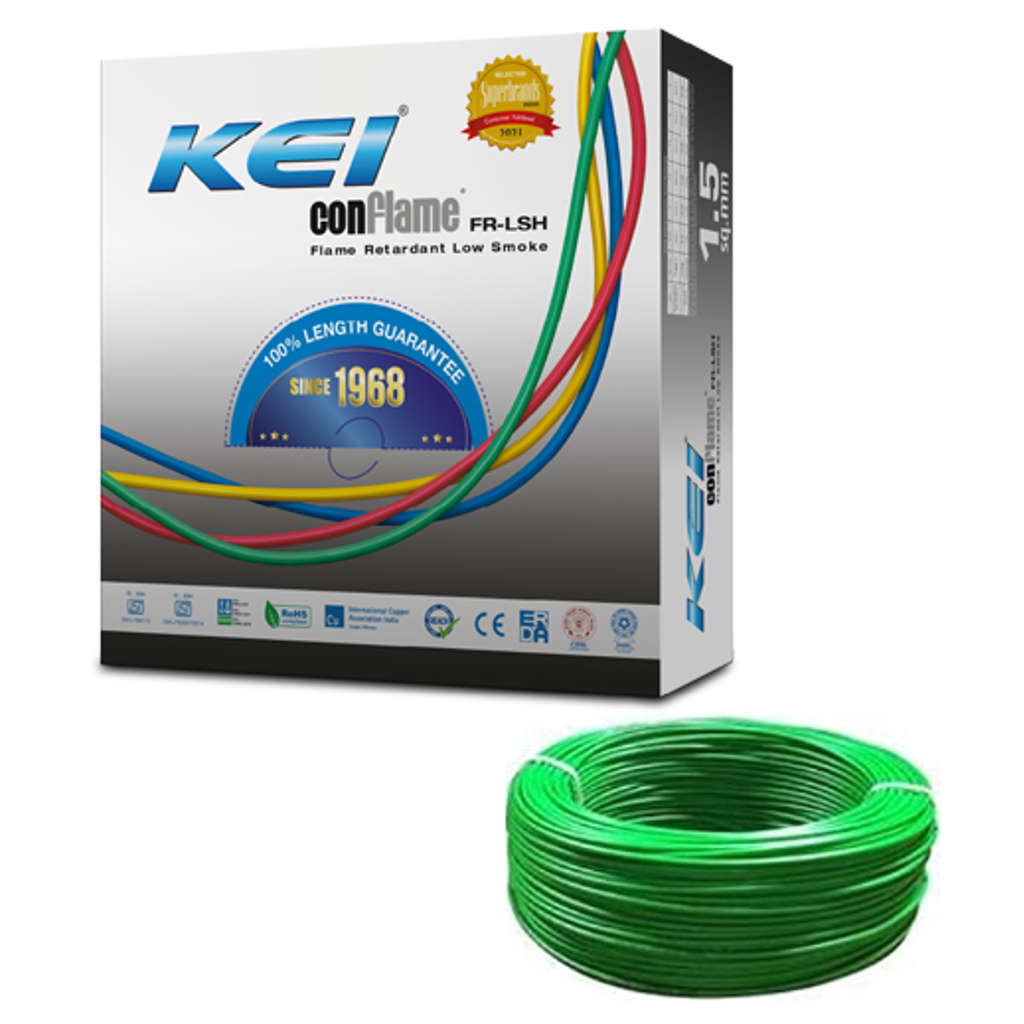

KEI ConFlame-FRLS Unsheathed Single Core Flexible Cable PVC Insulated 4Sq.mm 180Meter
![](http://www.bestomart.com/cdn/shop/t/34/assets/panid.png?v=79406228544121282611724821519)
PAN INDIA DELIVERY
![](http://www.bestomart.com/cdn/shop/t/34/assets/pre_qc.png?v=79212665365913751591724821538)
100% Genuine Products
![](http://www.bestomart.com/cdn/shop/t/34/assets/pay_sec.png?v=25498095452997473051724821521)
100% Secured Payments
Product Description
-
ConFlame – FRLS is synonymous with enhanced safety towards hazardous condition arising out of fire since Smoke inhalation is the primary cause of death for victims of indoor fires
-
The inhalation or exposure to hot gaseous products of combustion can cause serious respiratory complications
-
Some 50–80% of fire deaths are the result of smoke inhalation injuries, including burns to the respiratory system
-
ConFlame is capable of handling 105℃ operating temperature along with excellent Fire, Heat retardant & non-toxic characteristics
-
It is manufactured using min 99.97% Electrolytic grade, annealed bare copper with more than 100% conductivity
-
Conductor
-
The conductors, drawn from bright electrolytic grade copper and annealed and bunched together
-
Insulation
-
The bunched conductors are insulated with specially formulated Flame Retardant Low Smoke Compound
-
During a fire situation, the FR-LSH compound restricts the spread of flame
-
The smoke emission is also minimal
-
Applications
-
These cables are used for wiring domestic and commercial buildings
-
A fine drawn multi strand conductor provides enhanced Flexibility & makes it ideal for concealed wiring
-
It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C)
-
Features
-
Excellent Electrical & mechanical properties
-
High Flame retardant & fire resistant properties
-
Lead (Pb) free non-toxic alternatives
-
Higher Flexibility ensure easy handling & longer life
-
Steam and boiling water resistant & anti-rodent
-
Excellent resistant to tarnishing of Copper
-
FRLS-Flame Retardant Low Smoke
Product Specification
Brand | KEI |
Product Type | Flexible Cable |
Product Model | ConFlame-FRLS |
Color | Red Black Blue Green Yellow |
Cable Length | 180 Meter |
Conductor Area | 4.00 Sq.mm |
No & Size Of Wire | 56/0.30 mm |
Current Rating | 26 Amps |
No Of Cores | Single Core |
Rated Voltage | 1100 V |
Conductor | 99.98% pure electrolyte grade Bright annealed bare Copper |
Insulation | FR+HR PVC compound with a high insulation resistance ensures uninterrupted power supply at all weather condition |
Operating Temperature | -15℃ to maximum + 85℃ |
Insulation Material | PVC |
Conductor Material | Copper |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) LxWxH | 21.3 x 15.5 x 20 |
Unit Of Measurement | 1 Piece |
Weight | 9 kg |
Generic Name | 1 Core Flexible Cables 180 Meter |
Manufacturer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
Packer Details | KEI Industries Limited, D-90, Okhla Industrial Area Phase-I, New Delhi-110020, India. Tel : +91-11-26818840 / 8642 / 0242 Fax : 26817225, 26811959 E-mail : info@kei-ind.com |
Country Of Origin | India |
