SKU # 1000122493
KMP V4 Submersible Pump Set 25Feet 3Phase KMP4T-1.5/20 H
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Other Details
-
V4 Submersible Pump are multistage centrifugal units which operate below water level and are driven by water filled AC single phase (or) three phase induction submersible motors
-
Their pumps are well suited for borewell diameter of minimum 4" (or) 100 mm
-
Our pumps work on principle of a modular structure where with limited number of parts different tailor made request can be achieved
-
A dynamically balanced rotor rotates in a oversized twin bearings on each bearing housing
-
An installed diaphragm in the lower motor housing provides pressure / volume compensation of the motor during internal motor temperature changes
-
This is a very special and successful product because of its simple assembly concept
-
Salient Features
-
Three is a wide range of pumps to match any duty point
-
High pump efficiency
-
Due to less weight installation cost is very less
-
Semi axial impellers make priming automatic
-
Easy to dismantle and repair due to right construction
-
Application
-
Domestic water supply
-
Small irrigation
-
Civil and industrial applications
-
Fire fighting applications
-

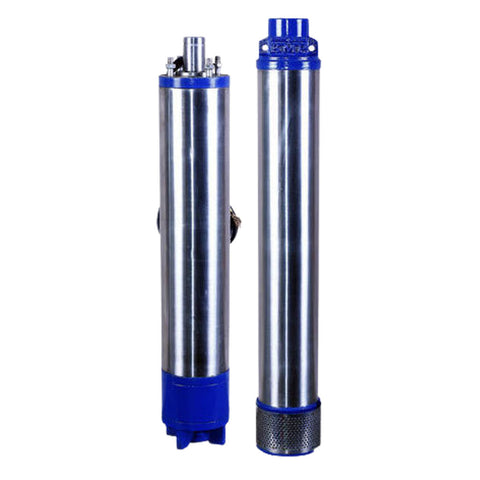

Note:Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
KMP |
|
Product Type |
Submersible Pump Set |
|
Product Model |
KMP4T-1.5/20 H |
|
Series |
V4 |
|
H.P |
1.5 |
|
Stage |
20 |
|
Delivery |
1¼ Inch |
|
Head(Feet) |
500 |
|
Speed |
2900 RPM |
|
No Of Phase |
Three Phase |
|
Operating Voltage |
360V to 415V |
|
Discharge |
6.0 LPS - 0.2 LPS |
|
Maximum Starts Per Hour |
20 Times |
|
Method of Starting |
DOL - 3 Phase |
|
Note |
Control Panel Not Included |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
