SKU # 1000122594

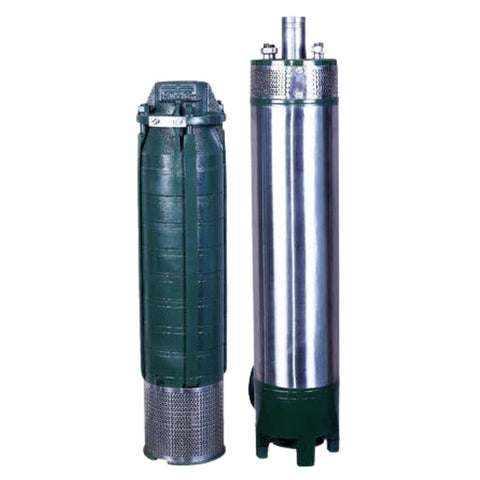

KMP V6 Radial Flow Submersible Pump Set KT640
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Other Details
-
The 6" Vertical Submersible Pumps are well suited for 150 mm borewell and above
-
These submersible pumps consists of multistage centrifugal, vertical axis pumps
-
The pumps are designed such that series of impellers rotate inside vane diffusers challenging the flow of fluid from each impeller to the suction opening of the next
-
The fluid passes through the series of impellers and leaves the pump via delivery outlet
-
There 6" submersible pumpsets have a complete balance between hydraulic and electric design
-
The electrically driven motors are water cooled type,and the rotor is mounted in a carbon thrust bearing which absorbs axial thrust similarly pumps are of two types radial flow type for high head and limited output,where as mixed flow type pumps are for medium heads and high discharge
-
This is a compact unit which operates beneath the surface of water and is suspended vertically from raising main when installed
-
Salient Features
-
The motor has a radial as well as axial thrust bearing
-
There are water filled water lubricated motor
-
Diaphragm below bearing compensates over pressure which arises due to thermal expansion when temperature of winding rises
-
Designed for continues operation with certain limitations
-
Applications
-
For pumping clean, cold water non corrosive & non abrasive
-
Irrigation
-
For urban and rural drinking water supply
-
Pressure boosting
-
Gardens, Forms and nurseries
-
Note*Actual product image may vary from that shown on the picture
ProductSpecification
| Brand | KMP |
| Product Type | Submersible Pumps Set |
| Product Model | KT640 |
| Series | V6 |
| H.P | 12.5 |
| Stage | 16 |
| Delivery | 2 Inch |
| Head(Feet) | 480 |
| Speed | 2900 RPM |
| Impeller Type | Radial |
| Operating Voltage | 415V AC/ 50 Hz |
| Discharge | 2 LPS - 20 LPS |
| Star | |
| Maximum Starts Per Hour | 15 |
| Warranty | As Per Manufacturer Terms And Conditions |
OtherDetails
| Dimension (CM) LxBxH | 63.5 x 24 x 11 |
| Unit Of Measurement | 1 Piece |
| Weight | 47 kg |
| Generic Name | Submersible Pumps Set |
| Manufacturer Details | KMP Industries No. 43/183, A Puthu Thottam, E.N.G.Pudur Urumandampalayam, Coimbatore - 641029, Tamil Nadu,+91-8048978981 |
| Packer Details | KMP Industries No. 43/183, A Puthu Thottam, E.N.G.Pudur Urumandampalayam, Coimbatore - 641029, Tamil Nadu,+91-8048978981 |
| Country Of Origin | India |
