SKU # 1000136691

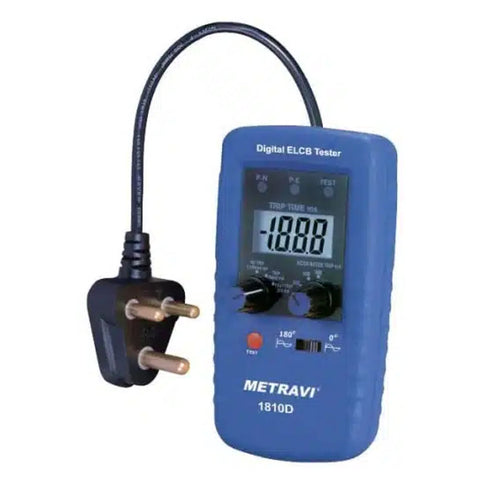

Metravi ELCB Tester 1810D

Metravi ELCB Tester 1810D

Visit the Metravi Store

₹ 7,370.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • The Metravi 1810D ELCB Tester with Current Rating up to 500mA, Trip Test, Fault Trip Time, Self Powered, verifies wiring connection, 2000mS readout for testing latest ELCB/RCD

  • It is a specialised device used to ensure that electrical wall sockets are properly wired and safe to use

  • It checks the wiring configuration, including the polarity, grounding (earthing), and potential leakage currents in the circuit

  • 2000mS readout for testing latest delay action breakers

  • Fully programmed operation

  • Accurate digital read out of tripping time

  • Two LED lamps give quick check for correct wiring

  • Operates from mains supply

  • No need for batteries

  • Compact, lightweight and simple to operate

  • Zero cross circuitry permits testing at 0°and 180°portion of sine wave

  • At these two tests minimum (best) and maximum (worst) trip times will be displayed

  • Trip Current Setting: 5mA, 10mA, 30mA, 100mA, 300mA, 500mA

  • Operating Voltage: 220 / 230 / 240V AC, 50/60Hz

  • Data hold function to freeze the digital trip time display allows for easy readout and eliminates the possibility of reading error

ProductSpecification

Brand

Metravi

Product Type

ELCB Tester

Product Model

1810D

LED Indication

For quick checking of correct wiring

Power Source

Mains Operated

Trip Current

5mA, 10mA, 30mA, 100mA, 300mA, 500mA

Trip Time

2000ms (40ms for Fast Trip)

Operating Voltage

220V/230V/240V AC±10% 50/60Hz

Accuracy

±2%

Data Hold

Data Hold

Zero Cross Circuitry

Permits testing at 0°and 180°portion of sine wave

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

215 x 178 x 83

Unit Of Measurement

1 Piece

Weight

2 kg

Generic Type

ELCB Tester

Manufacturer Details

Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India

Packer Details

Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India

Country Of Origin

India
