SKU # 1000136692

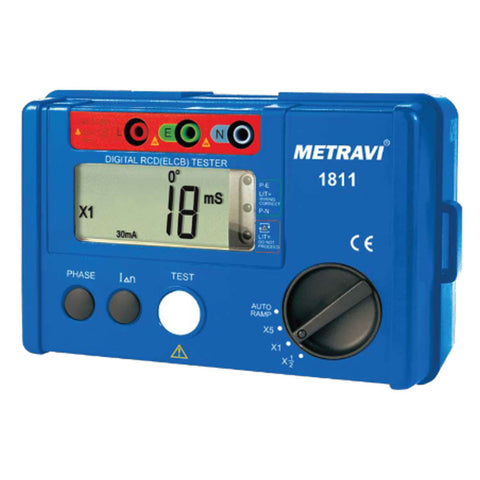

Metravi ELCB Tester 1811
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Adopts Micro-Processor Chip to maintain high accuracy, reliability and stability
-
Wiring Check: three –LED indication When P-E and P-N green LED are on and red LED is off, the wiring is correct; otherwise it indicates wrong wiring(reverse P and N or bad grounding)
-
Phase Angle Selection: The tests can be performed at positive 0 or negative 180 phase angle
-
Over-Load Indication: “OL mS” shows when trip time exceeds Maximum test time
-
Auto Data Hold: The test results will be maintained for a while after the tests finishes
-
Auto Ramp Test: Test trip current and trip time simultaneously
-
Power-Off Warning Indication: The buzzer alarms after operating for 3minutes
-
Battery Powered
-
Fused Protection
-
Double or Reinforced Insulation for safe design
-
Trip Current Setting: 10 / 20 / 30 / 100 / 300 / 500mA
-
Confirms to IEC 61010-1 CAT III 300V, IEC 61557-1,5 and IEC 61010-2-31
-
Suitable for Use on 230V/50Hz single-phase line (operating voltage: 195~253V)
ProductSpecification
Brand | Metravi |
Product Type | ELCB Tester |
Product Model | 1811 |
Display | Backlit LCD |
Phase Angle | The RCD test can be selected to start from a positive (0°) or a negative (180°) half cycle |
Data Hold | Data Hold |
Alarm | Alarm is issued when contact voltage is larger than selected limit value during RCD test |
Over Range Indication | Over-range Indication |
Ramp Test Mode | Auto RAMP test |
Auto Power Off | Auto Power-off |
Power Source | Battery Operated |
Battery Size | AA |
Battery Type | Alkaline |
No Of Batteries | 6 |
Earthing Systems | L-N voltage measurement, L-P-E voltage measurement |
Operating Voltage | 230V/50Hz |
Frequency Range | 45Hz to 65Hz |
Resolution | 1Hz, 1V |
Accuracy | ±3% |
Certifications | CAT-III 600V, IEC-61010-1, IEC-61010-2-31, IEC-61557-1,6, Pollution Degree 2 |
Trip Current | 10/20/30/100/300/500mA |
Trip Time | 2000mS/1000mS/300mS/40mS |
Voltage Measurement Function | 30V to 600V |
Temperature | -20°C~60°C |
Relative Humidity | ≤75%RH |
Product Dimension | 160 x 70.5 x 100 mm |
Weight | About 400 g |
Warranty | 1 Year |
OtherDetails
Dimension (CM) - L x B x H | 16 x 70.5 x 10 |
Unit Of Measurement | 1 Piece |
Weight | 0.4 kg |
Generic Type | ELCB Tester |
Manufacturer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Packer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Country Of Origin | India |
