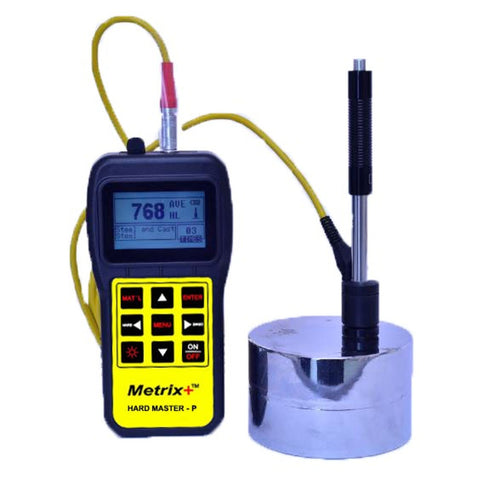

Metrix Plus HardMaster-P Leeb Hardness Tester
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Leeb Hardness Tester with range 170 ~ 960 HLD, convertible to other scales, clear dot matrix display and inbuilt calibration process
-
Features
-
Converts to all common scales of HV, HB, HRC, HRB, HRA, HS
-
128×64 dot-matrix backlit LCD display
-
Inbuilt function of Software Calibration
-
Memory storage of 600 groups of data
-
Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece
-
Applications
-
This can be used to measure the hardness of die cavity of moulds, inspection of bearings, installed machinery, heavy work pieces and other mass produced parts in a production line, failure analysis of pressure vessel, steam generator and other equipment, material identification in the warehouse of metallic materials, rapid testing in large range and multi-measuring areas for large-scale work piece
-
Measuring Principle
-
This instrument employs the rebound method of measuring hardness by using an assembly of an impact body and magnets to measure the impact and rebound velocities from the material under test to determine the Leeb Hardness, which can be converted to general hardness scales of HV, HB, HS, HRC, HRB, etc, for analysis
ProductSpecification
| Brand | Metirx+ |
| Product Type | Hardness Tester |
| Product Model | HardMaster-P |
| Hardness Scales | HL, HB, HRB, HRC, HRA, HV, HS |
| Memory | 48～600 groups （impact times: 32～1) |
| Measuring Range | HLD（170～960) |
| Accuracy | ±6HLD (760±30HLD) error of displayed value 6HLD (760±30HLD) repeatability of displayed value |
| Standard Impact Device | D |
| Optional Impact Devices | DC/D+15/G/C/DL |
| Maximum Workpiece Hardness | 996HV(For Impact Devices D/DC/DL/D+15/C) 646HB(For Impact Device G) |
| Minimum Radius Of Workpiece | Rmin = 50mm (with special support ring Rmin= 10mm) |
| Minimum Workpiece Weight | 2~5kg on stable support ; 0.05~2kg with compact coupling |
| Minimum Workpiece Thickness | 5mm (Impact Devices D/DC/DL/D+15) 1mm (Impact Device C) 10mm (Impact Device G) |
| Minimum Thickness Of Hardened | 0.8mm |
| Surface | |
| Power | 3 x AA Battery |
| Continuous Working Time | Approximately 100 h (with backlight) |
| Relative Humidity | ≤90% |
| Overall Dimensions | 125 x 67 x 31 mm (Main unit) |
| Standard Configuration | Main Unit, Impact Device Type D, Leeb Standard Test Block, Cleaning Brush, Supporting Ring, Manual, Carrying Case |
| Optional Configuration | Mini-printer, Data Pro Software(USB) + Communication Cable |
| Overall Dimensions | 125 x 67 x 31 mm (main unit) |
| Weight | 0.3 kg (main unit) |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 125 x 67 x 31 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.3 kg |
| Generic Type | Hardness Tester |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
