SKU # 1000136502

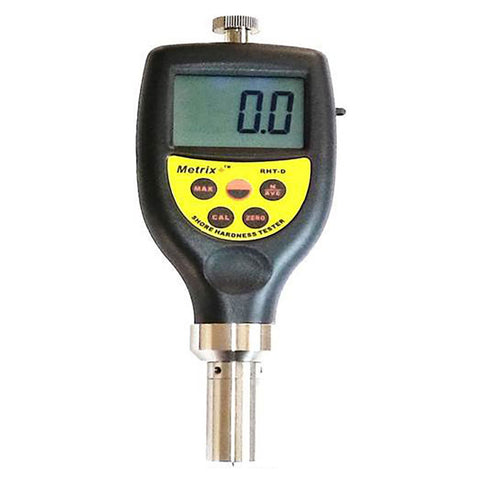

Metrix Plus Hardness Tester RHT D

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Key Features
-
Shore D Rubber Hardness Tester with backlit display
-
Features
-
Integrated probe and light weight design
-
Average value function and max data hold
-
Automatic power-off and low battery indication
-
Metric to imperial conversion
-
Inbuilt software calibration
-
Applications
-
Shore D scale is used for testing hard elastomers and most other polymer materials (thermoplastics, thermosets) like hard rubber, thermoplastic elastomers, harder plastics and rigid thermoplastics, with hardness values greater than 90A
-
Measuring Principle
-
This instrument utilizes an indenter loaded by a calibrated spring
-
The measured hardness is determined by the penetration depth of the indenter under the load
-
For shore D, the indenter is a hardened steel rod 1.1 mm – 1.4 mm in diameter, with a 30° conical point and 0.1 mm radius tip
ProductSpecification
Brand | Metrix Plus |
Product Type | Hardness Tester |
Product Model | RHT D |
Display | Backlit LCD |
Measuring Range | 0 – 100 / 10 ~ 90H |
Accuracy | <+1H |
Resolution | 0.1H |
Power | 2 x 1.5V AAA (UM-4) Battery |
Operation Temperature | 0 ~ 50℃ |
Standard Configuration | Main Unit, pin length test block(this is not the real hardness test sample; it is only an imitation Just place it onto a flat glass, then place the point of indenter into the hole of the block when taking measurement), carrying case, manual |
Optional Accessories | PC interface, shore hardness tester measurement stand, rubber hardness test block(A/D type) |
Dimension | 170 x 63 x 24 mm |
Weight | 310 g (Excluding batteries) |
Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
Dimension (CM) - L x B x H | 17 x 63 x 24 |
Unit Of Measurement | 1 Piece |
Weight | 0.310 kg |
Generic Type | Hardness Tester |
Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
Country Of Origin | India |
