SKU # 1000131026

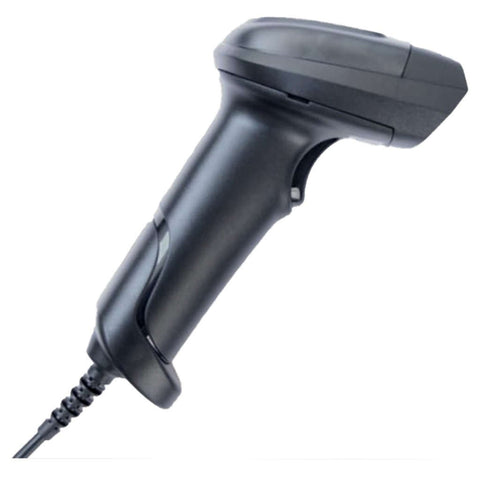

Posiflex Rugtek 2D Wired Barcode Scanner LS-3002

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Features
-
LED indicator and buzzer sound
-
Excellent decoding, scan various complex codes
-
Ergonomic design for more comfortable operation
-
Support paper barcode, & QR Code on mobile screen
-
High temperature resistant cable material for longer life
-
Modular design, easy to assemble, strong drop resistance
Product Specification
Brand | Posiflex Rugtek |
Product Type | Barcode Scanner |
Product Model | LS-3002 |
OS | Windows /iOS / Android / Google Chrome |
Image Sensor | CMOS |
Image(Pixels) | 640 (H)*480 (v)pixels |
Light Source | Aiming: 625 nm RED LED / White Illumination 4000K White LED |
Scan Mode | Handhand (Manual) / Handfree (Automatic ) |
Scan Rate | 300 scans/second |
Scan Accuracy | ≥4mil@ Code39 |
Print Contrast | ≥20% |
Visual Indicator | Red and Blue LED Light ,Buzzer |
Interfaces | USB keyboard,USB virtual serial port,RS-232 |
Scan Angle | Left and right:± 55 °, Front and rear:± 55 °, Rotate:360 ° |
Field Of View | 32° horizontal, 24° vertical |
Transmission Mode | Wired Transmission |
Cable | Standard 1.8M straight |
Power Parameter | Input Voltage:5VDC±5% Working corrent:150mA |
Scan Distance | 20-200mm @ EAN 13mil PCS=100%:5-170mm @ QR 20mil PCS=100% |
Environmental Parameters |
|
Operating Temperature | -20°C~+ 60°C |
Working Humidity | 5% to 95% relative humidity, non-condensing |
Storage Temperature | -40°C~+70°C |
Electrostatic Protection | ±8 kV(Direct discharge) |
Ambient Brightness | 0~100,000Lux |
Drop Resistance | IP54 and2M |
Safety Regulations | CE (EN 55032:2015; EN 55035:2017), ROHS, EN62368-1:2014+A11:2017, FCC PART 15 CLASS B |
Decoding Capability | |
2D | QR, PDF417, DataMatrix(ECC200, Aztec, HanXinCode, Maxicode, Micro QR, Micro PDF417 |
Dimension (L x W x H) | 179 x 68 x 94 mm |
Weight | 203 g With Cable |
Warranty | 3 Years |
Other Details
Dimension (CM) - L x B x H | 17.9 x 6.8 x 9.4 |
Unit of Measurement | 1 Piece |
Weight | 0.203 kg |
Generic Type | Barcode Scanner |
Manufacturer Details | AEGIS INFOWARE PVT.LTD, 607A, B-Block, Mondeal Square, Opp Honest Restaurant Corporate Road, S.G> Highway, Prahladnagar. , Ahmedabad, Gujarat-380015, India , Phone: +91-8448233444 |
Packer Details | AEGIS INFOWARE PVT.LTD, 607A, B-Block, Mondeal Square, Opp Honest Restaurant Corporate Road, S.G> Highway, Prahladnagar. , Ahmedabad, Gujarat-380015, India , Phone: +91-8448233444 |
Country of Origin | India |
