Out of Stock!
SKU # 1000098472

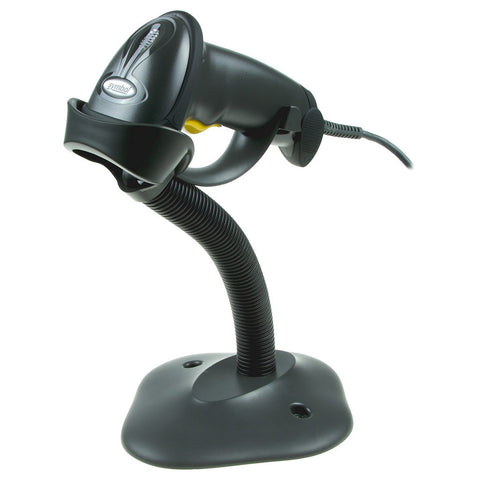

Zebra General Purpose Handheld Barcode Scanner With Stand 1D LS2208
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Our Best Selling Handheld Laser Scanner
-
With over eight million sold, the LS2208 remains our best selling handheld laser scanner
-
The LS2208 has it all enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density
-
With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world
-
The LS2208 the well-proven scanner powering the checkout lines all around the world
-
Features
-
Durable Construction
-
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation
-
Capture high-density bar codes for greater application flexibility
-
With just one scanner, you can capture the high density bar codes common on small items
-
Deploy In Every Corner Of The World
-
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box
-
Class-Leading Working Range
-
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience
-
More Decode Feedback Options
-
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator(a blinking laser line), a beep tone, a red/green LED indicator or any combination of the three
-
All Day Comfort Your Workers Can Count On
-
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments
-
The result Reduced user fatigue and increased worker productivity
-
Flexible Handheld Or Hands-Free Operation
-
The optional Intellistand enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand
-
Multiple Interfaces
-
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready
-
Truly Plug-And-Play
-
The universal cable connects to any computing environment, practically eliminating setup and training time
-
Advanced Data Formatting(ADF)
-
Format data properly before it is sent to your host computer, eliminating the costly modification of host software
-
Comes With Stand
Product Specification
|
Brand |
|
|
Product Type |
Barcode Scanner |
|
Product Model |
LS2208 |
|
Performance Characteristics |
|
|
Light Source |
650 nm Laser Diode Class 2 |
|
Scan Pattern |
Single line |
|
Scan Speed |
100 scans per second |
|
Scan Angle |
35° |
|
Minimum Print Contrast |
20% minimum reflective difference |
|
Skew Tolerance |
± 10° |
|
Pitch Tolerance |
± 65° |
|
Roll Tolerance |
± 60° |
|
User Environment |
|
|
Operating Temperature |
32° to 122° F/0° to 50° C |
|
Storage Temperature |
-40° to 158° F/-40° to 70° C |
|
Humidity |
5% - 95% RH, non-condensing |
|
Drop Specification |
Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
|
Tumble Specification |
Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler |
|
Environmental Sealing |
IP30 |
|
Electrostatic Discharge(Esd) |
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
|
Ambient Light Immunity |
0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor(direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles(4,844 Lux) Sunlight: 8000 Ft. Candles(86,111 Lux) |
|
Symbol Decode Capability |
|
|
Scanning Technology |
Code 39, Code 128, Code 93, Codabar/ NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32(Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. |
|
Minimum Element Resolution |
Code 39: 3.0 mil |
|
Physical Characteristics |
|
|
Input Voltage Range |
4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
|
Operating Current At Nominal Voltage(5.0v) |
175 mA(typical) |
|
Standby Current(Idle) At Nominal Voltage(5.0v) |
90 mA(typical) |
|
Supported Host Interfaces |
USB, RS232, Keyboard Wedge, TGCS(IBM) 46XX over RS485 |
|
Keyboard Support |
Supports over 90 international keyboards |
|
User Indicators |
Direct decode indicator, good decode LEDs, beeper(adjustable tone/volume) |
|
Color |
Twilight Black |
|
Includes |
Gooseneck Intellistand |
|
Dimensions(HxWxD) |
6.0x2.5x3.3 Inch 15.2x6.4x8.5 cm |
|
Weight |
150 g |
|
Warranty |
3 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Barcode Scanner |
Manufacturer Details |
Zebra B106, International Home Deco Park (IHDP) Plot No. 7, Sector 127, Taj Expressway, Uttar Pradesh- 201 301, India |
Packer Details |
Zebra B106, International Home Deco Park (IHDP) Plot No. 7, Sector 127, Taj Expressway, Uttar Pradesh- 201 301, India |
Country of Origin |
India |
