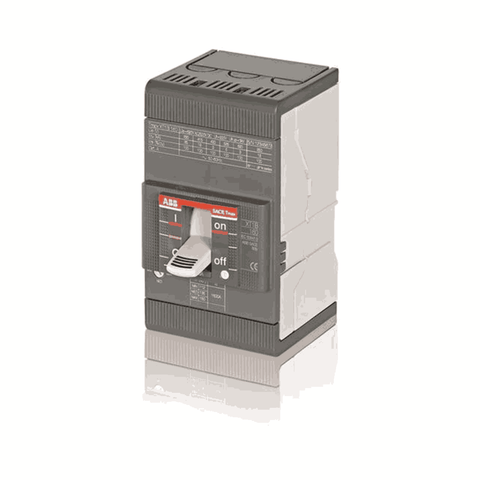

ABB Power Distribution TMax MCCB 1.6-160 A 36 KA 415 V AC Three Pole – XT2N 160 3p

Name: ABB Power Distribution TMax MCCB 1.6-160 A 36 KA 415 V AC Three Pole – XT2N 160 3p
Brand: ABB
SKU: 1000012312
Price: 9866.0 INR
Availability: InStock

Visit the ABB Store

₹ 10,747.00

Quantity



Pack Qty : 1

Delivery Availability

Offers and Coupons

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

C.Breaker Tmax XT2N 160 Fixed Three-Pole With Front Terminals And Thermomagnetic Release
Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.
The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.
Tmax circuit-breakers can be equipped with thermomagnetic,magnetic only or electronic trip units; all of which are interchangeable.
Product Net Width : 90 mm
Product Net Height : 130 mm
Product Net Depth / Length : 82.5 mm
Product Net Weight : 1.2 kg
Number of Poles : 3
Product Main Type : SACE Tmax XT
Product Name : Moulded Case Circuit Breaker
Product Type : CB
Version : F
Electrical Durability : 120 cycles per hour , 8000 cycle
Mechanical Durability : Nr. Operations 240 cycles per hour , Nr. Operations 25000 cycle
Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Rated current	Type	Product id
1.6 A	1SDA067000R1	XT2N 160 TMD 1,6-16 3p F F
2 A	1SDA067001R1	XT2N 160 TMD 2-20 3p F F
2.5 A	1SDA067002R1	XT2N 160 TMD 2,5-25 3p F F
3.2 A	1SDA067003R1	XT2N 160 TMD 3,2-32 3p F F
4 A	1SDA067004R1	XT2N 160 TMD 4-40 3p F F
5 A	1SDA067005R1	XT2N 160 TMD 5-50 3p F F
6.3 A	1SDA067006R1	XT2N 160 TMD 6,3-63 3p F F
8 A	1SDA067007R1	XT2N 160 TMD 8-80 3p F F
10 A	1SDA067008R1	XT2N 160 TMD 10-100 3p F F
12.5 A	1SDA067009R1	XT2N 160 TMD 12,5-125 3p F F
16 A	1SDA067010R1	XT2N 160 TMD 16-300 3p F F
20 A	1SDA067011R1	XT2N 160 TMD 20-300 3p F F
25 A	1SDA067012R1	XT2N 160 TMD 25-300 3p F F
32 A	1SDA067013R1	XT2N 160 TMD 32-320 3p F F
40 A	1SDA067014R1	XT2N 160 TMA 40-400 3p F F
50 A	1SDA067015R1	XT2N 160 TMA 50-500 3p F F
63 A	1SDA067016R1	XT2N 160 TMA 63-630 3p F F
80 A	1SDA067017R1	XT2N 160 TMA 80-800 3p F F
100 A	1SDA067018R1	XT2N 160 TMA 100-1000 3p F F
125 A	1SDA067019R1	XT2N 160 TMA 125-1250 3p F F
160 A	1SDA067020R1	XT2N 160 TMA 160-1600 3p F F

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	3 Pole MCCB
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
