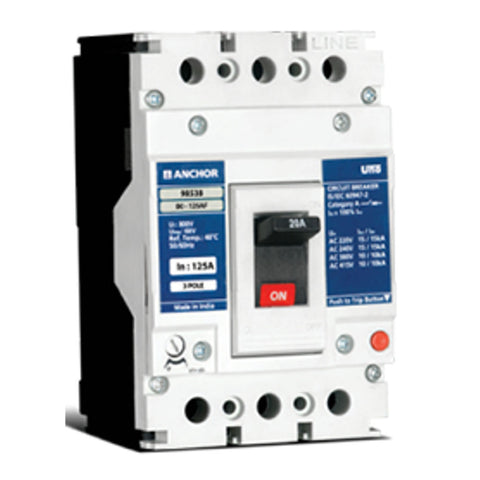

Anchor UNO B0 3 Poles MCCB

Name: Anchor UNO B0 3 Poles MCCB
Brand: Anchor
SKU: 1000078589
Price: 2465.0 INR
Availability: InStock

Visit the Anchor Store

₹ 2,465.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch In 7-10 Business days

EMI Available On minimum purchase of ₹ 3000/-

Product Description

Moulded Case Circuit Breakers (MCCB) are electromechanical devices which find application in protecting electrical circuit from over load and short circuit currents
MCCB is designed in compliance with IS/IEC 60947-2 with Thermal and Magnetic tripping element for circuit protection
Features
Adjustable Thermal Fixed Magnetic
Compact Frame
Suitable for Isolation
100% Neutral Protection
Trip Free Mechanism
Utilization Category A
Ics = Icu =100%
Icu =10kA

Product Specification

Brand	Anchor
Product Type	MCCB
Product Code \| Rated Current(In)	98521 \| 20A 98522 \| 25A 98523 \| 32A 98524 \| 40A 98525 \| 50A 98526 \| 63A 98527 \| 80A 98528 \| 100A 98529 \| 125A
Series	UNO
Standard	IEC-60947 Part 2
Product Range	upto 125A
Poles	3
Frame Sizes	125AF
Rated Ultimate Short Circuit Current Breaking Capacity Icu (max)	10kA
Rated Service Short Circuit Current Breaking Capacity, Ics	100%Icu
Rated Operational Voltage Ue (V)	415V~AC
Rated Fequency (Hz)	50/60Hz
Rated Insulation Voltage Ui (V)	800V
Rated Impulse Withstand Voltage Uimp (KV)	6kV
Line Load Bias	Yes
Utilization Category	A
Suitability For Isolation	YES
Release Available	Adjustable Thermal (0.8-1.0In), Fixed Magnetic
Mechanical Operations	15000
Electrical Operations	3000
Calibration Temperature	40ºC
Warranty	As Per Manufacturer Terms & Conditions

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	3 Pole MCCB
Manufacturer Details	Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888
Packer Details	Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888
Country of Origin	Japan
