Out of Stock!
SKU # 1000088242

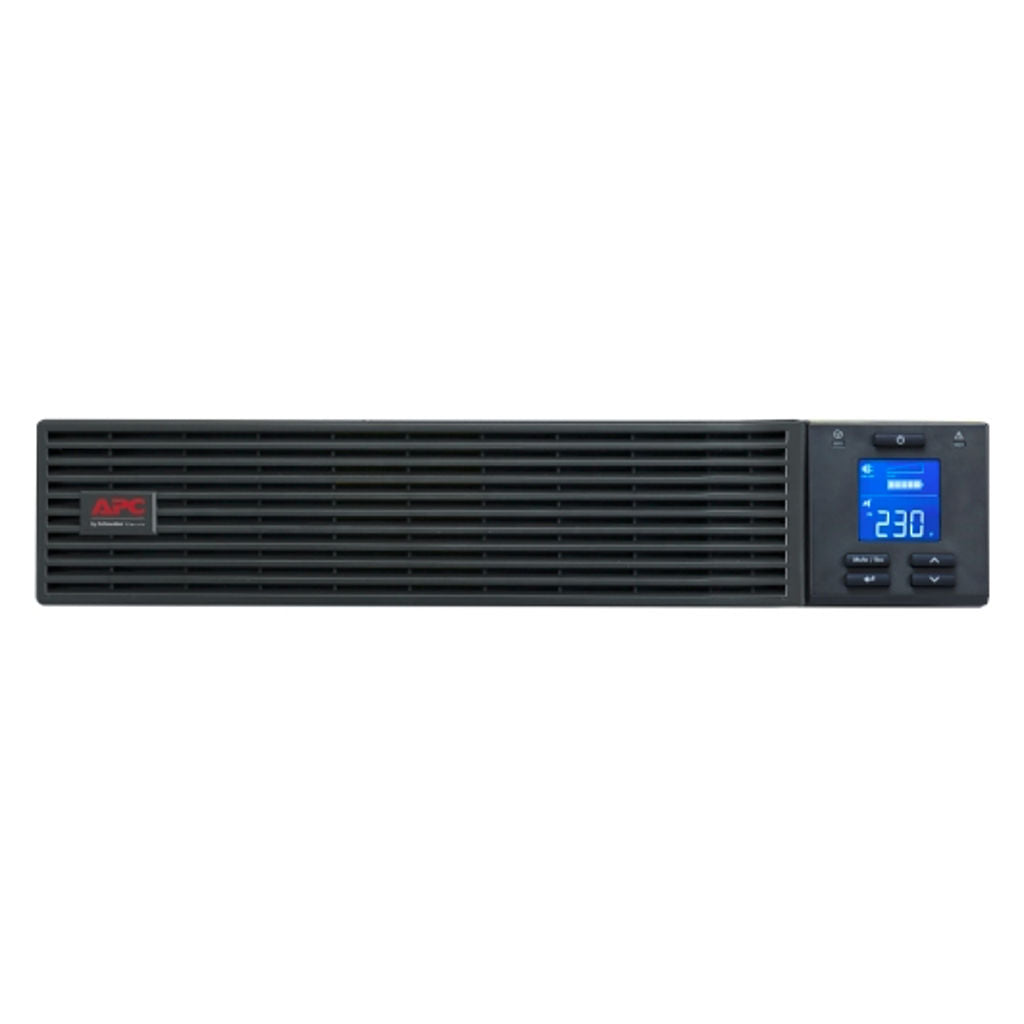

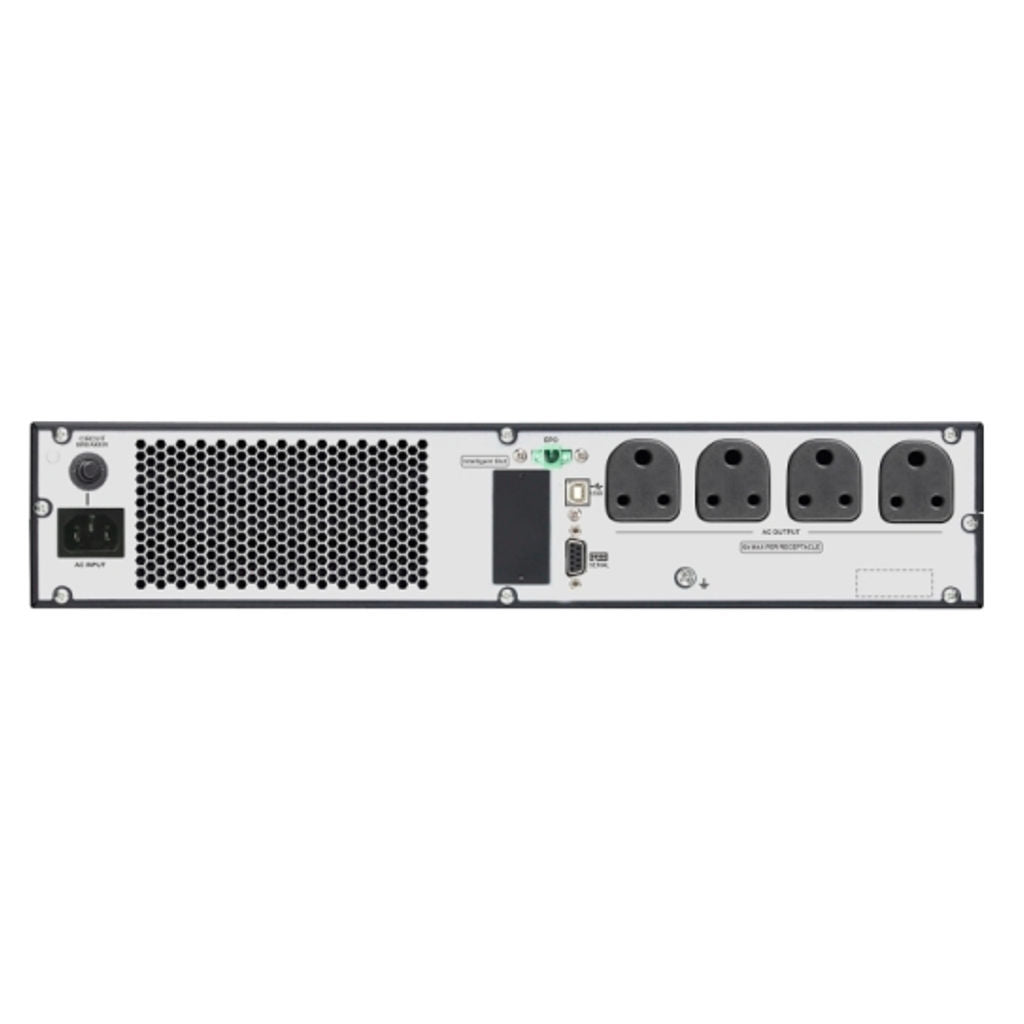

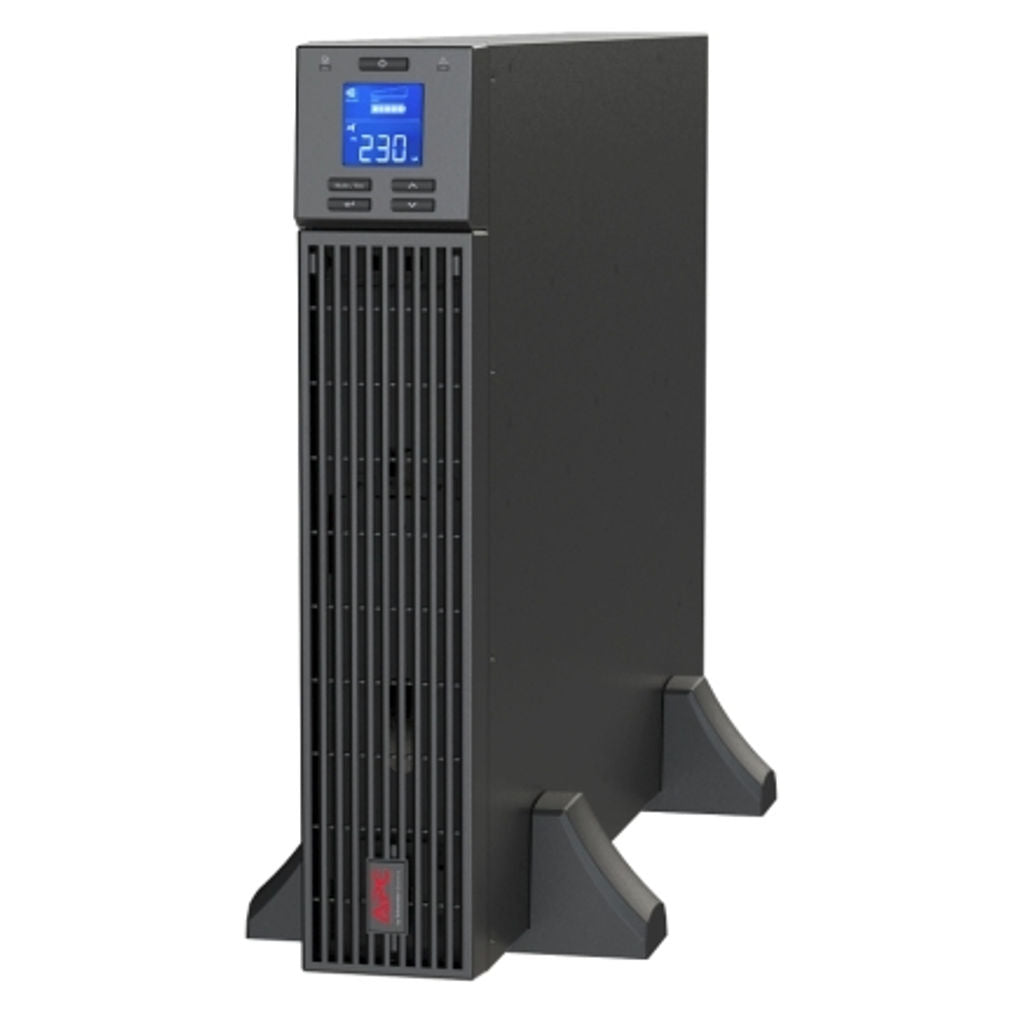

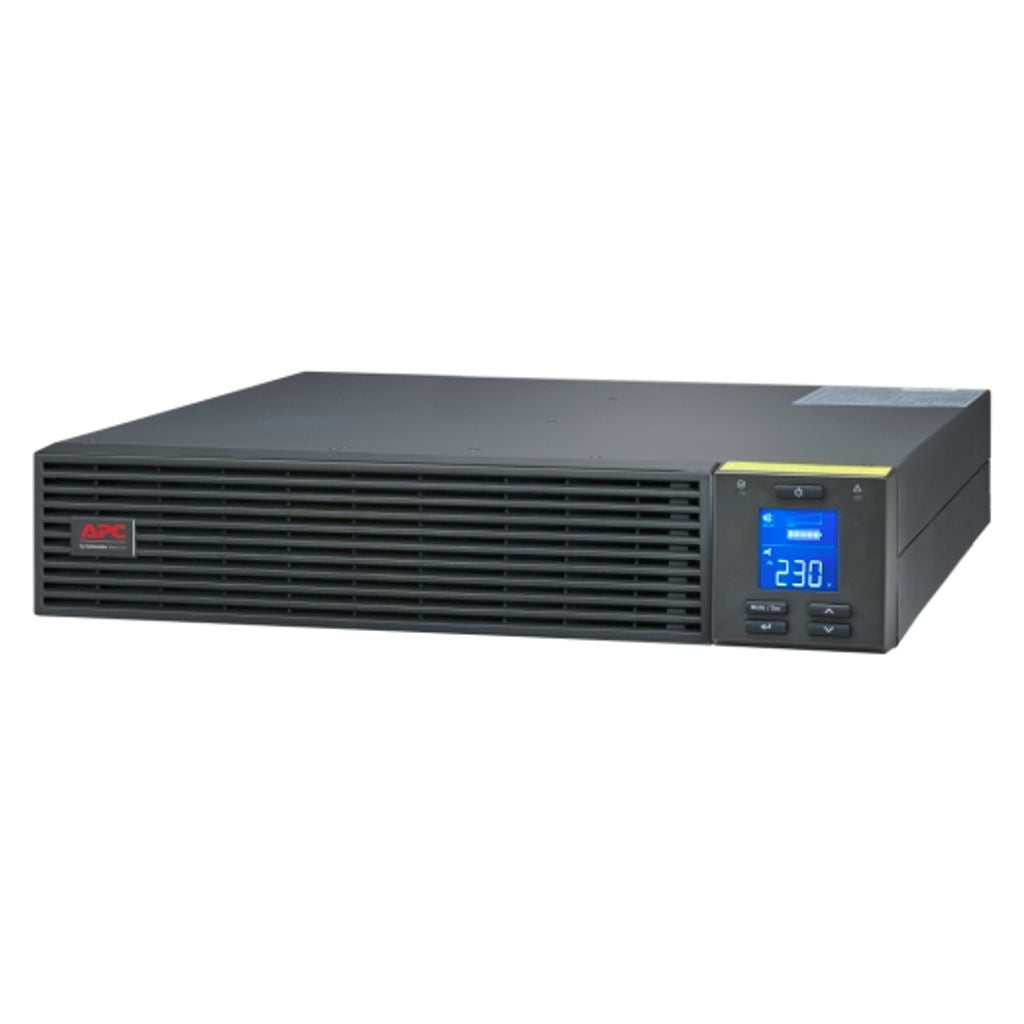

APC Easy UPS On-Line SRV 1000VA RT 230V SRV1KL-IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Automatic internal bypass
-
Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load
-
Automatic restart of loads after UPS shutdown
-
Automatically starts up the connected equipment upon the return of utility power
-
ECO Mode
-
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
-
Input power factor correction
-
Minimizes installation costs by enabling the use of smaller generators and cabling
-
Intelligent battery management
-
Maximizes battery performance, life, and reliability through intelligent, precision charging
-
Intelligent Card Slot
-
Customize UPS capabilities with management cards
-
LCD graphics display
-
Text and mimic diagrams that display modes of operation, system parameters and alarms
-
Rack/Tower convertible
-
Protects the initial investment in the UPS when migrating from tower to rack-mount environment
-
Serial connection
-
Use your PC to access additional power protection and management features for your UPS via a serial port
-
USB connection
-
Use your PC to access additional power protection and management features for your UPS via a USB Port
-
Easy UPS On-Line Features & Benefits
-
Availability
-
Intelligent battery management
-
Maximizes battery performance, life, and reliability through intelligent, precision charging
-
Features
-
Double conversion on-line topology
-
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process
-
The battery is only used as a back-up source
-
Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring
-
Management Software
-
Safety-agency approved
-
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
-
Pure sine wave output on battery
-
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
-
Management Software
-
Allows you to easily monitor your utility power and manage your UPS
-
Intuitive LCD interface
-
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
-
Input power factor correction
-
Minimizes installation costs by enabling the use of smaller generators and cabling
-
High efficiency
-
High efficiency rates that remain stable even at lower operating power levels
-
Generator compatible
-
Ensures clean, uninterrupted power to protected equipment when generator power is used
-
ECO Mode
-
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
-
Manageability
-
LED Indicators
-
Provide easy-to-read status of the unit and utility power conditions
-
LCD graphics display
-
Text and mimic diagrams that display modes of operation, system parameters and alarms
-
Intelligent Card Slot
-
font face="Liberation Sans, sans-serif">Customize UPS capabilities with management cards
-
Serial connectivity
-
Provides management of the UPS via a serial port
-
Network manageable
-
Most models provide remote power management options of the UPS over the network
-
Many do not have NMC embedded
-
Serviceability
-
Disconnected battery notification
-
Warns when a battery is not available to provide backup power
-
Automatic self-test
-
Periodic battery self-test ensures early detection of a battery that needs to be replaced
-
Audible alarms
-
Provides notification of changing utility power and UPS power conditions
-
Predictive failure notification
-
Provides early-warning fault analysis ensuring proactive component replacement
Product Specification
Brand |
APC |
Product Type |
UPS |
Model |
SRV1KL-IN |
Output | |
Output Power Capacity |
800 Watts / 1.0kVA |
Max Configurable Power (Watts) |
800 Watts / 1.0kVA |
Nominal Output Voltage |
230V |
Output Voltage Note |
Configurable for 220 : 230 or 240 nominal output voltage |
Efficiency At Full Load |
88.0 % |
Output Voltage Distortion |
3 % |
Output Frequency (Sync To Mains) |
50/60 Hz +/- 3 Hz Sync to mains |
Other Output Voltages |
220 V, 240 V |
Load Crest Factor |
3 : 1 |
Topology |
Double conversion online |
Waveform Type |
Sine wave |
Output Connections |
(4) India 2/3-pin 6A |
Bypass |
Internal bypass (automatic and manual) |
Input | |
Nominal Input Voltage |
230V |
Input Frequency |
40 - 70 Hz Auto sensing |
Input Connections |
IEC 60320 C14 |
Cord Length |
1.5meters |
Input Voltage Range For Main Operations |
110 - 280 Half load, 160 - 280 Full loadV |
Number Of Power Cords |
1 |
Input | |
Efficiency At Full Load |
88.0 % |
Type Of Input Protection Required |
Circuit breaker |
Other Input Voltages |
220 V, 240 V |
Batteries & Runtime | |
Battery Type |
Lead-acid battery |
Included Battery Modules |
1 |
Typical Recharge Time |
4hour(s) |
Nominal Battery Voltage |
36 V |
Battery Charge Power (Watts) |
30 Watts |
Communications & Management | |
Interface Port(S) |
DB-9 RS-232, Intelligent Smart Slot, USB |
Control Panel |
Multifunction LCD status and control console |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Emergency Power Off (EPO) |
Yes |
Surge Protection And Filtering | |
Surge Energy Rating |
600Joules |
Color |
Black |
Environmental | |
Operating Temperature |
0 - 40 °C |
Operating Relative Humidity |
0 - 95 (Non-condensing) % |
Operating Elevation |
0 - 3000meters |
Storage Temperature |
-20 - 60 °C |
Storage Relative Humidity |
0 - 95 (Non-condensing) % |
Storage Elevation |
0 - 15000meters |
Audible Noise At 1 Meter From Surface Ofunit |
50.0dBA |
Online Thermal Dissipation |
372.0BTU/hr |
Protection Class |
IP20 |
Conformance | |
Approvals |
BIS |
Physical | |
Maximum Height |
88MM, 8.8CM |
Maximum Width |
438MM, 43.8CM |
Maximum Depth |
462MM, 46.2CM |
Rack Height |
2U |
Net Weight |
17.1KG |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
UPS |
Manufacturer Details |
APC Schneider Electric India Private, Ltd. Bearys Global Research Triangle Sy. No. 63/3B, Gorvigere Village, Bidarahalli Hobli, Bangalore East Taluk, Whitefield Hoskote Road Bangalore- 560115 |
Packer Details |
APC Schneider Electric India Private, Ltd. Bearys Global Research Triangle Sy. No. 63/3B, Gorvigere Village, Bidarahalli Hobli, Bangalore East Taluk, Whitefield Hoskote Road Bangalore- 560115 |
Country of Origin |
India |
