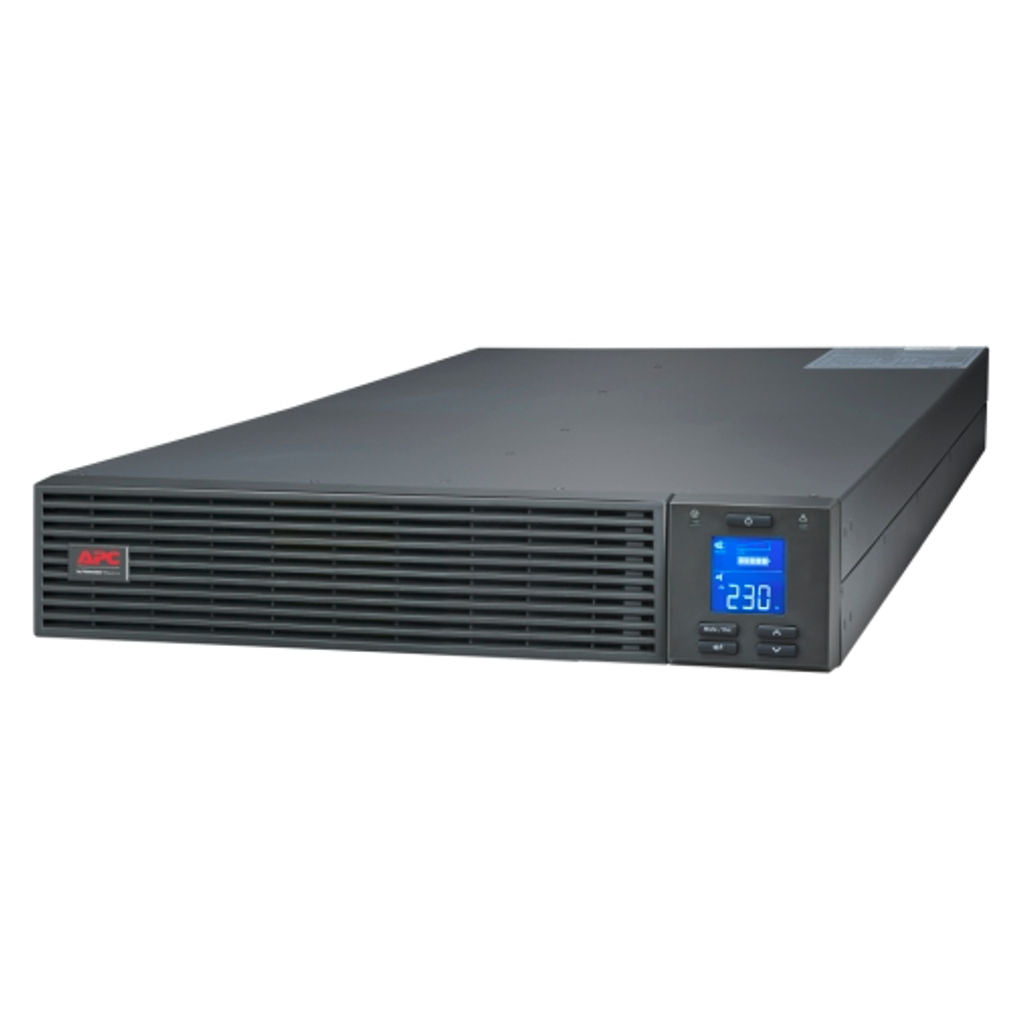

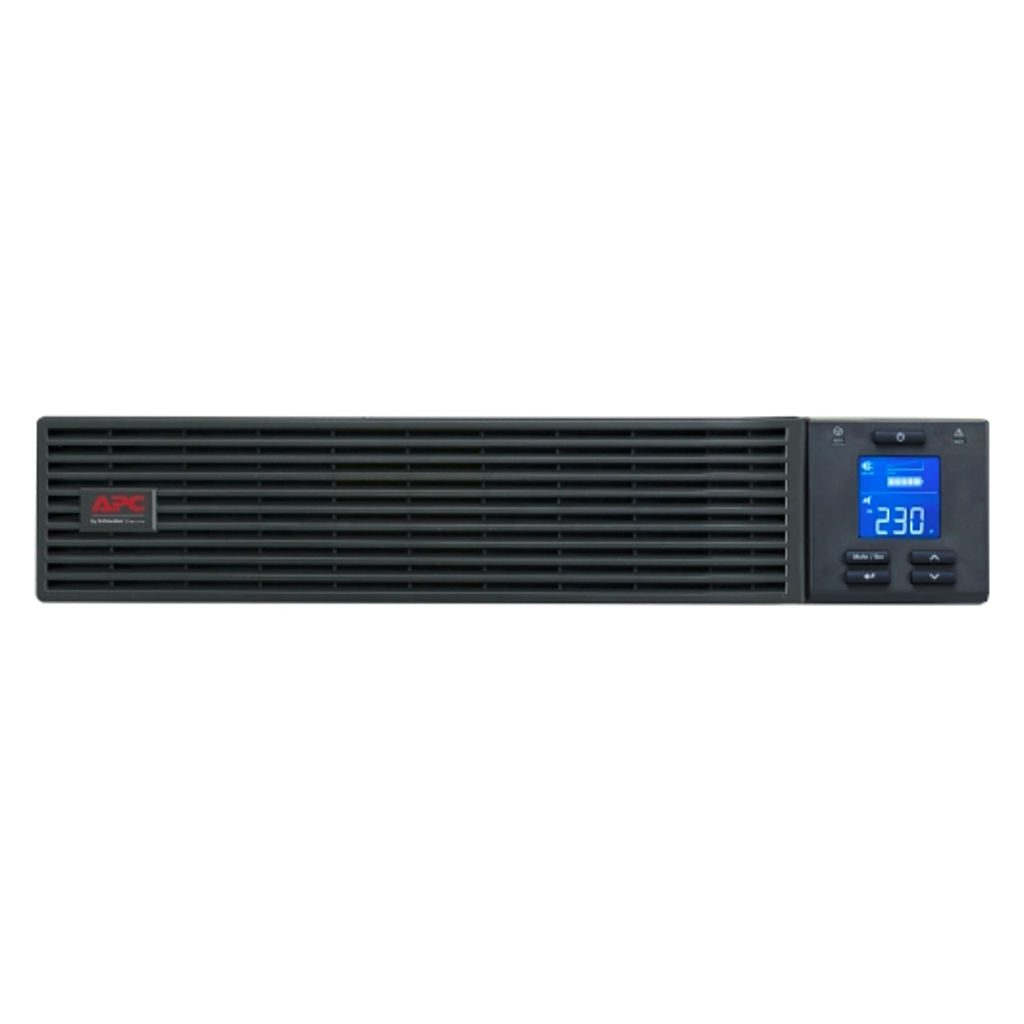

APC Easy UPS On-Line SRV 6000VA RT No Battery 230V SRV6KUXI-IN

APC Easy UPS On-Line SRV 6000VA RT No Battery 230V SRV6KUXI-IN


₹ 98,990.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

  • Automatic internal bypass

  • Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load

  • Automatic restart of loads after UPS shutdown

  • Automatically starts up the connected equipment upon the return of utility power

  • ECO Mode

  • Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

  • EPO

  • Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation

  • Intelligent battery management

  • Maximizes battery performance, life, and reliability through intelligent, precision charging

  • Intelligent Card Slot

  • Customize UPS capabilities with management cards

  • LCD graphics display

  • Text and mimic diagrams that display modes of operation, system parameters and alarms

  • Rack/Tower convertible

  • Protects the initial investment in the UPS when migrating from tower to rack-mount environment

  • Serial connection

  • Use your PC to access additional power protection and management features for your UPS via a serial port

  • USB connection

  • Use your PC to access additional power protection and management features for your UPS via a USB Port

  • Easy UPS On-Line Features & Benefits

  • Availability

  • Intelligent battery management

  • Maximizes battery performance, life, and reliability through intelligent, precision charging

  • Features

  • Double conversion on-line topology

  • Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process

  • The battery is only used as a back-up source

  • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring

  • Management Software

  • Safety-agency approved

  • Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

  • Pure sine wave output on battery

  • Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

  • Management Software

  • Allows you to easily monitor your utility power and manage your UPS

  • Intuitive LCD interface

  • Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys

  • Input power factor correction

  • Minimizes installation costs by enabling the use of smaller generators and cabling

  • High efficiency

  • High efficiency rates that remain stable even at lower operating power levels

  • Generator compatible

  • Ensures clean, uninterrupted power to protected equipment when generator power is used

  • ECO Mode

  • Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

  • Manageability

  • LED Indicators

  • Provide easy-to-read status of the unit and utility power conditions

  • LCD graphics display

  • Text and mimic diagrams that display modes of operation, system parameters and alarms

  • Intelligent Card Slot

  • Customize UPS capabilities with management cards

  • Serial connectivity

  • Provides management of the UPS via a serial port

  • Network manageable

  • Most models provide remote power management options of the UPS over the network

  • Many do not have NMC embedded

  • Serviceability

  • Disconnected battery notification

  • Warns when a battery is not available to provide backup power

  • Automatic self-test

  • Periodic battery self-test ensures early detection of a battery that needs to be replaced

  • Audible alarms

  • Provides notification of changing utility power and UPS power conditions

  • Predictive failure notification

  • Provides early-warning fault analysis ensuring proactive component replacement

Product Specification

Brand

APC

Product Type

UPS

Model

SRV6KUXI-IN

Output

Output Power Capacity

6.0kWatts / 6.0kVA

Max Configurable Power (Watts)

6.0kWatts / 6.0kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency At Full Load

94.0 %

Output Voltage Distortion

1 %

Output Frequency (Sync To Mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform Type

Sine wave

Output Connections

(1) Hard wire 3-wire (H N + E)

Bypass

Internal bypass (automatic and manual)

Input

Input Frequency

40 - 70 Hz Auto sensing

Input Connections

Hard wire 3-wire (1P + N + E)

Input Voltage Range For Main Operations

110 - 300 Half load, 176 - 300 Full loadV

Efficiency At Full Load

94.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery Type

External battery system

Nominal Battery Voltage

192...240 V

Battery Charge Power (Watts)

2.34kWatts

Communications & Management

Interface Port(S)

DB-9 RS-232, Intelligent Smart Slot, USB

Control Panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Surge Protection And Filtering

Surge Energy Rating

600Joules

Color

Black

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-20 - 60 °C

Environmental

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 15000meters

Audible Noise At 1 Meter From Surface Of Unit

60.0dBA

Online Thermal Dissipation

1172.0BTU/hr

Protection Class

IP20

Conformance

Approvals

BIS

Physical

Maximum Height

86MM, 8.6CM

Maximum Width

438MM, 43.8CM

Maximum Depth

612MM, 61.2CM

Rack Height

2U

Net Weight

16.5KG

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

UPS

Manufacturer Details

APC Schneider Electric India Private, Ltd. Bearys Global Research Triangle Sy. No. 63/3B, Gorvigere Village, Bidarahalli Hobli, Bangalore East Taluk, Whitefield Hoskote Road Bangalore- 560115

Packer Details

APC Schneider Electric India Private, Ltd. Bearys Global Research Triangle Sy. No. 63/3B, Gorvigere Village, Bidarahalli Hobli, Bangalore East Taluk, Whitefield Hoskote Road Bangalore- 560115

Country of Origin

India
