SKU # 1000129219

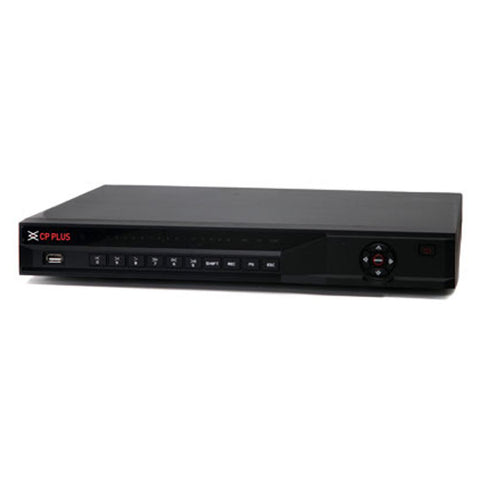

CP Plus 16 Channel Digital Video Recorder 5M-N/1080P CP-UVR-1601K2-I3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 24 channels IP camera inputs, each channel up to 6MP; Maximum 128 Mbps incoming bandwidth
-
Up to 4 channels video stream (analog channel) Perimeter Protection
-
Instastream/ H.265 dual-stream video compression
-
Up to 16 channels video stream (analog channel) SMD Plus
-
Support 2 SATA HDDs up to 16TB Each, 2 USB
-
Up to 2 channels video stream (analog channel) human face recognition
-
IoT and POS functionalities
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
This DVR has gathered momentum across the globe for its outstanding performance and premium record- ing quality as it can be applied in any situation for IP video surveillance
-
This Series of DVRs supports the input, recording and transmission functions
-
Along with that, this DVR also enjoys the help of a built-in deep learning module as this product adopts the vid-eo image that is structured on deep learning algo-rithms
-
CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
Signal Auto-Adapt
This DVR recognizes the signal type (CVI, TVI, AHD, CVBS) and automatically adapts without requiring any manual interven- tion -
This has provided much ease to the user since signal com-patibility was always a towering concern
-
Support In some installations, customers have specific features and functions that are available in cameras, such as two-way communication, edge storage, audio I/O, alarm I/O, etc
-
CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host
of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more -
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively sup-ports CP PLUS devices
Product Specification
| Brand | CP Plus |
| Product Type | Reccorder |
| Product Code | CP-UVR-1601K2-I3 |
| Embedded processor | |
| Operating System | Embedded LINUX |
| IP Camera Input | 16+8ch (analog channels are converted into IP channels), each channel up to 6MP |
| Two-Way Talk | Yes (share the same audio input with the first channel) |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode |
| Video Recording | All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps –25/30 fps) |
| Video Compression | AI Instastream/Instastream/H.265/H.264+/H.264 |
| Video Display Split | 1/4/8/9/16 |
| Video Channel | 16 channels, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel, RCA |
| Audio Input | 1Ch. RCA(external), 16Ch. BNC (coaxial) |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Face | 6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time |
| Hard Disk | 2 SATA Ports, up to 16TB for a single HDD, the Maximum HDD capacity varies with environment temperature |
| Database Management | Up to 10 face databases and 10,000 pictures in total Name, gender, birthday, address, certificate type, certificate No, countries & regions and state can be added to each face picture |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Recording Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Record Interval | 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec |
| Ethernet | 1 RJ-45 Port (10/100/1000 Mbps) |
| Interface Ports | 2 USB Ports (1 USB 2.0 , 1 USB 3.0), 1 RS485, 1 RS232(optional) |
| Protocols | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, ONVIF 21.06, CGI Conformant, InstaOn |
| Power Supply | DC 12V/4A |
| Power Consumption | <12W |
| Working Temperature | -10°C to +55°C (+14°F to +131°F), 10–90% RH |
| Dimension | 375 × 289 ×53 mm |
| Weight | 1.56 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | 16 Channel DVR |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
