Out of Stock!
SKU # 1000103045

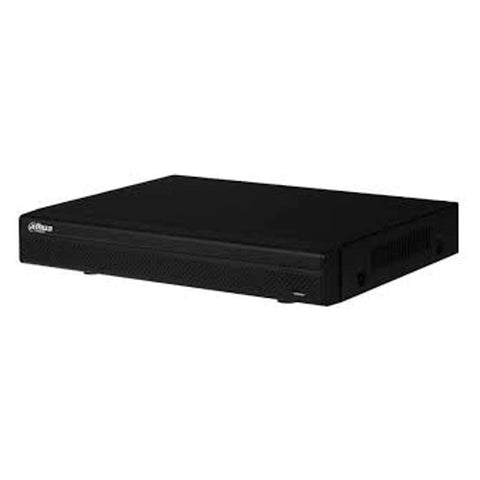

Dahua Digital Video Recorder 16 Channel 1080P 1U DHI-XVR5116HS-S2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.264+/H.264 video compression
-
Support HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 6/12/24 channels IP camera inputs, each channel up
-
to 5MP; Max 24/48/96Mbps IncoMinimumg Bandwidth
-
Smart Search and Intelligent Video System
-
Dahua, as a technology leader, is always the fiRSt ever developed the shining new technology in the security industry ,and today we present XVR-S2 Series. As the perfect solution to upgrade existing video
-
surveillance systems, XVR supports penta-brid access technology such as HDCVI, AHD, TVI, CVBS and IP to effortlessly integrate with popular industry formats, offering an affordable solution loaded with flexibleoptions
-
It supports up to 4/8/16 channels of HDCVI/AHD/TVI/CVBS inputs, and 2/4/8 channels IP camera additionally, 16 channels local live-view channels, and 16 playback channels
-
Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable
-
It is ideal for a wide range of applications such as public safety, retail store, transportation, home protection and education
-
Functions
-
Smart H.264+
-
Smart Codec, H.264+ can reduce up to 70% bit rate and storage requirements without having to invest in new cameras
-
HDCVI/AHD/TVI/CVBS/IP Auto-detect
-
The XVR can auto recognize the signal of front-camera without any
setting. It makes operation more friendly and convenient. -
5MP Resolution
-
The XVR supports up to 5MP HD resolution (2560 x 1920) IPC input for recording, live viewing
-
Coaxial Audio/Upgrade/Alarm
-
The integrated design can reduce wiring troubles which makes it much
more cost-effective and convenient for installation -
The smart fan can automatically turn on or turn off according to the CPU temperature
-
This function can effectively reduce the fan noise to provide a better user experience while extending the life of the fan at the same time
-
Spot Output(XVR5116HS-S2)
-
It is made for a secondary monitor. This allows the operator to view one special monitor that assigned to selected cameras or video inputs from higher security areas
-
Intelligent Video System (IVS)
-
With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance
-
The XVR provides optional standard intelligence at the edge allowing detection of multIPle object behavioRS such as abandoned or missing objects
-
IVS also supports TrIPwire analytics, allowing the camera to detect when a pre-deterMinimumed line has been crossed
-
Face Detection
-
It is a type technology being used in a variety of applications that searchor identify individuals which show front cameras
-
Smart Search
-
This function helps you get more motion detect video during a short time through drawing a region when playback
-
It is very useful when an emergency occuRS
-
Perfect Image Quality
-
High performance chIP provides perfect image quality with better color reproduction
Product Specification
| Brand | Dahua |
| Product Type | Digital Video Recorder |
| Product Code | DHI-XVR5116HS-S2 |
| Main Processor | EmbeddedProcessor |
| Operating System | EmbeddedLINUX |
| Analog Camera Input | 4/8/16 Channel, BNC |
| HDCVI Camera | 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4+2/8+4/16+8 Channel, each channel up to 5MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Resolution | 4M-N, 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Record Rate | Main stream: 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram: D1/CIF/QCIF(1~15fps) |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 Minimum (default: 60 Minimum), Pre-record: 1 ~ 30 sec, Post- record: 10 ~ 300 sec |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-Screen Display | When IP extension mode not enabled: 4CH: 1/4 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 4CH: 1/4/6 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Interface | |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 useRS |
| Smart Phone | IPhone, IPad, AndROId |
| Interoperability | ONVIF 2.42, CGI Conformant |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzeand Screen TIPs |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
| Playback | 4CH: 1/4 8CH: 1/4/9 16CH: 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Internal HDD | 1 SATA Port, up to 8TB capacity |
| ESATA | N/A |
| USB | 4/8CH:2 USB 2.0 16CH:1 USB 2.0 , 1 USB 3.0 |
| RS232 | N/A |
| RS485 | 1 Port, for PTZ Control |
| Power Supply | DC12V/2A |
| Power Consumption | <10W (Without HDD) |
| Installation | Desktop installation |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP PlusDynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1 |
| Dimensions | 260×236×48 mm |
| Weight | 1.5kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
