SKU # 1000102832

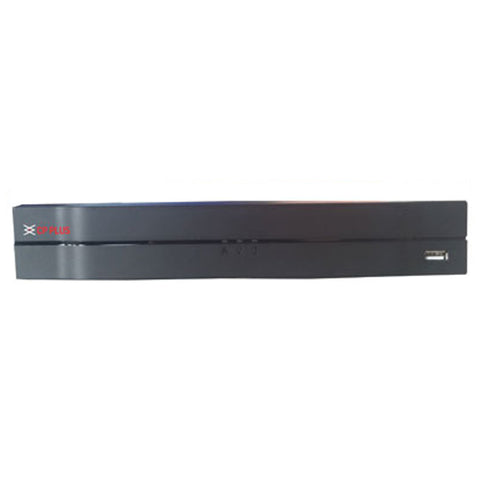

CP Plus Digital Video Recorder 16 Channel CP-UVR-1601K1-I2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 24 channels IP camera inputs, each channel up to 6MP; Maximum 128 Mbps incoming bandwidth.
-
Up to 2 channels video stream(analog channel) Perimeter Protection.
-
H.265+/ H.265 dual-stream video compression
-
Up to 16 channels video stream(analog channel) SMD Plus.
-
Support 1 SATA HDDs up to 10TB each, 2 USB Ports(1 Rear USB 3.0, 1 Front USB 2.0).
-
Up to 2 channels video stream(analog channel) Perimeter Protection
-
1 HDMI / 1 VGA simultaneous video output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | DVR |
| Product Model | CP-UVR-1601K1-I2 |
| Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Ip Camera Input | 16+8 channels, each channel up to 6MP |
| Two-Way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode. |
| Video Recording | Main stream: All channel 5M-N(1fps–10fps); 4M-N/1080P(1fps–15fps); 1080N/720P/960H/ D1/CIF(1fps–25/30fps)Sub stream: D1/CIF(1fps–15fps) |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Video Display Split | 1/4/8/9/16 |
| Video Channel | 16 channels, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Output | 1 channel, RCA |
| Audio Input | 1 channel, RCA |
| Motion Detection | MD Zones: 396(22 × 18) |
| Video Loss | Supports |
| Alarm Output | N/A |
| Alarm Input | N/A |
| Smart Phone | iPhone, iPad, Android Phone |
| Face | Maximum 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
| Hard Disk | 1 SATA Ports, Up to 10TB capacity |
| Database Management | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries® ions and state can be added to each face picture. |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Database Application | Each database can be applied to video channels independently |
| Recording Mode | Manual, Schedule(General, Continuous), MD(Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search(accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Maximum User Account | 128 users |
| Record Interval | 1~60 min(default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port(100Mbps) |
| Interface Ports | 2 USB Ports(1 USB 2.0 , 1 USB 3.0), 1 RS485 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC 12V/2A |
| Power Consumption | <12W |
| Working Temperature | -10°C to +55°C(+14°F to +131°F), 0–90% RH |
| Dimension | 260mm × 238mm × 48mm |
| Weight | 1.0 kg(without HDD) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
