SKU # 1000139347

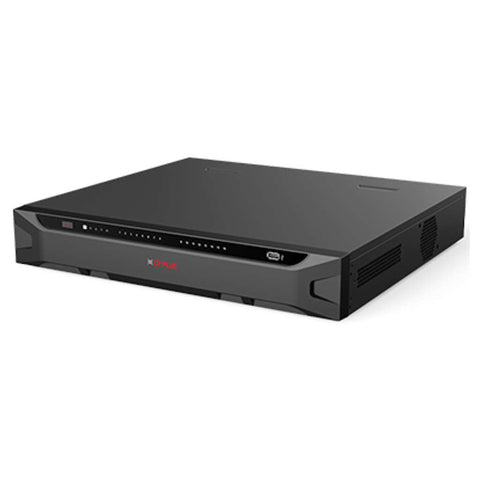

CP Plus 16 Channel Network Video Recorder Without HDD CP-UNR-4K4164-FI
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Up to 16 channel IP camera input
-
Instastream, H.265, H.264+, H.264, MJPEG
-
AI by Recorder: 1 Channel face detection and Recognition, 2 Channel perimeter protection, up to 10 face databases and 20,000 face images, 4 Channel SMD Plus
-
AI by Camera: Face detection and Recognition, Perimeter protection, SMD Plus, ANPR, People counting, Stereo analysis, Heat map
-
AI disabled: 256 Mbps incoming, AI enabled: 180 Mbps in-coming
-
Support 4 SATA ports, up to 16TB, 2 USB (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS232, 1 RS485
-
1 HDMI, 1 VGA Simultaneous/ Heterogeneous video output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Face Detection
-
With the help of the deep learning algorithm that is used in this technology, people can easily be detected, tracked, recorded, and captured
-
It takes only a second to detect one human face
-
Face detection is useful in cameras to help with auto-focus
-
This technology is mainly used to identify the presence of a human face
-
Instastream
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP Plus help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
Smart Motion Detection (SMD Plus)
-
CP Plus has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP Plus IP Cameras, DVRs/ NVRs and Video Door Phones, the CP Plus gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP Plus devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
NVR |
|
Product Model |
CP-UNR-4K4164-FI |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
IP Camera Input |
16 channel |
|
User Interface |
Web, Local GUI |
|
AI By Camera |
Face detection, Face recognition, Perimeter protection, SMD Plus, ANPR, People counting, Stereo analysis, Heat map |
|
AI By NVR |
Face detection, Face recognition, Perimeter protection and SMD Plus |
|
Perimeter Performance AI By NVR |
2 channels, 10 IVS rules for each channel |
|
Perimeter Performance Of AI By Camera |
All channels (8 targets/s) |
|
Face Detection AI By NVR |
1 Channel (up to 12 face images/s each channel) |
|
Video Output |
1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Face Attributes |
Gender, age group, glasses, expressions, face mask, beard |
|
Abnormality Alarm |
Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exception |
|
Face Database Capacity |
Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, Gender, Birthday, Address, Credential type, Credential No., Countries & Regions and state can be added to each face image |
|
Face Recognition AI By NVR |
8 Channel FD (by camera) + FR (by NVR), image stream: 12 face images/s 1 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s |
|
Face Recognition AI By Camera |
All Channels (8 targets/s) |
|
Face Detection AI By Camera |
All Channels (8 targets/s) |
|
Network Bandwidth |
AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
|
Video Display Split |
1st Screen: 1/4/8/9/16; 2nd Screen: 1/4/8/9/16 |
|
ANPR By Camera (Number Of Channels) |
All Channels (4 targets/s) |
|
Decoding Capability |
AI disabled: 2 Channel 16 MP@30 fps, 2 Channel 12 MP@30 fps, 4 Channel 8 MP@30 fps, 4 Channel 6 MP@30 fps, 6 Channel 5 MP@30 fps, 8 Channel 4 MP@30 fps, 16 Channel 1080p@30 fps AI enabled: 1 Channel 16 MP@30 fps, 2 Channel 12 MP@30 fps, 3 Channel 8 MP@30 fps, 3 Channel 6 MP@30 fps, 4 Channel 5 MP@30 fps, 6 Channel 4 MP@30 fps, 12 Channel 1080p@30 fps, 16 Channel 720p@30 fps |
|
Record Mode |
General, motion detection; intelligent; alarm |
|
License Plate Database Capacity |
1. Create up to 20,000 plate numbers; 2. Blocklist and allowlist |
|
Audio Input |
1-channel RCA |
|
Audio Output |
1-channel RCA |
|
Video Resolution |
16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF |
|
Video Compression |
Instastream, H.265, H.264+, H.264, MJPEG |
|
Audio Compression |
G.711a, G.711u, PCM, G726, AAC |
|
Alarm Input |
16 channel |
|
Alarm Output |
4 Channels |
|
Disk Group |
Support |
|
Hard Disk |
4 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature |
|
General Alarm |
Motion detection, Privacy masking, Video loss, Scene changing, PIR alarm, IPC external alarm |
|
Intelligent Alarm |
Face detection, Face recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis, Heat map |
|
Alarm Linkage |
Record, Snapshot, IPC external alarm output, Audio, Buzzer, Log, Preset, Email |
|
Playback Mode |
Instant playback, General playback, Event playback, Tag playback, Smart playback |
|
Multi-Channel Playback |
Up to 16 channels |
|
Interface Ports |
2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 HDMI, 1 VGA, 1 RS232, 1 RS485 |
|
Ethernet |
2 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, auto register, ONVIF 22.06(Profile T, Profile S, Profile G), CGI, SDK |
|
Backup Method |
USB device and network |
|
SMD Plus By Camera |
All Channels (16 targets/s) |
|
SMD Plus By NVR |
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, Rain and lighting condition change |
|
Smart Phone |
iOS, Android |
|
Browser |
Chrome, IE9 and later, Firefox |
|
Power Supply |
100–240 VAC, 50-60Hz |
|
Power Consumption |
<10 W (without HDD) |
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
|
Operating Humidity |
10%–93% (RH), non-condensing |
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
|
Dimension |
440 × 415.6 × 76 mm |
|
Weight |
4.25 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
44 x 41.5 x 7.6 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
4.3 kg |
|
Generic Name |
16 Channel NVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
