SKU # 1000117024

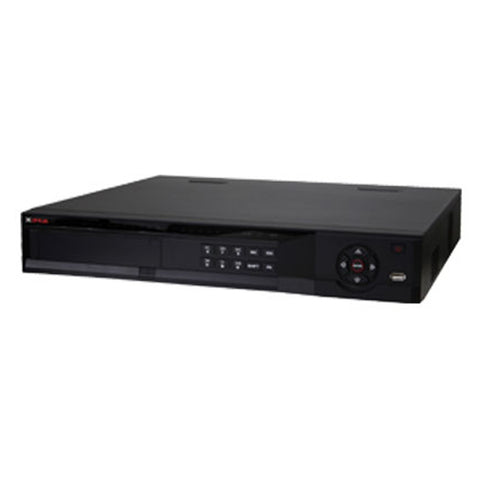

CP Plus 4K Network Video Recorder 32 Channel CP-UNR-4K4324-I

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
32 Channel IP video access
-
Access, storage or forwarding at 256 Mbps (160 Mbps when AI function enabled)
-
Support 4 SATA HDDs up to 10TB Each, 2 USB Ports
-
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
-
1 HDMI / 1 VGA simultaneous video output
-
Support Multi-brand network cameras
-
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
Brand |
CP Plus |
Product Type |
NVR |
Product Model |
CP-UNR-4K4324-I |
Processor |
Industrial-grade embedded processor |
Operating System |
Embedded LINUX |
User Interface |
Web; local GUI |
Video Output |
1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
IP Camera Input |
32 channel |
Resolution |
16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720P; D1 |
Video Compression |
H.265/Smart H.264+/H.264/MJPEG |
Encode Strategy |
Instastream |
Video Display Split |
1st Screen: 1/4/8/9/16/25/36 ; 2nd Screen: 1/4/8/9 |
Audio Compression |
PCM; G.711A; G.711U; G.726 |
Decoding Capability |
AI off: 1 channel × 16MP@20fps; 1 channel × 12MP@20fps; 2 channels × 8MP@30fps; 4 channels × 5MP@30fps; 5 channels × 4MP@30fps; 10 channels × 1080p@30fps AI on: 1 channel × 16MP@20fps; 1 channel × 12MP@20fps; 2 channels × 8MP@30fps; 3 channel × 5MP@30fps; 4 channels × 4MP@30fps ; 8 channels × 1080p@30fps |
Audio Output |
1 Channel |
Audio Input |
1 Channel |
Alarm Input |
16 Channel |
Alarm Output |
6 Channel |
Camera Blank |
Supports |
Motion Detection |
Supports |
Video Loss |
Supports |
Alarm Linkage |
Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
AI by Camera |
Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
General Alarm |
Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
AI by Device |
Face detection; face recognition; perimeter protection; SMD Plus |
Hard Disk |
4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature |
Recording Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
Backup Mode |
USB device |
Playback |
Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off |
Ethernet |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
Interface Ports |
1 front USB 2.0 port, 1 rear USB 3.0 port , 1 RS485, 1 RS232 |
Protocols |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; InstaOn; auto register; ONVIF (profile T/S/G); CGI; SDK |
Power Consumption |
Total output of NVR is ≤ 8 W (without HDD) |
Dimension |
440.0 mm × 415.6 mm x 76.0 mm |
Weight |
4.25 kg |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
440.0 mm × 415.6 mm x 76.0 mm
|
Unit of Measurement |
1 Piece |
Weight |
4.25 kg |
Generic Type |
16 Channel NVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
