Out of Stock!
SKU # 1000103132

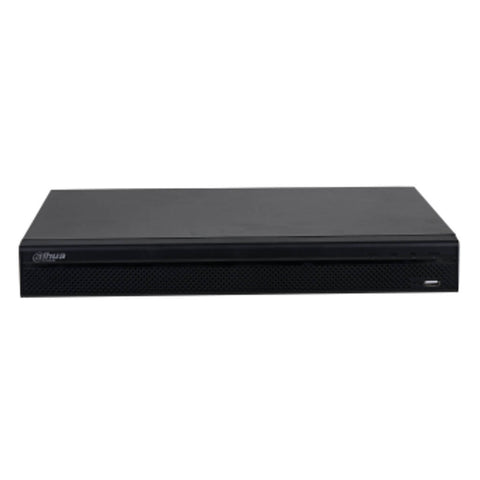

Dahua Network Video Recorder 32 Channel 1U 2HDD DHI-NVR4232-4KS2/L
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
New 4.0 user interface, Security baseline 2.1
H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
Maximum decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
Supports mainstream cameras of ONVIF and RTSP protocols
P2P remote surveillance, video play on mobile device
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
Series Overview
This AI network video recorder is a highly cost-effective product,providing functions such as local live view, multi-Screen display,real-time storage on local HDD, fast operation by mouse, and remote management and control
This product is suitable for face detection andrecognition at entrances and exits, and perimeter protection of people and vehicles
Face Detection
Face detection is to detect if there is any human face appearing in the video
This technology adopts a deep learning algorithm to support face detection, tracking, optimization andcapturing, and then output the best face snapshot
Face Recognition
Dahua Face Recognition technology extracts the features of captured faces and compares them with those in face database to recognize the person identityPerimeter Protection
Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to perform secondary recognition for the targets
Improving alarm accuracy
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm
AI Search
Support AI seach by metadata of different targets or uploading face pictures to device and comparing them with recorded faces by similarity
Enable operators to quickly and easily search through multi Channels and long duration, efficiently find out when and where a person of interest appeard
Smart Fan The NVR is equipped with a smart fan to achieve high cooling efficiency
It automatically turns on or turns off according to CPU and ambient temperature
-
The fan is long-lasting and low noise, reducing maintenance costs and improving the user experience
Product Specification
| Brand | Dahua |
| Product Type | Netwok Video Recorder |
| Product Code | DHI-NVR4232-4KS2/L |
| Main Processor | Industrial-grade embedded processor |
| OS | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Perimeter Protection | by Camera |
| Performance | 8 Channels |
| AI Search | Search for pictures by Channel, time and event type, Search for pictures by Channel, time and face attributes, Search by target classification (human, vehicle) |
| Performance | 4 Channels |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| Performance | 12 Channels |
| Access Channel | 32 |
| Network Bandwidth | Access: 160 Mbps; Storage: 128 Mbps; Forward: 48 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Multi-Screen Display | 1 , 4, 8, 9, 16, 25, 32 views |
| Third-party Camera Access | ONVIF; RTSP |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access | AndROId; iOS |
| Interoperability | ONVIF(profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; firefox |
| Multi-Channel Playback | Up to 16 Channels for playback |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Backup | USB storage device |
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full Screen, backup (video clip/file), partial zoom in, and audio on/off |
| Disk Group | Yes |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Alarm Linkage | Recording, snapshot, local external alarm output, audio, buzzer, log, preset, and email |
| Audio Input | 1 × RCA input |
| Audio Output | 1 × RCA output |
| HDD | 2 SATA III ports, up to 10 TB for a single HDD The maximum HDD capacity varies with environment temperature |
| Alarm Input | 4 |
| Alarm Output | 2 |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| General Parameter | |
| Power Supply | 12 V DC, 4A |
| Power Consumption | < 5.6 W (HDD not included, idling) |
| Operating Conditions | –10 °C to +55 °C (+10 °F to +131 °F) |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 10c/o~93c/o |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000 m (9842.52 ft) |
| Installation | Desktop/Rack mount |
| Certifications | CE: EN62368-1; EN55032,EN55024, EN55035, EN61000- 3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B |
| Dimensions | 375.0 × 282.9 x 53.0 mm |
| Weight | 2.6 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
32 Channel NVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
