Out of Stock!
SKU # 1000096526

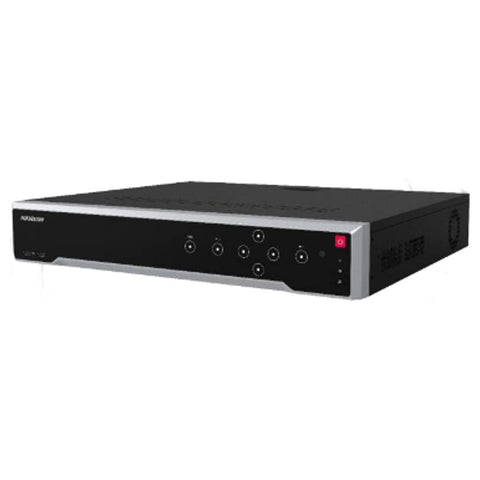

Hikvision Ultra Series NVR 32 Channel DS-8632NI-K8
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Professional and Reliability
-
H.265+ compression effectively reduces the storage space by up to 75%
-
Adopt stream over TLS encryption technology which provides more securer stream transmission service
-
Support double verification for playback and downloadin
-
HD Video Output
-
Provide independent HDMI and VGA outputs
-
HDMI video output at up to 4K resolution
-
Storage and Playback
-
8 SATA interfaces (up to 8 TB capacity for each HDD)
-
8/16-ch synchronous playback
-
Smart Function
-
Support multiple VCA (Video Content Analytics) events
-
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
-
Network & Ethernet Access
-
2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
-
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
-
Support web access without plug-in
Product Specification
|
Brand |
Hikvision |
|
Product Type |
NVR |
|
Product Code |
DS-8632NI-K8 |
|
Series |
Ultra |
|
Video And Audio |
|
|
Ip Video Input |
32-ch Up to 8 MP resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Incoming Bandwidth |
256 Mbps |
|
Outgoing Bandwidth |
160 Mbps |
|
HDMI 1 Output |
4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
HDMI 2 Output |
1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
VGA 1 Output |
1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
VGA 2 Output |
1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
Video Output Mode |
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
|
Audio Output |
2-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
Decoding |
|
|
Decoding Format |
H.265+/H.265/H.264+/H.264/MPEG4 |
|
Recording Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous Playback |
16-ch |
|
Capability |
2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726 |
|
Network |
|
|
Remote Connections |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS |
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
Serial Interface |
RS-232, RS-485, keyboard |
|
SATA |
8 SATA interfaces |
|
ESATA |
1 eSATA interface |
|
Capacity |
Up to 8 TB capacity for each disk |
|
Alarm In/Out |
16/4 |
|
USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption (without Hdd) |
≤ 30 W |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension |
445 × 470 × 94 mm (17.5"× 18.5" × 3.7") |
|
Weight |
≤ 8 kg (17.6 lb) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
32 Channel NVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
