SKU # 1000136477

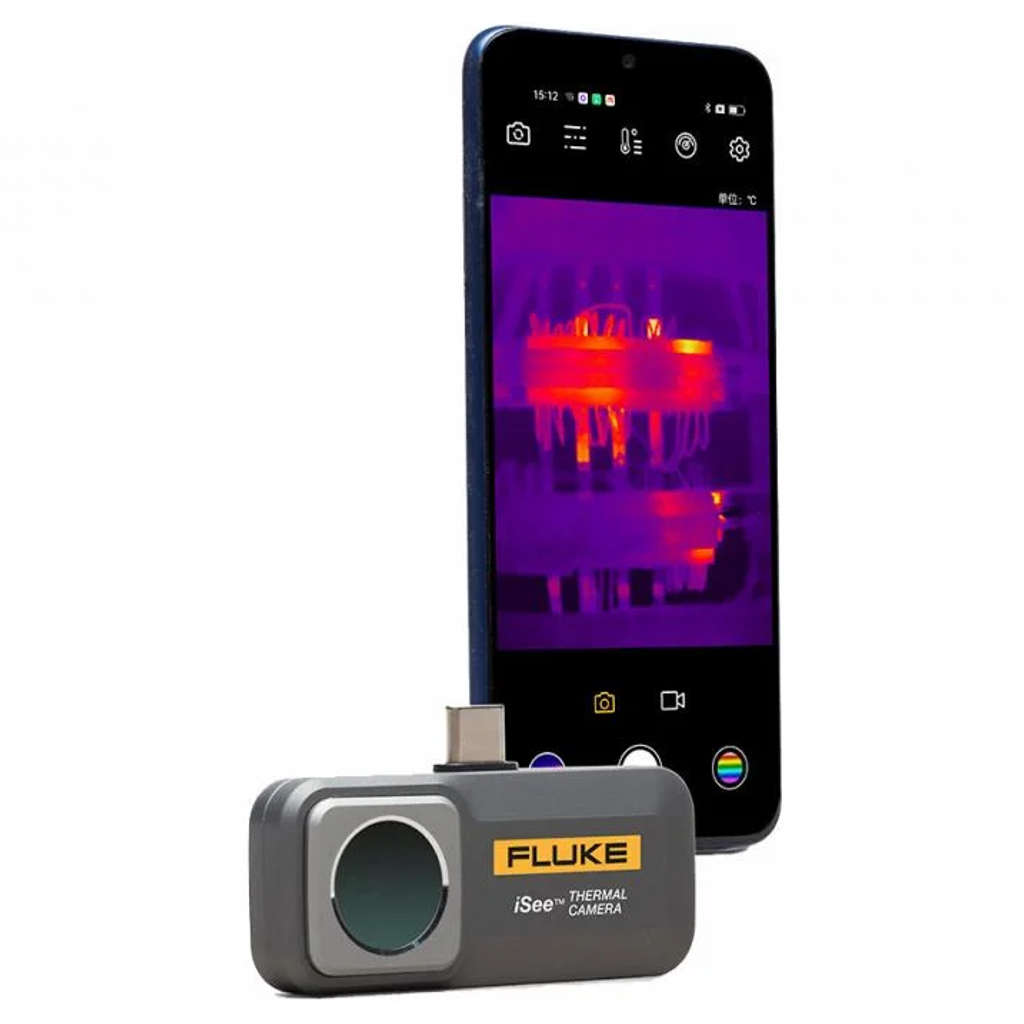

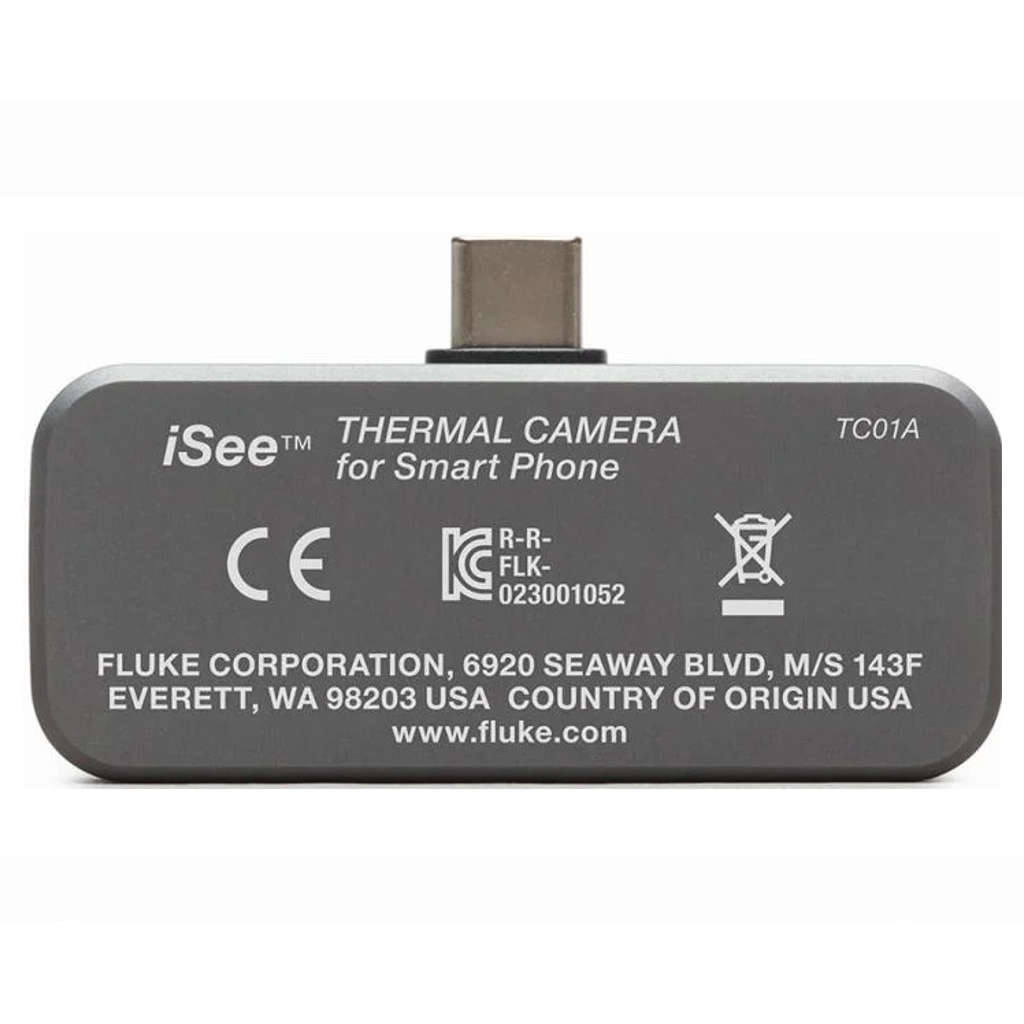

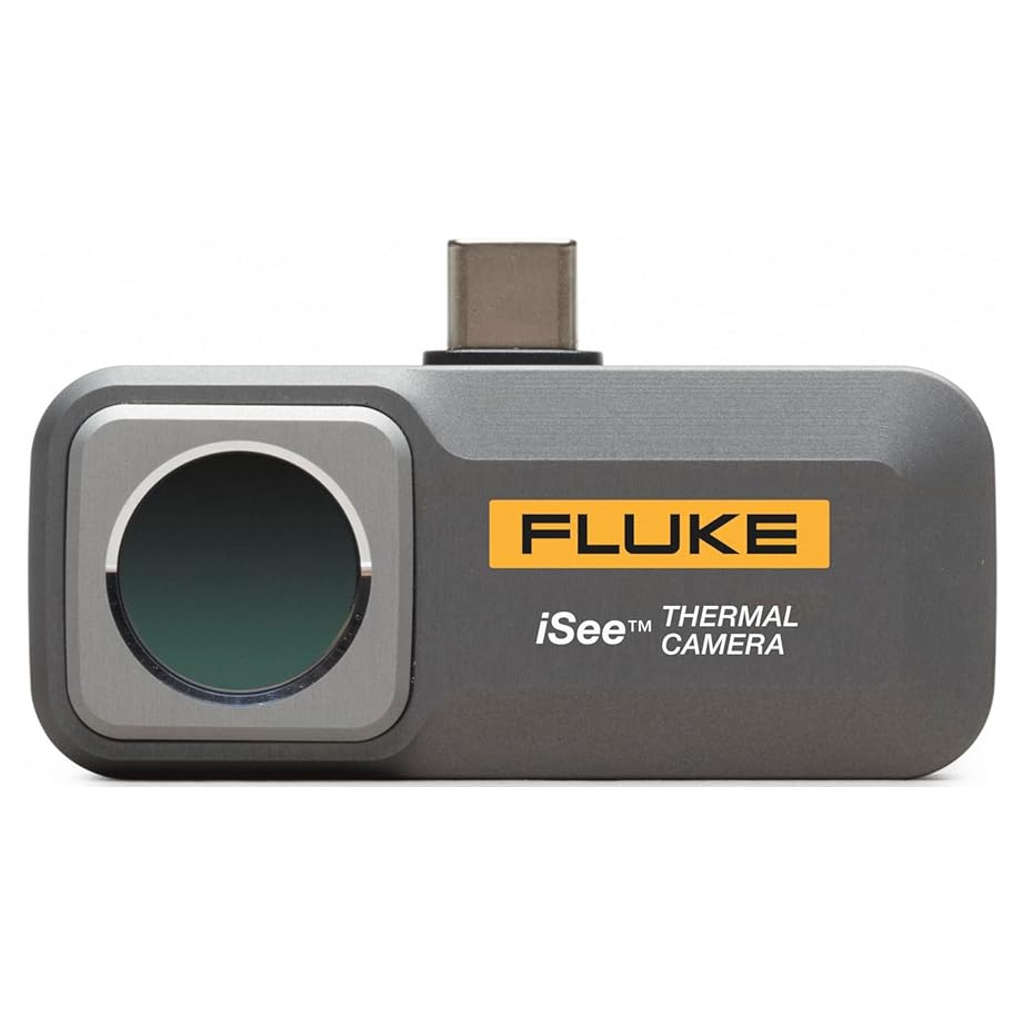

Fluke iSee Mobile Thermal Camera TC01A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
-
Up to 550 °C (1022°F), suitable to use in many applications
-
50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
-
Customize image view with more than 10 standard or custom color palettes
-
Compact design as light as 22 g
-
Experience fast and easy inspections on the go with Fluke iSee Mobile Thermal Camera, weighing just 22g
-
It takes only a second to start using
-
The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating
-
Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate
-
Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics
-
Detailed Image Quality Comparable To Professional Thermal Imagers
-
256 x 192 pixels, detailed image quality
-
-10 to 550 °C (14 to 1022 °F) range, covering wide applications
-
50 mk (0.05 °C) thermal sensitivity for fine screening
-
± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
-
25 Hz frame rate, smooth video without lag
-
More than 10 standard and custom color palettes to achieve a variety of personalized images
-
Full Temperature Range Analysis
-
Real-time high and low-temperature capture, without missing any details
-
Adjustable emissivity to cope with different materials
-
Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
-
Real-time temperature alarm, timely response, and handling
-
Unattended automatic time-lapse photography
-
Infrared and visible light image comparison for locating, comparing, and archiving
-
Real-Time Image Sharing, Communication Without Barriers
-
Real-time image and video sharing and management, fast and efficient communication
-
It is easy to add image annotations, and communication without barriers
-
Small And Portable, It Takes A Second To Get Started
-
Compact design as light as 22 g (0.78 oz), perfect for your mobile phone size
-
The iSeeTM is made of high-quality aluminum material for the airway, with uniquely treated and laser-etched surface
-
1-meter drop test, IP54 ingress protection, Fluke durability
-

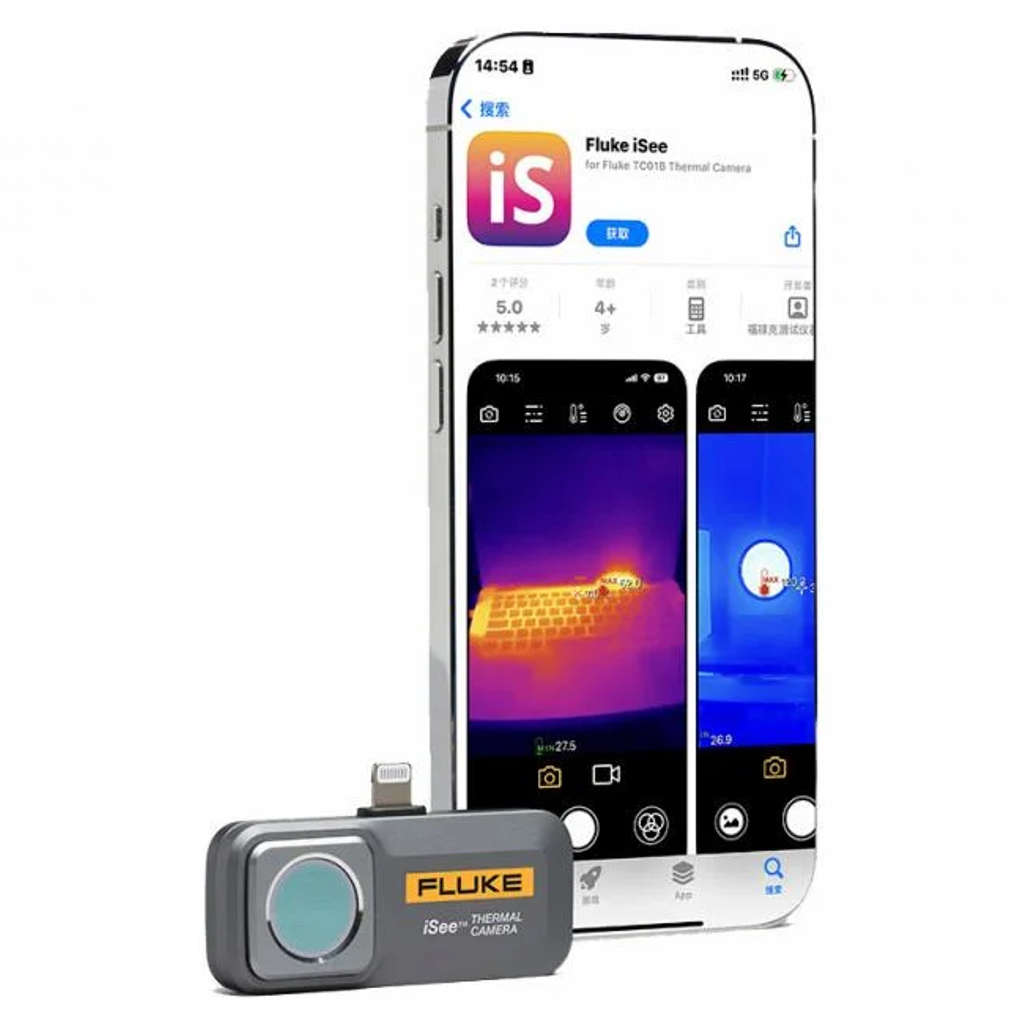

Optimized Fluke iSeeTM application interfaces and menus with professional operating experience make it easy to access all functions
Product Specification
| Brand | Fluke |
| Product Type | Mobile Thermal Camera |
| Product Model | iSee |
| Product Code | TC01A |
| IR Resolution | 256 x 192 |
| Pixel Size | 12 μm |
| Temperature Range | -10 °C to 550 °C/14 °F to 1022 °F |
| Temperature Accuracy | ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature) |
| Temperature Measurement Distance | 0.25 m to 5 m (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m) |
| Frame Rate | 25 Hz |
| Warm-Up Time | 1 minute |
| Focal Length | Fixed focal length: 3.2 mm |
| Shutter Mode | Internal |
| Thermal Sensitivity (netd) | 50 mK |
| Spectral Range | 8 to 14 μm |
| Field Of View (H x V) | 56° x 42° |
| Spatial Resolution | 3.81 mrad |
| General Specifications | |
| Usb Interface | Type-C |
| Operating Temperature | 0 ℃ to 40 ℃/32 °F to 104 °F |
| Storage Temperature | -30 ℃ to 60 ℃/–22 °F to 140 °F |
| Operating Humidity | 10 % to 90 % RH, non-condensing |
| Power Consumption | 350 mW (Typical) |
| Drop Test | 1 m/3.3 ft |
| Ingress Protection | IEC 60529: IP54 (with the protective cover for Type C) |
| Operating Altitude | 2 000 m/6 562 ft |
| Storage Altitude | 12 000 m/39 370 ft |
| Dimensions (L x W x H) | 60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in |
| Warranty | 2 Years |
Other Details
| Dimension (CM) - L x B x H | 6 x 3.35 x 1.12 |
| Unit of Measurement | 1 Piece |
| Weight | 2.5 kg |
| Generic Type | Thermal Cameras |
| Manufacturer Details | Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
| Packer Details | Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
| Country of Origin | India |
