SKU # 1000136531

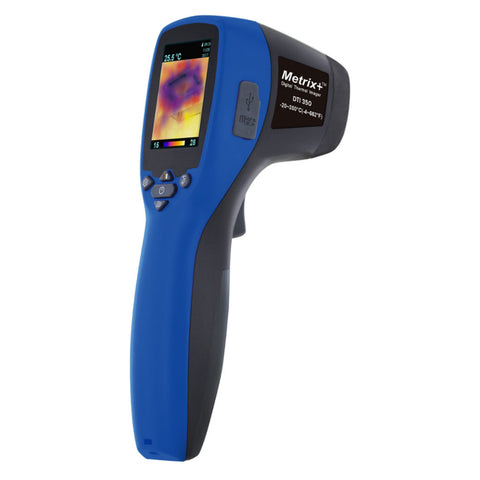

Metrix Plus Infrared Thermal Imager DTI 350

Metrix Plus Infrared Thermal Imager DTI 350

Visit the Metrix Plus Store

₹ 48,810.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • DTI 350 measures -20 ~ 350°C with real time temperature monitoring

  • Features

  • Hybrid color profiles with fusion of visible and infrared image for easier testing

  • Real time display min and maximum temperature

  • SD support for capturing and storage of visual and infrared image

  • PC software support for transfer of stored images and CSV file of temperature map

  • Rechargeable battery

  • Ergonomic design

  • Applications

  • These detect temperature changes of everything above absolute zero temperatures, hence have a wide application from non-destructive testing and monitoring of temperatures of structures and electrical equipment, medical imaging, chemical imaging, aerial surveillance, thermography and many more

  • Measuring Principle

  • Infrared Thermal Imagers usually detect radiation in the long-infrared range of the electromagnetic spectrum (9–14 µm) and produce images of that radiation, allowing to see variation in temperatures of the surroundings

ProductSpecification

Brand

Metrix Plus

Product Type

Thermal Imager

Product Model

DTI 350

Thermal Image Resolution

32x32

Visual Image Resolution

640x480

Measurement Range

-20~350°C (-4~662°F)

Accuracy (Tamb=20~26°C)

±2% of reading, or 2°C(4°F) whichever is greater

Thermal Sensitivity

0.1°C(0.1°F)

Frame Rate

9Hz

Field Of View

33x33 deg

Emissivity Range

0.95 default – adjustable 0.1 to 1 step .01

Focus

Focus free

LCD (Inch)

2.8

LCD Type

Color

Image Storage

Depends on the capacity of the micro SD card. (ex: stores up to 100,000 images, PNG format, for 16G micro SD card)

Memory Type

Support micro SD card up to 32G (Recommend to use the attached 16G micro SD card)

Spectral Range

8~14um

Interface

USB

Battery Type

3.7V Li-ion rechargeable battery

Battery Life (With Backlit)

3 hrs continuous use

Dimensions

96.29 x 74.03 x 233.68 mm

Weight

345 g (Including the battery)

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

96.2 x 74 x 233

Unit Of Measurement

1 Piece

Weight

0.345 kg

Generic Type

Thermal Cameras

Manufacturer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Packer Details

Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001

Country Of Origin

India
