SKU # 1000136532

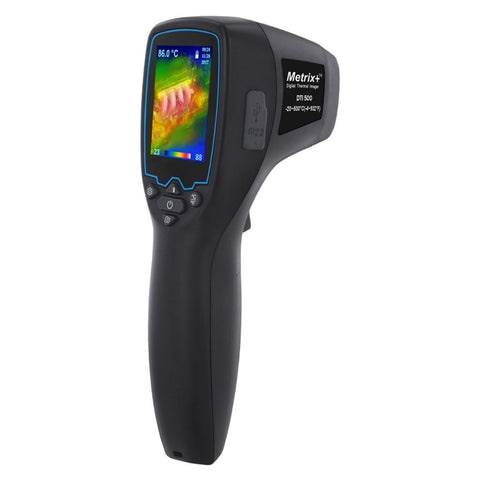

Metrix Plus Infrared Thermal Imager DTI 500

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Key Features
-
DTI 500 measures -20 ~ 500°C with real time temperature monitoring
-
Features
-
High Thermal Resolution 160x120 with 51 x 63.5 field of view
-
Hybrid color profiles with fusion of visible and infrared image for easier testing
-
Real time display min and maximum temperature
-
SD support for capturing and storage of visual and infrared image
-
PC software support for transfer of stored images and CSV file of temperature map
-
Rechargeable battery
-
Ergonomic design
-
Applications
-
These detect temperature changes of everything above absolute zero temperatures, hence have a wide application from non-destructive testing and monitoring of temperatures of structures and electrical equipment, medical imaging, chemical imaging, aerial surveillance, thermography and many more
-
Measuring Principle
-
Infrared Thermal Imagers usually detect radiation in the long-infrared range of the electromagnetic spectrum (9–14 µm) and produce images of that radiation, allowing to see variation in temperatures of the surroundings
ProductSpecification
Brand | Metrix Plus |
Product Type | Thermal Imager |
Product Model | DTI 500 |
Thermal Image Resolution | 160x120 |
Visual Image Resolution | 640x480 |
Measurement Range | -20~500°C (-4~932°F) |
Accuracy (Tamb=20~26°C) | ±2% of reading, or 2°C(4°F) whichever is greater |
Thermal Sensitivity | 0.1°C(0.1°F) |
Frame Rate | 9Hz |
Field Of View | 51x63.5 deg |
Emissivity Range | 0.95 default – adjustable 0.1 to 1 step .01 |
Focus | Focus free |
LCD (Inch) | 2.8 |
LCD Type | Color |
Image Storage | Depends on the capacity of the micro SD card. (ex: stores up to 100,000 images, PNG format, for 16G micro SD card) |
Memory Type | Support micro SD card up to 32G (Recommend to use the attached 16G micro SD card) |
Spectral Range | 8~14um |
Interface | USB |
Battery Type | 3.7V Li-ion rechargeable battery |
Battery Life (With Backlit) | 4 hrs continuous use |
Dimensions | 96.29 x 74.03 x 233.68 mm |
Weight | 345 g (Including the battery) |
Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
Dimension (CM) - L x B x H | 96.2 x 74 x 233 |
Unit Of Measurement | 1 Piece |
Weight | 0.345 kg |
Generic Type | Thermal Cameras |
Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
Country Of Origin | India |
