SKU # 1000067466

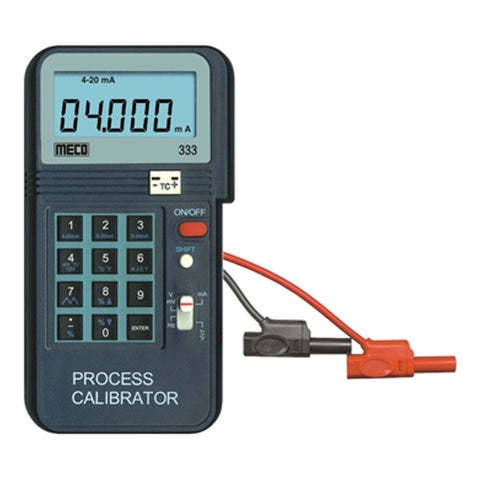

Meco Multifunction Process Calibrator 333
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
4 - 20mA (1KΩ Load, 24V Loop Supply) with1mA Resolution
-
0 -100.00mV, 0-1.0000V, 0-12.000V
-
K, J, E & T Thermocouples (°C and °F)
-
Frequency : 1-62500 Hz
-
DC Current Basic Accuracy : 0.025%
-
Easy Key Pad Number Operation
-
Easy Step and Auto Ramp Functions
-
0-20mA & 0-24mA Selectable
-
0-100% Output (mA, mV, V)
-
Beeper Warning when Output is Open (mA) or Short (mV,V )
Product Specification
Brand |
Meco |
Product Model |
333 |
Product Type |
Calibrator |
Measuring Parameters |
Frequency, K, J, E, T type Thermocouples, mA DC Current, mV,VDC Voltage |
mA DC Current |
4-20mA, 0-20mA, 0-24 mA |
Accuracy |
±0.025%±3mA |
Resolution |
1mA |
mV,VDC Voltage |
0-1.0000 V |
Accuracy |
±0.05%rdg±300 mV |
Resolution |
100 mV |
Frequency |
126-62500 Hz |
Accuracy |
± 0.01% ± 0.04 Hz |
Resolution |
1 Hz |
Operating Temperature |
0℃ to 50℃ |
Operating Humidity |
RH <85% |
Storage Temperature |
-20 to +60°C |
Storage Humidity |
RH <85% |
Power Supply |
4-20mA (1KVLoad, 24V Loop Supply)with 1mA Resolution |
Display |
4 and 5 Digits LCD Display with Annunciator |
Environment |
Operating: 0 ºC to 50 ºC (32 to 122 ºF), RH < 85%|Storage: -20 ºC to 60 ºC (-4 to 140 ºF), RH < 85% |
Battery Type |
9V Eveready Type 216 or Equivalent & External Battery Pack (6 x 1.5 V AA Batteries) |
Accessories |
Carry Bag x 1|Users Manual x 1|K Type Thermocouple Connector x 1|External Battery Pack Holder(with 6 x 1.5 V AA Batteries) x 1|9V Battery (Fitted-in) x 1|Pair of Test Leads x 1|Pair of Alligator Clip x 1 |
Dimensions |
88 x 168 x 38mm(approx.) |
Weight |
330 Grams |
Warranty |
1 Year |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Calibrator |
Manufacturer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Packer Details |
Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
Country of Origin |
India |
