SKU # 1000136652

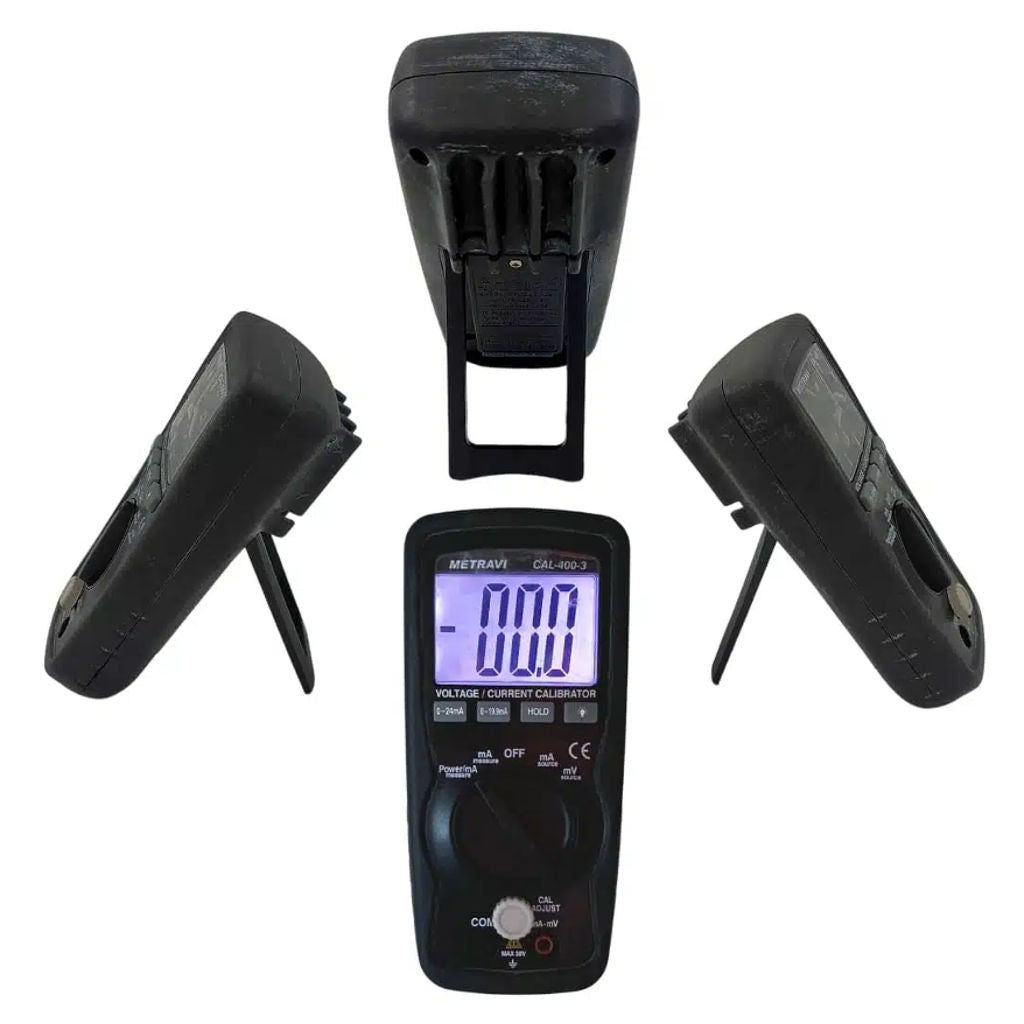

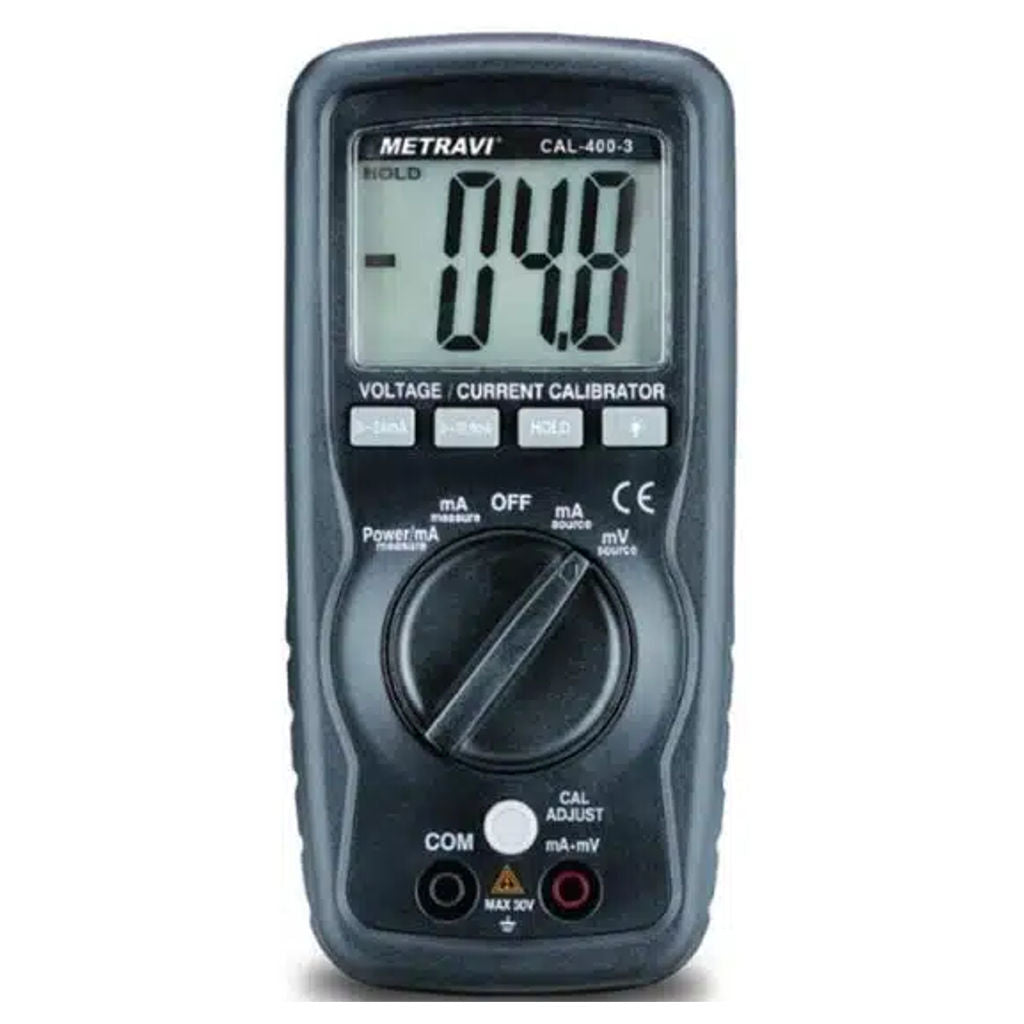

Metravi Calibrator CAL-400-3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
Portable instrument for Calibrating process devices and measuring Process signals
-
The Instrument Powers or measures a two wire Current loop
-
Adjustable 0-24mA current source
-
Adjustable-199.9mV to +199.9mV DCV Source
-
Current Calibrator drives loads up to 500 ohms
-
Four function provide the quality and accuracy of Hand Held Calibrator
-
Precision current source
-
Measurement of a current signal
-
Power and measurement of two wire loop
-
Precision DC mV Source
ProductSpecification
Brand | Metravi |
Product Type | Calibrator |
Product Model | CAL-400-3 |
Display | LCD display max display counts 1999 |
Sampling Time | 0.4 sec |
Power Consumption | 12mA |
Power Source | Battery Operated |
Battery Type | Alkaline |
Battery Size | 9V |
No Of Batteries | 1 |
DC mV | -199.9mA to ±199.9mV |
Current Source | 0 – 19.99mA/24mA |
Current Source Accuracy | ±0.25% |
DC mV Accuracy | ±0.25% |
Current Measurement | 0 – 19.99mA/24mA |
Current Measurement Accuracy | ±0.25% |
Two Wire Loop Measurement | Power & Current Measurement : 0 – 19.99mA / 0 – 24mA |
Accuracy | ±0.25% |
Dimension | 150 x 70 x 40 mm |
Weight | 232 g |
Warranty | 1 Year |
OtherDetails
Dimension (CM) - L x B x H | 15 x 7 x 4 |
Unit Of Measurement | 1 Piece |
Weight | 0.232 kg |
Generic Type | Calibrator |
Manufacturer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Packer Details | Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Country Of Origin | India |
