SKU # 1000136726

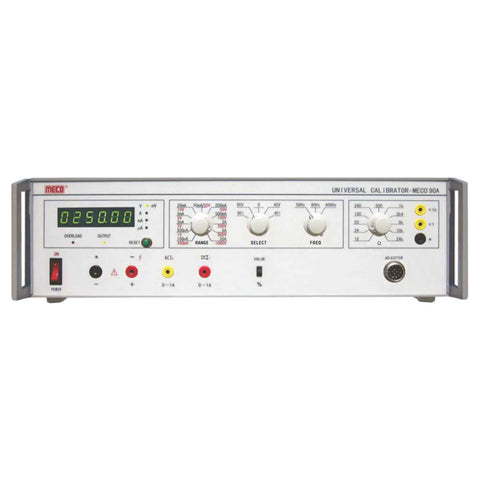

Meco Universal Calibrator 90A

Meco Universal Calibrator 90A

Visit the Meco Store

₹ 771,360.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • 90A Universal Calibrator gives a standard output for AC Voltage, DC Voltage, AC Current & DC Current

  • Keys or Knob help to adjust the magnitude of the output signals. Important features include wide range, high accuracy, good stabilization, easy operation and portability

  • The Calibrator is ideal for testing ammeters and voltmeters upto 0.2 accuracy class

  • Appliacations

  • Calibration of AC Volt, Amp, Frequency Meters

  • Calibration of DC Volt, Amp Meters

  • Calibration of Resistance Meters, Clamp Meters, Multimeters

ProductSpecification

Brand

Meco

Product Type

Calibrator

Product Model

90A

Voltage Control

Output Voltage Range

200mV, 1V, 2V, 5V, 10V, 20V, 50V, 100V, 200V, 500V, 1000V

Basic Error

DCV : ± (0.03 %RD + 0.02 %FS)
ACV : ± (0.05 %RD + 0.03 %FS)

Current Control

Output Voltage Range

100μA, 500μA, 2mA, 5mA, 20mA, 50mA, 200mA, 500mA, 2A, 5A, 20A

Basic Error

DCI : ± (0.05 %RD + 0.02 %FS)
ACI : ± (0.07 %RD + 0.03 %FS)

Frequency Control

Frequency Range

50Hz, 60Hz, 400Hz

Frequency Error

< 1 %

Resistance Control

Resistance Range

10, 24, 50, 100, 240, 500 (Ω), 1, 2.4, 5,
10, 24 (kΩ), 10x1k, 24x1k, 50x1k,
100x1k, 240x1k, 500x1k, 1kx1k,
2.4kx1k, 5kx1k, 10kx1k, 24kx1k

Basic Error

± 0.2 % +20mΩ

Stability DC

< 0.01 %FS / 2 min, AC : < 0.03 %FS / 2 min

Distortion

< 0.5 %

Ripple

< 0.1 %

Display

5½ Digit LED Digital Display

Power Supply

230 VAC, 50 (60) Hz)

Power Consumption

< 180 VA

Operating Temperature

5°C to 35°C

Relative Humidity

80 %

Step Adjustment Of Output Signal

10 %FS, 1 %FS, 0.1 %FS, 0.05 %FS

Accessories

1 x Key Adjuster

1 x Power Cord
1 x Pair of Output Leads
2 x Fuse (2A)
1 x Data Cable for PC Connectivity
1 x Operation Manual

Dimension

147 x 480 x 480 mm (Approximate)

Weight (Including Battery)

70 gms (Approximate)

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) L x B x H

14.7 x 48 x 48

Unit Of Measurement

1 Piece

Weight

0.100 kg

Generic Name

Calibrator

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country Of Origin

India
