SKU # 1000122225

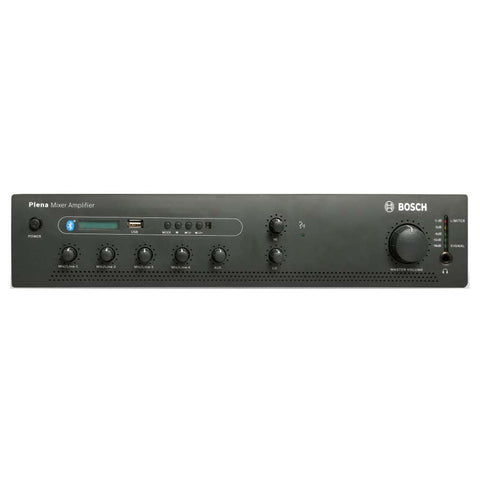

Bosch Mixer Amplifier With USB/Bluetooth 120W PLE-1ME240-3IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Plena Economy mixer amplifiers are professional public address units with modern state-of-the-art features
-
They are easy to use,taking the complexity away from the user and putting it where it belongs,inside the equipment
-
Providing crisp and clear announcements and music is as easy as turning on a radio Offering the essentials of public address in an affordable package
-
The range consists of three mixer amplifiers,which are available in 60,120 and 240W
-
The mixer amplifiers are equipped with an inbuilt music source,which can provide hours of uninterrupted music either through Bluetooth streaming or USB pen drive
-
They are supplied with an IR remote control for controlling the music source
-
The units feature four mic/line inputs,1 BGM and operate in a single zone
-
To ensure optimum performance,there are no moving parts,such as hard drives that can fail or wear out
-
The units have a limiter circuit and provide an audio insert feature to use as a pre/power amplifier
-
The VU meter gives an output level indication
-
Features
-
Inbuilt Bluetooth for audio streaming
-
Supports audio playback from USB pen drive
-
4 microphone/line inputs,plus music source input
-
Insert feature to use as a pre/power amplifier
-
Optional 2-tone chime generation for input 1
-
Functions
-
Power
-
The mixer amplifiers come in 240W output power
-
This power is directly available on 100V constant voltage connections and on a low impedance connection for a 4-ohm load
-
Moreover,the amplifiers have a separate 100V call-only output channel for addressing areas where only priority announcements are required
-
The call-only output can also be used for 3-wire remote volume control over ride
-
Inputs
-
All mic/line inputs can be switched between microphone level and line level sensitivity
-
The inputs are balanced,but can be used as unbalanced inputs
-
Phantom power can be switched-on to provide power to condenser microphones
-
Input Channel 1 Can Take Priority Over All Other Microphone,AUX & Music Inputs:
-
Input 1 can be activated by contact closure on the PTT (push to talk)
-
A 2-tone chime can be configured to precede an announcement
-
Music Source And AUX Input
-
The unit has an internal music source and AUX input option
-
The internal music source plays audio files from an USB pen drive (with a capacity of up to 32GB)or streamed through Bluetooth
-
The player will automatically search and play all playable audio tracks from the USB pen drive and has repeat/random/all modes
-
The following formats are supported: MP3 and WAV files with bit rates from 32 kbit/s
-
Personalized Settings
-
Another useful feature is to indicate preferred settings on the front panel by inserting colored pins at the preset levels of all knobs
-
One user can make use of silver pins to set the controls as per his convenience
-
A second user can make use of red pins to set the controls for his particular use
-
Output Status
-
An LED VU meter provides output indication
-
A headphone socket (6.3 mm),below the VU meter,provides the mixer output
-
For total reliability and ease of use,a limiter is integrated into the output stage to restrict output if the user applies excess signal
-
Controls And Indicators
-
Front Panel
-
Power-ON switch with LED indication
-
LCD display,USB port,UBS/BT keyboard functions with IR remote sensor
-
Four volume knobs for microphone inputs
-
Volume knob for AUX input
-
Knob for treble level
-
Knob for bass level
-
Master volume knob
-
LED VU meter for master output (LEDs for -18,-12,-6,-3,0 dB)
-
Headphone socket
-
Back Panel
-
Four inputs with DIP swicthes
-
AUX input
-
Pair of RCA connectors for Insert feature
-
100 V and 4-ohm loudspeaker outputs
-
A/c socket with fuse holder
Product Specification
|
Brand |
Bosch |
|
Product Type |
Amplifier |
|
Product Model |
PLE-1ME240-3IN |
|
Power Supply |
|
|
Voltage |
220-230 V, AC, 50 Hz |
|
Inrush current |
40 A |
|
Performance |
|
|
Frequency Response |
80 Hz to 18 kHz (+1/-3 dB @ -10 dB ref. rated output) |
|
Distortion |
<1% @ rated output power,1 kHz |
|
Bass Control |
Maximum. ± 8 dB |
|
Treble Control |
Maximum. ± 8 dB |
|
AUX Input |
|
|
Connector |
Cinch, stereo converted to mono |
|
Sensitivity |
200 mV to 300 mV |
|
Impedance |
22 kohm |
|
S/N (Flat At Maximum. Volume) |
≥70 dB |
|
Headroom |
> 25 dB |
|
Insert 1 x |
|
|
Connector |
RCA Cinch |
|
Sensitivity |
1 V |
|
Impedance |
>10 kohm |
|
Loudspeaker Output 100 V |
|
|
Connector |
Screw terminal, floating |
|
Maximum Rated |
360 W / 240 W |
|
Loudspeaker Output 4 ohm |
|
|
Connector |
Screw terminal, floating |
|
Maximum Rated |
31 V (240 W) |
|
Environmental |
|
|
Operating Temperature |
-5 °C to +45 °C |
|
Storage And Transport Temperature |
-40 °C to +70 °C |
|
Relative Humidity |
<95% |
|
Mounting |
Stand-alone, 19" rack |
|
Colour |
Charcoal |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) LxWxH |
29 x 43 x 10 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
10.5 kg |
|
Generic Name |
Amplifiers |
|
Manufacturer Details |
Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
|
Packer Details |
Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
|
Country Of Origin |
India |
