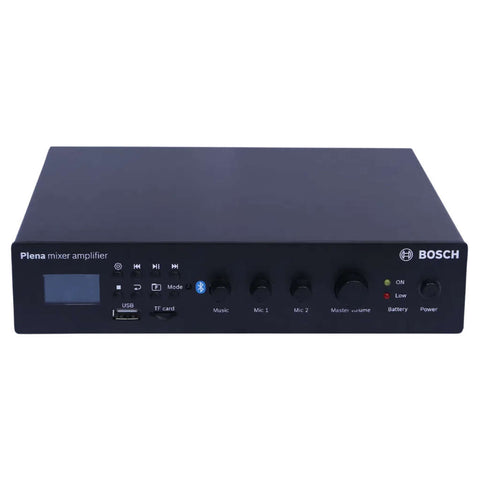

Bosch Mixer Portable Amplifier 30W PLE-1MP30-IN

Product Description

• The portable mixer amplifier is a professional public address unit with state-of-the-art features,which is built on class-D platform

• The amplifier is easy to use,taking the complexity away from the user and putting it where it belongs,inside the equipment

• Providing a crisp call or clear music is as easy as turning on a radio

• Offering the essentials of public address in an affordable package

• The portable mixer amplifier is designed to meet the requirements of the people who are on the go

• It has an inbuilt music player which can support audio streaming through Bluetooth or USB/TF card and also supports FM

• An IR remote control is supplied with the unit to control the music source

• The amplifier can be powered either with a 12/24V battery source or via a power adapter,which is supplied with the unit

• It is equipped with two microphone inputs,microphone input-2 comes with a phantom power supply option

• It also has an AUX input option for connecting external audio sources

• It also supports ducking,by which the background music automatically fades away when there is a live announcement from any of the microphone inputs and is automatically restored after the announcement,avoiding the manual intervention of the operator

• The ducking option is variable and it can be switched off based on the user requirements

• The processor in the amplifier monitors the speaker output line

• In case there is a short circuit or overload in the speaker output line,the amplifier isolates the amplification circuit and enters into self-protection mode and the user is informed with a fault indication

• The amplifier also monitors the battery status

• If the connected battery output goes low,the amplifier will detect this and the user will be informed with a battery low indication:If the battery output goes below the threshold value,the amplifier will isolate the output and protect the battery from draining any further

• The rear of the amplifier is equipped with a replaceable DC fuse for further protection

• Features

• Bluetooth,USB,FM and TF card slot for audio streaming

• Variable ducking option

• Supports 12/24V battery power supply

• Low battery indication

• Phantom power supply support

• Functions

• Power

• The mixer amplifier comes with 30 watt output power

• This power is directly available on a low impedance connection for a 4 ohm speaker load

• The amplifier has a ducking feature,which will suppress the background music whenever there is a live announcement from any of the microphone inputs and the ducking levels can be varied based on the requirements from 0 dB,-6 dB to -24 dB,and MUTE(off)

• The mixer amplifier can be connected to a higher capacity of power amplifiers with the help of line output

• The amplifier is designed to suit application areas like retail outlets,small cafes/restaurants,election rallies,promotion campaigns,yoga centers and gyms,hence being the right choice for small and medium installations

• Inputs

• The amplifier is equipped with two balanced microphone inputs

• The microphone input-2 is supported with phantom power supply with ON/OFF selection switch

• Microphone input-1 is supported with 6.3mm TRS connector and microphone input-2 is supported with a combo connector

• Music Source And AUX Input

• The unit has an inbuilt music source module and AUX input option

• The module streams audio from USB pen drive or from a TF card (supported capacity up to 32GB) or FM,the user can also stream the audio through Bluetooth

• Amplifier Status

• When the amplifier is powered on,the power LED ring lights up in green and this indicates that the amplifier is in normal operating condition

• If the LED ring changes to red,it indicates that the speaker output line is in short state or overloaded condition

• Once the speaker output line is rectified,the amplifier resumes and the LED ring status will change to green

• The amplifier also monitors the battery status

• If the amplifier is powered with a battery source,the battery ON indication LED will turn on

• If the battery voltage level goes low,a battery low indication LED will blink and the outputs will be reduced by 3 dB

• If the battery voltage levels goes further low - below the threshold values, the amplifier shall mute the outputs to prevent the battery from draining further

• This shall be indicated with the continuous glow of LED
