SKU # 1000122222
Bosch Mixer Amplifier With USB/Bluetooth 60W PLE-1ME060-3IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Plena Economy mixer amplifiers are professional public address units with modern state-of-the-art features
-
They are easy to use,taking the complexity away from the user and putting it where it belongs,inside the equipment
-
Providing crisp and clear announcements and music is as easy as turning on a radio Offering the essentials of public address in an affordable package
-
The range consists of three mixer amplifiers,which are available in 60,120 and 240W
-
The mixer amplifiers are equipped with an inbuilt music source,which can provide hours of uninterrupted music either through Bluetooth streaming or USB pen drive
-
They are supplied with an IR remote control for controlling the music source
-
The units feature four mic/line inputs,1 BGM and operate in a single zone
-
To ensure optimum performance,there are no moving parts,such as hard drives that can fail or wear out
-
The units have a limiter circuit and provide an audio insert feature to use as a pre/power amplifier
-
The VU meter gives an output level indication
-
Features
-
Inbuilt Bluetooth for audio streaming
-
Supports audio playback from USB pen drive
-
4 microphone/line inputs,plus music source input
-
Insert feature to use as a pre/power amplifier
-
Optional 2-tone chime generation for input 1
-
Functions
-
Power
-
The mixer amplifiers come in 60W output power
-
This power is directly available on 100V constant voltage connections and on a low impedance connection for a 4-ohm load
-
Moreover,the amplifiers have a separate 100V call-only output channel for addressing areas where only priority announcements are required
-
The call-only output can also be used for 3-wire remote volume control over ride
-
Inputs
-
All mic/line inputs can be switched between microphone level and line level sensitivity
-
The inputs are balanced,but can be used as unbalanced inputs
-
Phantom power can be switched-on to provide power to condenser microphones
-
Input Channel 1 Can Take Priority Over All Other Microphone,AUX & Music Inputs:
-
Input 1 can be activated by contact closure on the PTT (push to talk)
-
A 2-tone chime can be configured to precede an announcement
-
Music Source And AUX Input
-
The unit has an internal music source and AUX input option
-
The internal music source plays audio files from an USB pen drive (with a capacity of up to 32GB)or streamed through Bluetooth
-
The player will automatically search and play all playable audio tracks from the USB pen drive and has repeat/random/all modes
-
The following formats are supported: MP3 and WAV files with bit rates from 32 kbit/s
-
Personalized Settings
-
Another useful feature is to indicate preferred settings on the front panel by inserting colored pins at the preset levels of all knobs
-
One user can make use of silver pins to set the controls as per his convenience
-
A second user can make use of red pins to set the controls for his particular use
-
Output Status
-
An LED VU meter provides output indication
-
A headphone socket (6.3 mm),below the VU meter,provides the mixer output
-
For total reliability and ease of use,a limiter is integrated into the output stage to restrict output if the user applies excess signal
-
Controls And Indicators
-

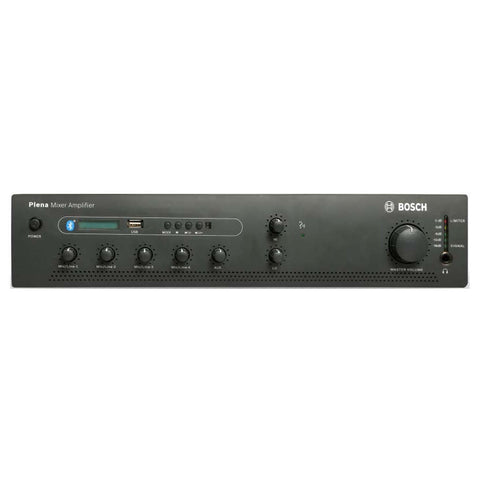

Front Panel
-
Power-ON switch with LED indication
-
LCD display,USB port,UBS/BT keyboard functions with IR remote sensor
-
Four volume knobs for microphone inputs
-
Volume knob for AUX input
-
Knob for treble level
-
Knob for bass level
-
Master volume knob
-
LED VU meter for master output (LEDs for -18,-12,-6,-3,0 dB)
-
Headphone socket
-
Back Panel
-
Four inputs with DIP swicthes
-
AUX input
-
Pair of RCA connectors for Insert feature
-
100 V and 4-ohm loudspeaker outputs
-
A/c socket with fuse holder
Product Specification
| Brand | Bosch |
| Product Type | Amplifier |
| Product Model | PLE-1ME060-3IN |
| Power Supply | |
| Voltage | 220-230 V, AC, 50 Hz |
| Inrush current | 10 A |
| Performance | |
| Frequency Response | 80 Hz to 18 kHz (+1/-3 dB @ -10 dB ref. rated output) |
| Distortion | <1% @ rated output power,1 kHz |
| Bass Control | Maximum. ± 8 dB |
| Treble Control | Maximum. ± 8 dB |
| AUX Input | |
| Connector | Cinch, stereo converted to mono |
| Sensitivity | 200 mV to 300 mV |
| Impedance | 22 kohm |
| S/N (Flat At Maximum. Volume) | ≥70 dB |
| Headroom | > 25 dB |
| Insert 1 x | |
| Connector /font> | RCA Cinch |
| Sensitivity | 1 V |
| Impedance | >10 kohm |
| Loudspeaker Output 100 V | |
| Connector | Screw terminal, floating |
| Maximum Rated | 90 W / 60 W |
| Loudspeaker Output 4 ohm | |
| Connector | Screw terminal, floating |
| Maximum Rated | 15.5 V (60 W) |
| Environmental | |
| Operating Temperature | -5 °C to +45 °C |
| Storage And Transport Temperature | -40 °C to +70 °C |
| Relative Humidity | <95% |
| Mounting | Stand-alone, 19" rack |
| Colour | Charcoal |
| Warranty | As Per Manufacturer Terms And Conditions |
Other Details
| Dimension (CM) LxWxH | 29 x 43 x 10 |
| Unit Of Measurement | 1 Piece |
| Weight | 6.5 kg |
| Generic Name | Amplifiers |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country Of Origin | India |
