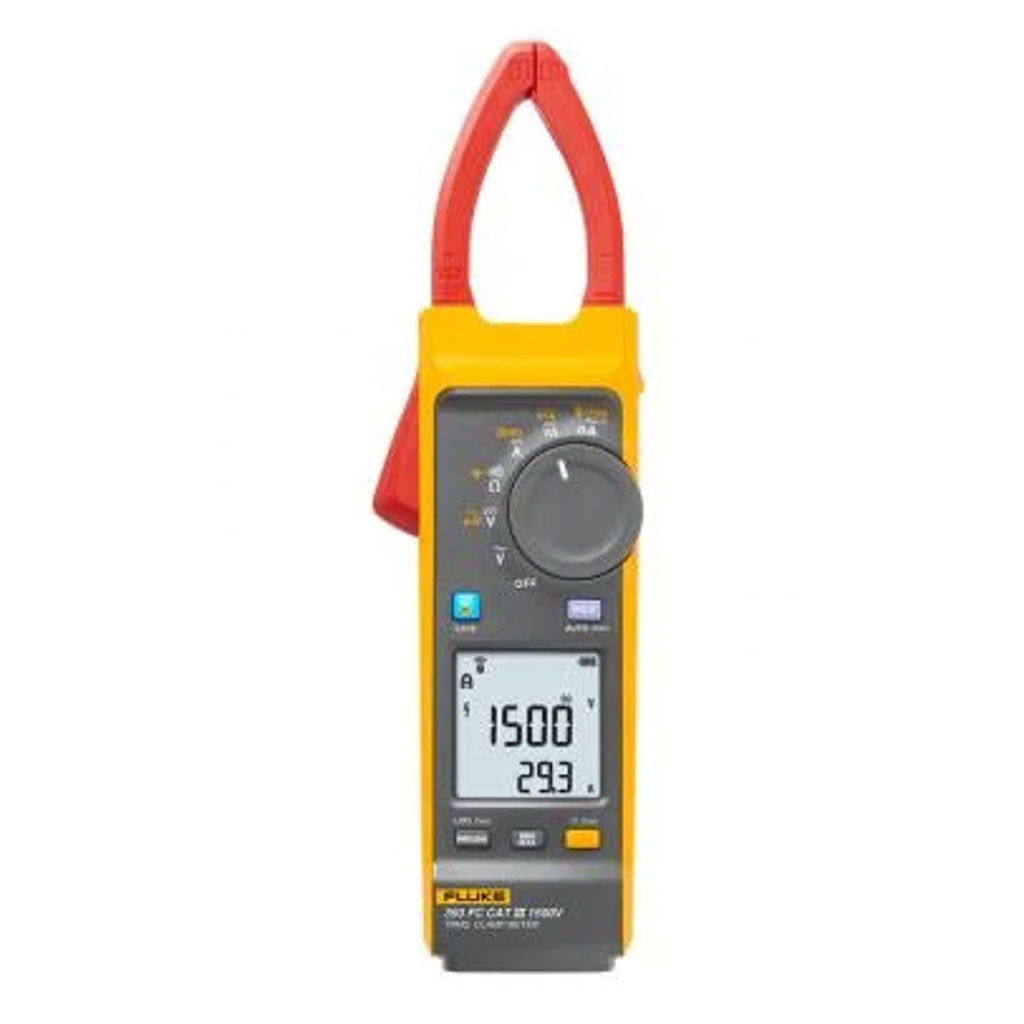

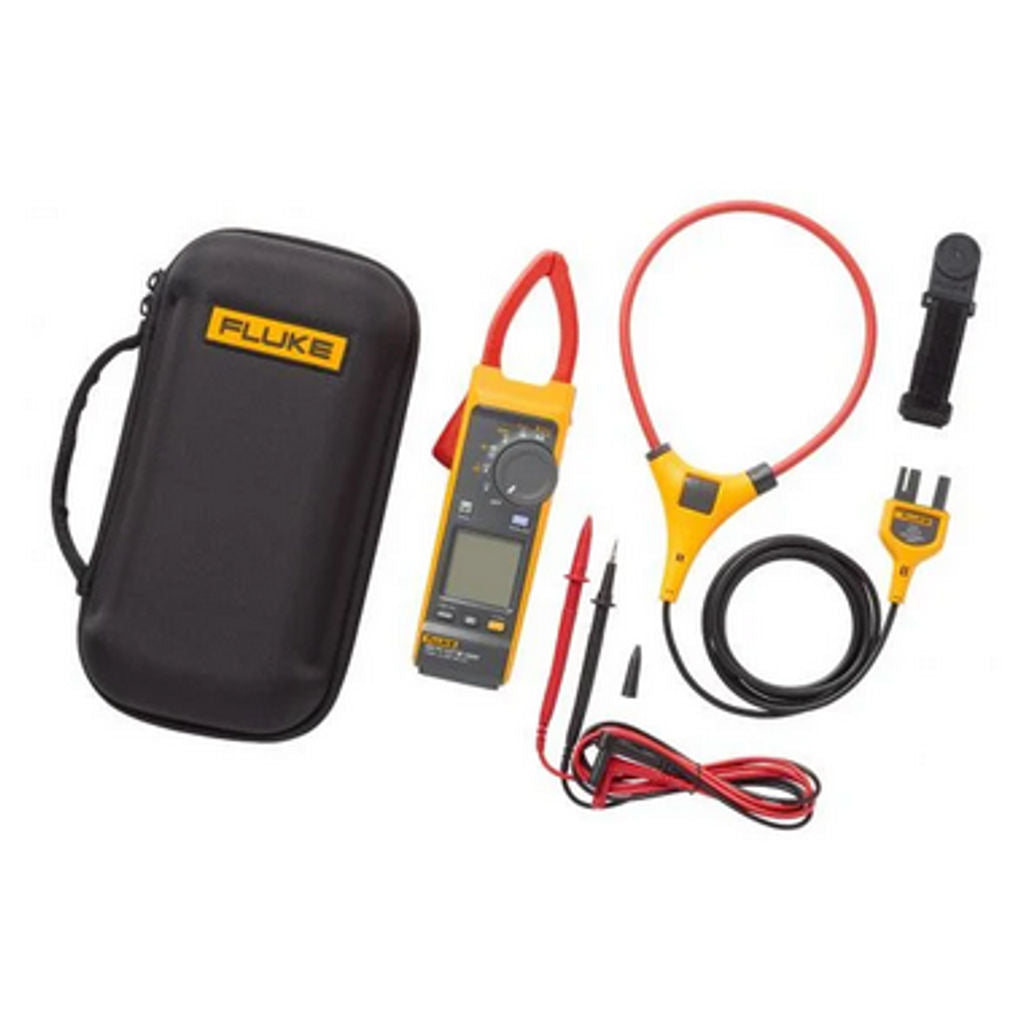

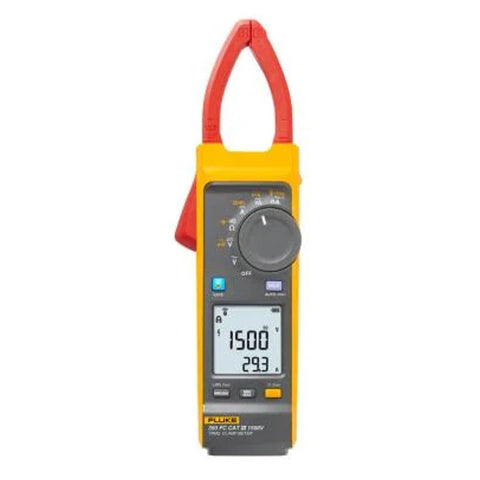

Fluke 393 FC Solar Clamp Meter CAT III 1500 V

Fluke 393 FC Solar Clamp Meter CAT III 1500 V


₹ 71,430.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Key Features

  • Measure safely with CAT III 1500 V rated clamp meter

  • Thin jaw for access to cables in crowded combiner boxes

  • Sturdy IP54 rated for outdoor use and solar installation

  • Work efficiently with dc power measurement, audio polarity and visual continuity

Product Specification

Brand

Fluke

Product Type

Clamp Meter

Product Model

393 FC

Maximum Voltage Between Any Terminal And
Earth Ground

1000 V AC
1500 V DC

Batteries

2 AA IEC LR6 alkaline

Display

Dual display with backlight

Automatic Power Off

20 minutes

Electrical Specifications

Accuracy

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to
28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of
Reading] + [Number of Least Significant Digits])

Temperature Coefficients

Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C

AC Current: Jaw

Range

999.9 A

Resolution

0.1 A

Accuracy

2 % + 5 digits (10 Hz to 100 Hz)
2.5 % + 5 digits (100 Hz to 500 Hz)

Crest Factor (50/60 Hz)

2.5 600.0 A,3.0 500.0 A,1.42 999.9 A
Add 2 % for C.F. >2

AC Current: Flexible Current Probe

Range

999.9 A,2500 A

Resolution

0.1 A (≤999.9 A),1 A (≤2500 A)

Accuracy

3 % RD + 5 digits (10 Hz to 500 Hz)

Crest Factor (50/60Hz)

2.5 1400 A,3.0 1100 A1.42 2500 AAdd 2 % for C.F. >2

DC Current

Range

999.9 A

Resolution

0.1 A

Accuracy

2 % RD + 5 digits[1] [1]When using the ZERO function to compensate for offsets

AC Voltage

Range

600.0 V 1000 V

Resolution

0.1 V (≤600.0 V) 1 V (≤1000 V)

Accuracy

1 % RD + 5 digits (20 Hz to 500 Hz)

DC Voltage

Range

600.0 V 1500 V

Resolution

0.1 V (≤600.0 V) 1 V (≤1500 V)

Accuracy

1 % RD + 5 digits

mV DC

Range

500.0 mV

Resolution

0.1 mV

Accuracy

1 % RD + 5 digits

Amps Frequency: Jaw

Range

5.0 Hz to 500.0 Hz

Resolution

0.1 Hz

Accuracy

0.5 % RD + 5 digits

Trigger Level

5 Hz to 10 Hz, ≥10 A ,10 Hz to 100 Hz, ≥5 A

100 Hz to 500 Hz, ≥10 A

Amps Frequency: Flexible Current Probe

Range

5.0 Hz to 500.0 Hz

Resolution

0.1 Hz

Accuracy

0.5 % RD + 5 digits

Trigger Level

5 Hz to 20 Hz, ≥25 A 20 Hz to 100 Hz, ≥20 A

100 Hz to 500 Hz, ≥25 A

Voltage Frequency

Range

5.0 Hz to 500.0 Hz

Resolution

0.1 Hz

Accuracy

0.5 % RD + 5 digits

Dimension (L x W x H)

281 x 84 x 49 mm

Weight

520 g

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

281 x 84 x 49

Unit Of Measurement

1 Piece

Weight

520 g

Generic Type

Clamp Meters

Manufacturer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Packer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Country Of Origin

India
