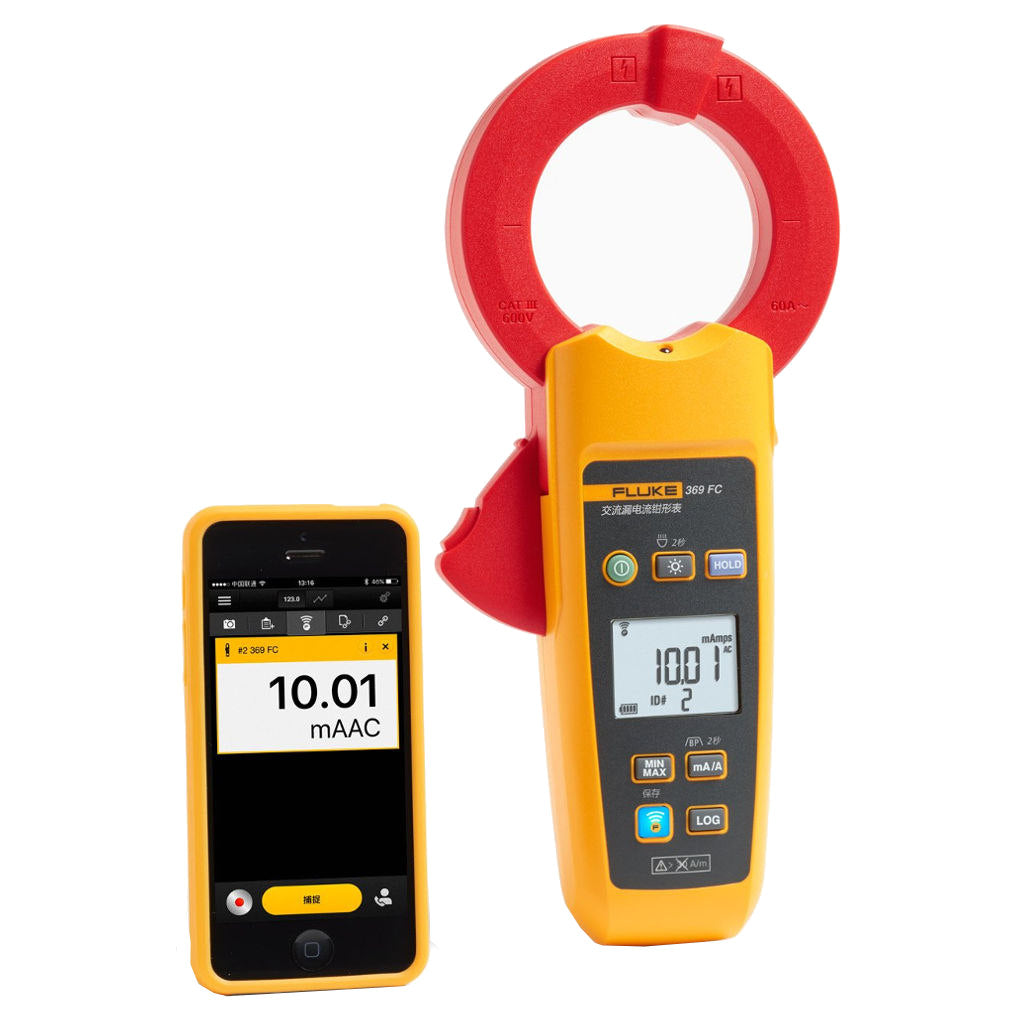

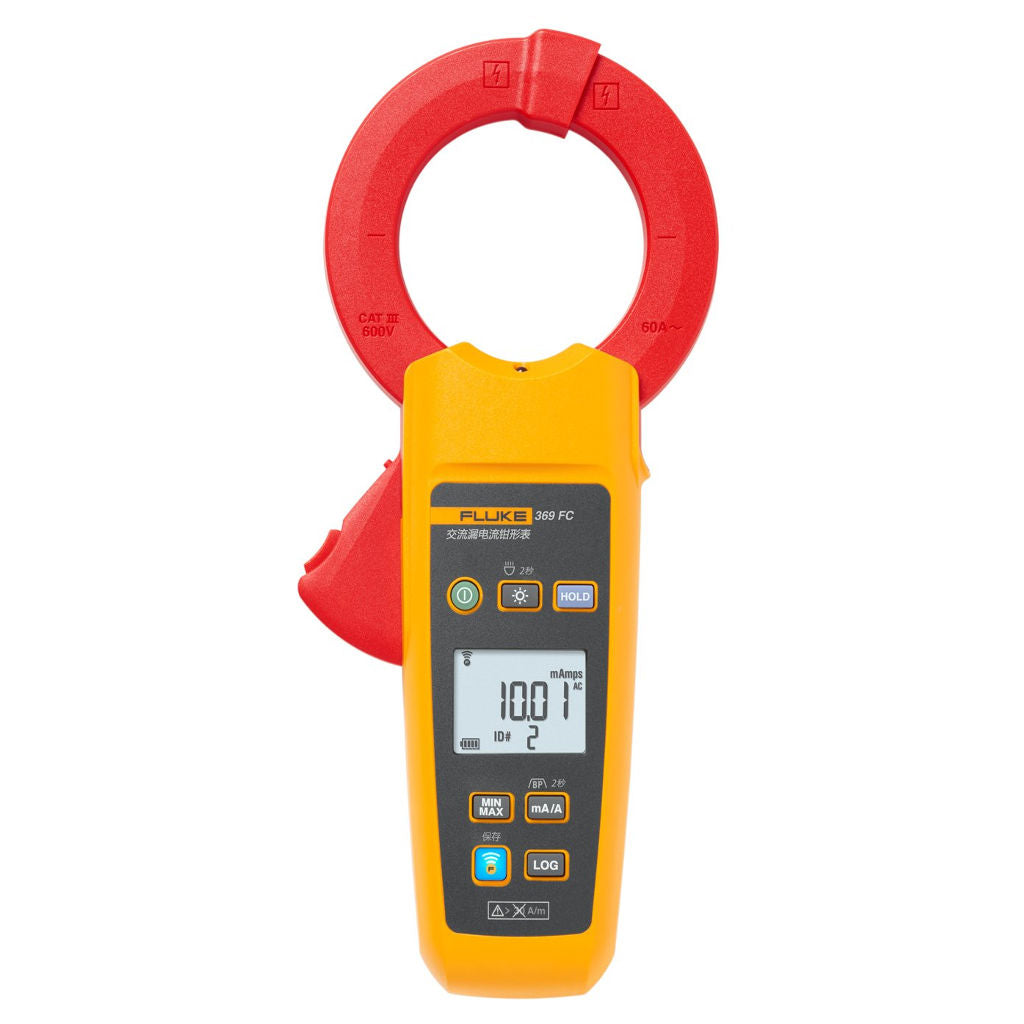

Fluke Leakage Current Clamp Meter 369 FC

Fluke Leakage Current Clamp Meter 369 FC


₹ 83,750.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms

  • 61 mm jaw opening

  • Highest resolution of 1 μA, measure up to 60 A

  • Selectable filter function removes unwanted noise

  • Max/Min/Average readings and hold function

  • Forward-facing LED worklight for use in dark wiring cabinets

  • Backlit display; auto backlight off and auto power off for extended battery life

  • CAT III 600V safety rating

Product Specification

Brand

Fluke

Product Type

Clamp Meter

Product Model

369 FC

Electrical Specifications

Measurement Function

Alternating Current

AC Ampere Range

3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A

Range Selection

mA / A: Manual Selection
3 mA / 30 mA / 300 mA: Automatic Selection
3 A / 30 A / 60 A: Automatic Selection

Range / Resolution

3 mA¹ / 0.001 mA

30 mA / 0.01 mA

300 mA / 0.1 mA

3 A / 0.001 A

30 A / 0.01 A

60 A / 0.1 A

Accuracy – Filter Activated (40 to 70 Hz), Filter Off (40 to 1 kHz)²

3 mA – 30 A
60 A

1% + 5 digits
2% + 5 digits

Frequency

40 Hz to 1 kHz

Crest Factor

3

After Calibration Accuracy Is Valid For One Year

Accuracy Is Expressed As ± (% of Reading + Digits)

Reference Conditions 23 ±5 °C and a Maximum Relative Humidity of 80%
¹The Minimum Value Is 10 μA rms
²Outside of The TC / °C 18 °C to 28 °C, 0.02 + 1

Physical

Display (LCD)

Digital Readout: 3300 Count

Display Refresh Rate

4 Times / Sec

Maximum Conductor Diameter

61 mm

Battery

2 AA, IEC LR6, NEDA 15A, Alkaline

Battery Life

Expected Battery Life, Without Using Backlight And Spotlight, Is More Than 150 Hours

Automatic Shut-Down

Meter Automatically Shuts Down After 15 Minutes Of Inactivity

Safety and Environmental Specifications

General Safety

IEC 61010-1: Pollution Degree 2

Measurement Safety

IEC 61010-2-032: CAT III 600 V / CAT IV 300 V

Operating Temperature

-10 °C to +50 °C

Storage Temperature

-40 °C to +60 °C

Operating Humidity

Non-condensing (<10 °C)

90% Relative Humidity (10 °C to 30 °C)

75% Relative Humidity (30 °Cto 40 °C)

45% Relative Humidity (40 °C to 50 °C)

Protection Class

IEC 60529: IP30 (Jaw Closed)

Operating Altitude

2000 m

Storage Altitude

12000 m

Current Sensor Action Category

IEC 61557-13: Class 1, ≤100 A / m

Dimensions

257 x 116 x 46 mm

Weight

600 g


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Clamp Meters

Manufacturer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Packer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Country of Origin

India
