| Brand | Hikvision |

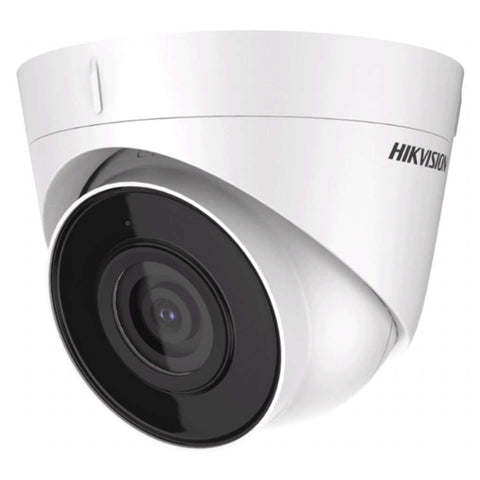

| Product Type | Turret Camera |
| Product Code | DS-2CD1323G0-IUF |
| General |
| Linkage Method | Upload to FTP/memory card, notify surveillance center, send email, trigger recording,
trigger capture |
| Camera Material | Metal & Plastic |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup And Operating
Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Web Client Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.120 |
| Power Consumption And Current | 12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, maximum. 6.5 W |
| Power Supply | 12 VDC ± 25%
PoE: 802.3af, Class 3 |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Camera |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360° |
| Lens |
| Focal Length & FOV | 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Illuminator |
| IR Wavelength | 850nm |
| IR Range | Up To 30 m |
| Video |
| Maximum Resolution | 1920 x 1080 |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Audio |
|
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps
(MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, 3D DNR |
| Interface |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-In Microphone | Yes |
| Hardware Reset | Yes |
| Event |
| Basic Event | Motion detection, video tampering alarm, exception |
| Approval |
|
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| Camera Dimension | Ø110 × 85.3 mm |
| Package Dimension | 150 x 150 x 141 mm |
| Camera Weight | Approx. 320 g (0.7 lb.) |
| With Package Weight | Approx. 556 g (1.2 lb.) |
| Warranty | As Per Manufacturer Terms and Condition |
