Out of Stock!
SKU # 1000083003

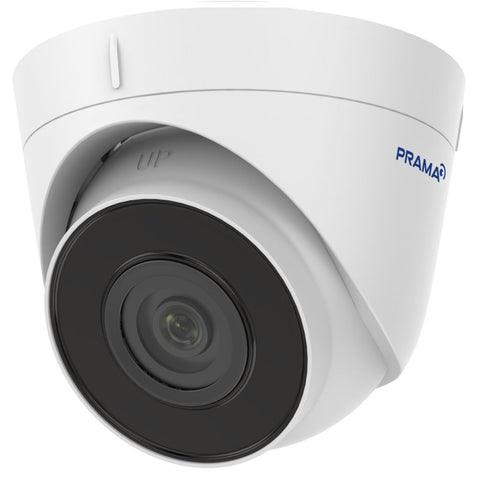

Prama IR Fixed Turret Network Camera 2 MP PT-NC123D3-I(DE)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality imaging with 2 MP resolution
-
Efficient H.265+ compression technology
-
Clear imaging against strong back light due to DWDR technology
-
Water and dust resistant (IP67)
-
EXIR 2.0: advanced infrared technology with long IR range
Product Specification
Brand |
Prama |
Product Code |
PT-NC123D3-I(DE) |
Product Type |
Turret Network Camera |
Camera | |
Image Sensor |
1/2.7-inch Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100, 000 s |
Slow Shutter |
Yes |
Wide Dynamic Range |
Digital WDR |
Day & Night |
IR Cut Filter |
Angle Adjustment |
Pan: 0° to 360° Tilt: 0° to 75° Rotate: 0° to 360° |
Lens | |
Focal Length & FOV |
2.8 mm, Horizontal FOV 112.1°, Vertical FOV 60.0°, Diagonal FOV 132.2° 4 mm, Horizontal FOV 90.2°, Vertical FOV 48.6°, Diagonal FOV 107.6° |
Lens Mount |
M12 |
Focus |
Fixed |
Aperture |
F2.0 |
Illuminator | |
IR Wavelength |
850 nm |
IR Range |
Up to 30 m |
Video | |
Max. Resolution |
1920 × 1080 |
Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720) |
Sub-Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) |
Video Compression |
Main Stream: H.265/H.264 |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
H.264+ |
Main Stream Supports |
H.265+ |
Main Stream Supports |
Region of Interest (ROI) |
1 Fixed Region For Main Stream |
Network | |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
Simultaneous Live View |
Up to 6 Channels |
API |
ISAPI |
User/Host |
Up to 32 Users. 3 Levels: Administrator, Operator And User |
Web Browser |
Plug-In Required Live View: IE 10+ |
Image | |
Image Settings |
Saturation, Brightness, Contrast, Sharpness, AGC, White Balance Adjustable By Client Software Or Web Browser |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, 3D DNR |
Interface | |
Ethernet Interface |
1 RJ45 10 M/100 M Self-adaptive ethernet port |
Event | |
Basic Event |
Motion Detection, Video Tampering Alarm, Exception |
General | |
Power Consumption and Current |
Current 12 VDC, 0.4 A, max. 5 W |
Power Supply |
12 VDC ± 2
% |
Power Interface |
Ø5.5 mm Coaxial Power Plug |
Protection |
IP67 (IEC 60529-2013) |
Linkage Method |
Upload to FTP, Notify Surveillance Center, Send Email |
Camera Material |
Metal & Plastic |
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (Non-Condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (Non-Condensing) |
Web Client Language |
English |
General Function |
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, Ip Address Filter |
Firmware Version |
V5.5.120 |
Warranty |
5 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Turret Camera |
Manufacturer Details |
STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
Packer Details |
STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444 |
Country of Origin |
India |
