SKU # 1000095121

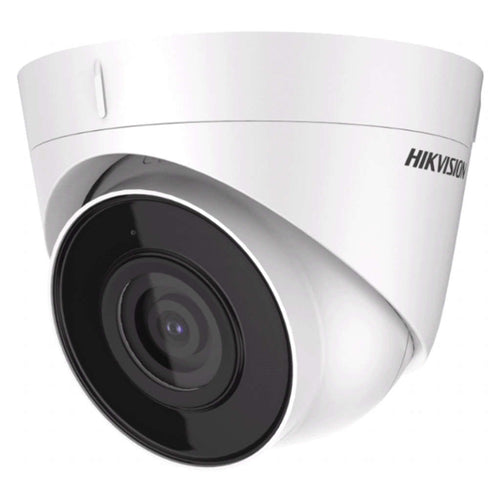

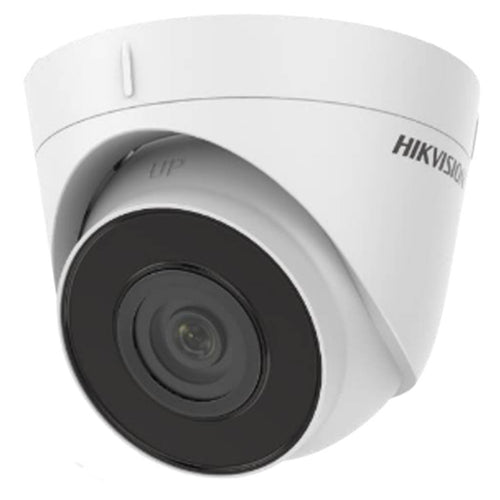

Hikvision Fixed Turret Network Camera 4MP DS-2CD1343G0-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Efficient H.265+ compression technology
-
Clear imaging even with strong back lighting due to 120 dBWDR
-
Water and dust resistant (IP67)
-
EXIR 2.0: advanced infrared technology with long IR range
-
-UF: Built-in microphone for real-time audio security
-
Support up to 256 GB SD card storage
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Turret Camera |
|
Product Code |
DS-2CD1343G0-I |
|
Camera |
|
|
Image Sensor |
1/3" progressive scan CMOS |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0 AGC ON) B/W: 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100 000 s |
|
Slow Shutter |
Yes |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360° tilt: 0° to 75° rotate: 0° to 360° |
|
Lens |
|
|
Focal Length & Fov |
2.8 mm horizontal FOV 98.0° vertical FOV 53.1° diagonal FOV 114.7° 4 mm horizontal FOV 78.7° vertical FOV 43.1° diagonal FOV 92.3° |
|
Lens Mount |
M12 |
|
Focus |
Fixed |
|
Aperture |
F2.0 |
|
Illuminator |
|
|
IR Wavelength |
850 nm |
|
IR Range |
Up to 30 m |
|
Video |
|
|
Max. Resolution |
2560 × 1440 |
|
Main Stream |
50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296 1920 × 1080 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296 1920 × 1080 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (640 × 480 640 × 360) 60 Hz: 30 fps (640 × 480 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main stream supports |
|
H.265+ |
Main stream supports |
|
Region Of Interest (ROI) |
1 fixed region for main stream |
|
Audio |
|
|
Audio Compression |
-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Bit Rate |
-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
|
Audio Sampling Rate |
-UF: 8 kHz/16 kHz |
|
Environment Noise Filtering |
-UF: Yes |
|
Network |
|
|
Protocols |
TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP PPPoE NTP UPnPTM SMTP SNMP IGMP 802.1X QoS IPv6 Bonjour IPv4 UDP SSL/TLS |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface ISAPI |
|
User/Host |
Up to 32 users. 3 levels: administrator operator and user |
|
Client |
iVMS-4200 Hik-Connect |
|
Web Browser |
Plug-in requIRed live view: IE 10+ Plug-in free live view: Chrome 57.0+ FIRefox 52.0+ Local service: Chrome 57.0+ FIRefox 52.0+ |
|
Image |
|
|
Image Settings |
Saturation brightness contrast sharpness AGC white balance adjustable by client software or web browser |
|
Day/Night Switch |
Auto Schedule Day Night |
|
Image Enhancement |
BLC 3D DNR |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-Board Storage |
-UF: Built-in memory card slot support microSD card up to 256 GB |
|
Built-In Microphone |
-UF: Yes |
|
Hardware Reset |
-UF: Yes |
|
Event |
|
|
Basic Event |
Motion detection video tampering exception |
|
General |
|
|
Linkage Method |
Upload to FTP notify surveillance center send email -UF also supports: upload to memory card trigger recording trigger capture |
|
Camera Material |
Metal & Plastic |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Web Client Language |
English Ukrainian |
|
General Function |
Anti-flicker heartbeat mIRror password protection privacy mask watermark IP address filter |
|
Firmware Version |
V5.5.120 |
|
Power Consumption And Current |
12 VDC 0.4 A max. 5 W PoE: (802.3af 36 V to 57 V) 0.2 A to 0.15 A max. 6.5 W |
|
Power Supply |
12 VDC ± 25% PoE: 802.3af Class 3 |
|
Power Interface |
Ø 5.5 mm coaxial power plug |
|
Approval |
|
|
Emc |
FCC SDoC (47 CFR Part 15 Subpart B); CE-EMC (EN 55032: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6 2016); KC (KN 32: 2015 KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013 IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013 IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013) |
|
Camera Dimension |
Ø 110 mm × 85.3 mm (Ø 4.3" × 3.4") |
|
Camera Weight |
Approx. 320 g (0.7 lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Turret Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
