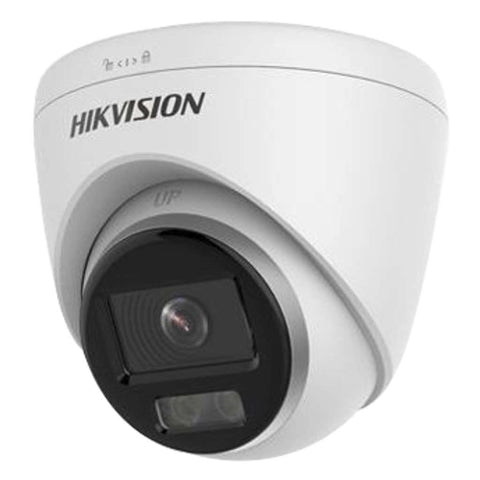

| Brand | Hikvision |
| Product Type | Turret Camera |
| Product Code | DS-2CD1347G0-L |
| General |
| Linkage Method | Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger capture |
| Software Reset | Reset via web browser and client software |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Startup And Operating
Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Web Client Language | English and Ukraine |
| General Function | Anti- flicker, heartbeat, mirror, privacy masks, password reset via e-mail |
| Power Consumption And Current | 12 VDC, 0.37 A, maximum. 4.5 W
PoE (802.3af, 36 V to 57 V), 0.13 A to 0.08 A, maximum. 4.5 W |
| Power Supply | 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Camera |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.001 Lux (F1.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| P/N | P/N |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Lens |
| Lens Type & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 95° |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Aperture | F1.0 |
| Depth Of Focus | 2.8 mm: 3.1 m to ∞
4 mm: 3.6 m to ∞ |
| Illuminator |
| Smart Supplement Light | Yes |
| Supplement Light | White |
| White Light Range | Up to 30m |
| Video |
| Main Stream | 50Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Network |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,
security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF |
| Client | iVMS-4200, Hik-Connect , ik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Interface |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) |
| Basic Event | Motion detection, exception (Illegal Login) |
| Approval |
|
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252 (Part1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Ingression protection: IP67 (IEC 60529-2013) |
| Camera Dimension | Ø 110 x 100.8 mm |
| Package Dimension | 150 x 150 x 141 mm |
| Camera Weight | Approx. 350 g (0.8 lb.) |
| With Package Weight | Approx. 556 g (1.2 lb.) |
| Warranty | As Per Manufacturer Terms and Condition |
