48 hours

SKU # 1000067465

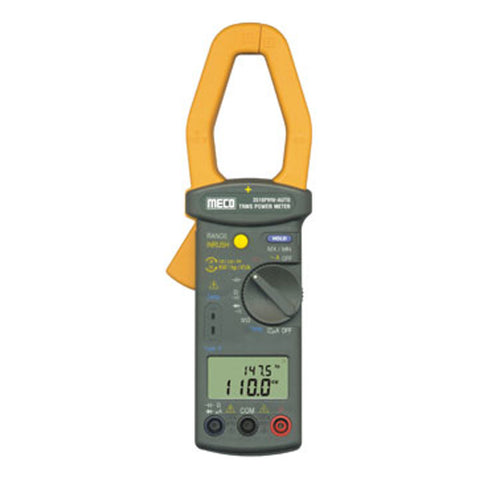

Meco Clamp-On TRMS Power Meter Autoranging With Dual Display 1000A 600kW 3510PHW AUTO

Meco Clamp-On TRMS Power Meter Autoranging With Dual Display 1000A 600kW 3510PHW AUTO

Visit the Meco Store

₹ 13,620.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 4 Digit LCD, 9999 Count, Autoranging

  • Data Hold, Auto Power Off

  • Dual Display KW + HP, KW + PF, KW + KVAR, KVA + Φ, V + A, A + Hz, V + Hz

  • Cable of Diameter upto 43mm / Busbar upto 65mm x 16mm

  • Applications

  • Check Current drawn in Motors and Compressors

  • Use MAX / MIN / REC in Temperature Mode to Assess Efficiency

  • Test Run / Start Capacitors

  • Analyze Temperature Data with the Aid of the Time Stamp

  • Resistance upto 100 MΩ

  • Check for Energized Circuits & Balance Loads

  • Capture Motor In - Rush Current Readings

  • Determine Peak Power Demand Periods

  • Ideal for Electrical Audit of Heating, Ventilation & Aircon Systems (HVAC)

  • To Identify Low Voltage Control Signal

  • To Identify Power Sources

  • 1Φ & 3Φ (3p3w / 3p4w) Power Analyzer

  • Evaluate Electrical Contacts

  • Verify the Stability of Voltage

  • Check Motor Run / Start Capacitor Values

  • Check 3 Φ Phase Sequence

Product Specification

Brand

Meco

Product Model

3510PHW AUTO

Product Type

Power Meter

Numerical Dual Display

4 Digit 9999 Count LCD

Low Battery Indication

+ _ is displayed

Power Source

9V Battery x 1

Battery Life

32 hours approx.

Sampling Rate

2.5 times/sec. (Digital Display)

Operating Temperature And Humidity Storage Temperature And Humidity

1 times/6 sec. (on KW, KVA) 00C to 500C (320F to 1220F)

RH < 80% non-condensing -100C to 600C (140F to 1400F)

RH < 70% non-condensing

Jaw Opening

Cable Dia 43mm (max.) Bus Bar 16mm x 65mm

Auto Power Off Time

Approx. 30 minutes

Temperature Coefficient

0.1 x (specified accuracy) / 0C (<18 or>28 0 C, <64 or >820 F)

Accessories

Carrying Case, Battery (installed), One Alligator Clip, Test Leads, K Type Thermocouple (Upto 2600C), Instruction Manual

Dimensions

247 x 90 x 40mm

Weight

425gms Including Battery (approx.)

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Power Meter

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country of Origin

India
