SKU # 1000080025

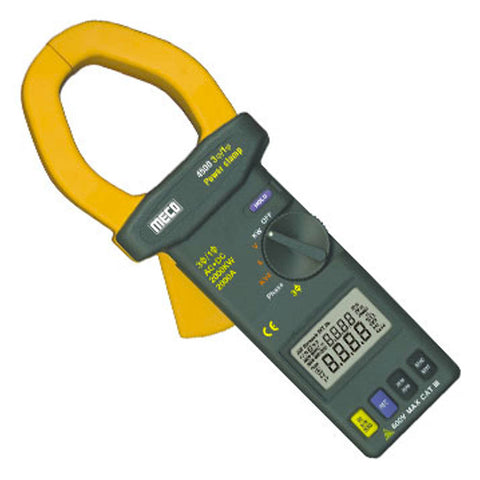

Meco Clamp-On TRMS Power Meter For AC/DC Power Measurement 3f/1f 4500

Meco Clamp-On TRMS Power Meter For AC/DC Power Measurement 3f/1f 4500

Visit the Meco Store

₹ 50,000.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • MECO 4W, Frequency / Period, 500 Clamp-On Power Meter does this with absolute ease and reliability

  • Be it 3f4W, Frequency / Period, W, 3f3W, balanced or unbalanced system

  • Needless to add, it also works for 1f2W and 1f3W systems

  • Handy and ideal for on-site measurement, energy audit, data recording, Q.C. testing and

  • maintenance of the entire plant

  • Features

  • 3 f 4W, 3 f 3 W, 3 f Balanced, 1 f 2 W, 1 f 3 W

  • AC + DC 2000 KW (3 f ), 1200 KW (1 f )

  • Dual display KW + PF,

  • KVA+KVAR, V+A, V+Hz, A+Hz

  • Phase Angle Measurment (±90 0 ), Phase

  • Sequence Indication (R,S,T)

  • AC 600V, DC 600V, AC+DC 2000A

  • Power Factor

  • AC/DC Auto Detection

  • TRMS Values

  • Memory of 4W, Frequency / Period, records

  • Auto Range

Product Specification

Brand

Meco

Product Type

Power Meter

Product Model

4500

Jaw Opening

Cable Dia.55mm. (approx.) Bus Bar 65 (D) x 24mm

Battery Type

9V, Eveready type 216 or eq.

Display

2x4 Digits Dual Display LCD

Range Selection

Auto

Overload Indication

OL

Power Consumption

25mA (approx.)

Low Battery Indication

B

Sampling Time

0.5 sec. (V and A) 1.6 sec. (W)

Operating Temperature

40 to 500C

Operating Humidity

<85% RH

Storage Temperature

-200C to 600C

Storage Humidity

<75% RH

Accessories

Carry Bag x 1, Users Manual x 1, Battery (Installed) x 1, Test Lead x 1 Pair Crocodile Test Lead x 1 Pair

Dimensions

271 x 112 x 46 mm

Weight

650gms Battery Including (approx.)

Weight

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Power Meter

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country of Origin

India
