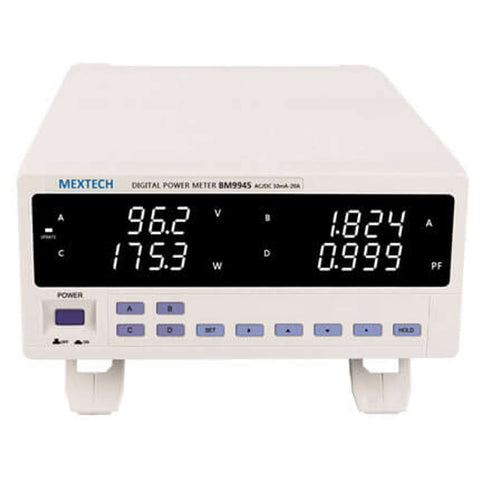

Mextech Digital Power Meter 5V-600V AC BM9945

Mextech Digital Power Meter 5V-600V AC BM9945

Visit the Mextech Store

₹ 42,840.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Application

  • Power Consumption Test for Household Appliance

  • Power Consumption Test for the Air-condition

  • Power Consumption for Light Products

  • Power Consumption Test for LED Lamps

  • Test for Electrical Machine and Motor

  • Test for Chargers and Switching Power Supply

  • Features

  • Can test for AC Signals, DC DC Signal

  • LED Digital screen Display: Voltage, Current, Power, Power Factor / Frequency

  • All measurements are TRMS

  • Automatic Range

  • On the outside with a high noise immunity

  • Support data lock

  • On the current and power limit alarm, especially for a large number of test production line

  • For the production line test: Lighting Products, Home Appliances, Electrical Products, Power Products and other

  • Wiring Simplex

  • Display LED Digital screen

  • Measurement items Voltage V, current A, active power W, power factor PF, frequency Hz

Product Specification

Brand

Mextech

Product Type

Power Meter

Product Model

BM9945

Display

LED Digital Screen

Connection

Single Phase

Measuring Items

Voltage V, Current A, Active Power W, Power Factor PF, Frequency Hz

Measuring Form

True RMS

Voltage Range

5V ~ 600V AC / DC (Range Automatic Switching)

Peak Voltage

700V AC / DC

Minimum Test Voltage

5V AC / DC (Less Than 5V Can Be Customized)

Current Range

10mA ~ 20A AC / DC (Automatic Range Switching)

Peak Current

48A AC

Minimum Testing Current

10mA AC / DC (Less Than 10mA can be customized)

Power Range

0.1W-12kW

Power Factor Range

0.001 to 1.000

Note: For DC models, the power factor PF displays 1.000

Calculation Method

Watts (W) ÷ [Voltage (V) × Current (A)] = Power factor (PF)

Frequency Range

45-65Hz

Note: DC signal, the frequency is not displayed

Basic Accuracy

± (0.4% of reading + 0.1% of range + 1 word)

Measuring Speed

5 times / second

Input Resistance

> 1 MΩ , (all voltage files)

Power Supply

85 to 265 V AC 50/60 Hz, 85 to 265 V DC

Communication Interface

Optional RS232 or 485, Relay output

Including Components

Power cord, Manual

Dimension (W X H X D)

355 x 223 x 112mm

Weight

1.7 kg

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

35.5 x 22.3 x 11.2

Unit of Measurement

1 Piece

Weight

1.7 kg

Generic Type

Power Meter

Manufacturer Details

Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India

Packer Details

Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India

Country of Origin

India
